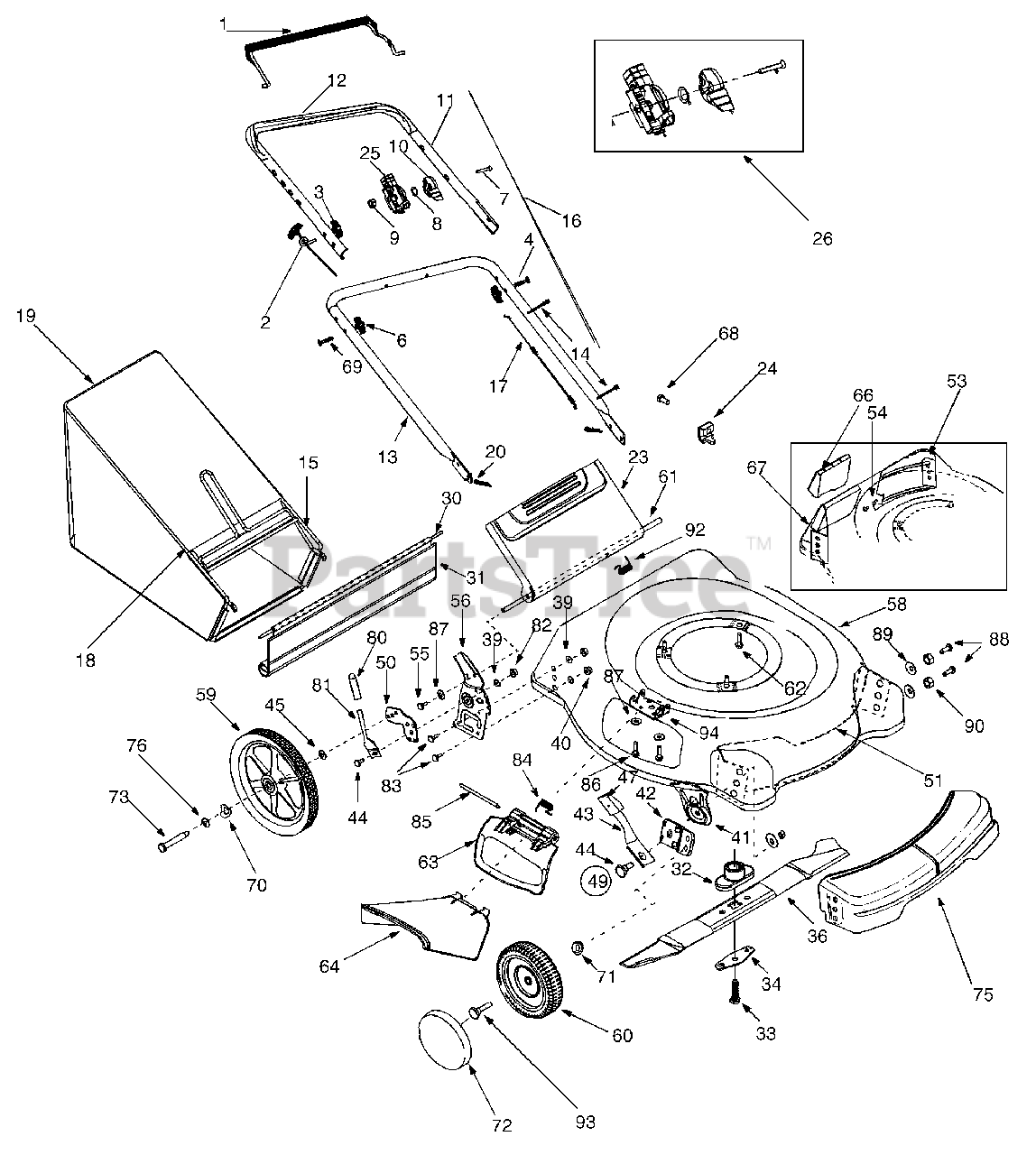

11A-549C401 - Yard-Man Walk-Behind Mower (1998) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Assembly
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

6

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

7

MTD 710-0605

Oval C-Sunk Screw

$4.49

$

In Stock, only 2 left!

0

8

MTD 736-0501

Spring Washer
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 712-0324

Hex Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

10

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

11

MTD 749-0438B

Upper Handle
(Superseded to 749-0438D-0637)

Note: (Code N)

Variations

MTD 749-0438B-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 720-0295

Foam Grip

Note: (Code N)

$33.99

$

Usually ships in 3-6 days

0

13

MTD 749-0907A

Lower Handle
(Superseded to 749-0907B)

Note: (Code N)

Variations

MTD 749-0907A-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 747-0995

Rear Catcher Frame
(Superseded to 747-0995A-0637)

Variations

MTD 747-0995-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

16

MTD 746-0554

Control Cable—40"
(Superseded to 946-0554)

$21.99

$

In Stock, only 4 left!

0

17

MTD 746-0841

Throttle Control Wire-60"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

18

MTD 747-0995

Grass Bag: Front Frame
(Superseded to 747-0995A-0637)

Note: (Code N)

Variations

MTD 747-0995-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$84.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

19

MTD 664-0084

Grass Bag Ass'y w/o logo
(Superseded to 964-0084)

$193.99

$

Usually ships in 3-6 days

0

20

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

?21

Engine

$

$

Not available

23

MTD 782-7599A

Grass Bag Door
(Superseded to 782-7599B-0637)

Note: (Code N)

Variations

MTD 782-7599A-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

$

$

24

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

25

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

26

MTD 811-00303

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Includes ref. #7, 8, 9, 10 & 25)

$36.99

$

In Stock, only 1 left!

0

?29

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

30

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

32

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

MTD 748-0376B

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5"

$3.99

$

In Stock, only 2 left!

0

34

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

36

MTD 742-0741

Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

MTD 736-0356

Bell Washer .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

41

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

MTD 732-0404

Spring Lever: Front Wheel
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

MTD 738-0507B

Shoulder Bolt .5" Dia. x .357"

$4.49

$

In Stock, Qty 20+

0

45

MTD 736-0105

Bell Washer.38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

47

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

49

MTD 14578

Height Adj. Assembly Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Assembly Comp.-L.H.
(Superseded to 753-06761)

Note: (not shown)

$65.99

$

In Stock, Qty 7

0

50

MTD 17488

Pivot Bar—R.H.
(Superseded to 17488A)

$15.99

$

In Stock, only 3 left!

0

MTD 17489

Pivot Bar—L.H.
(Superseded to 17489A)

Note: (not shown)

$15.99

$

In Stock, only 1 left!

0

51

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

53

MTD 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

MTD 710-1017

Torx Mach. AB-Tap Scr.

$8.49

$

In Stock, Qty 9

0

55

MTD 710-0549

Hex Screw TT

$

$

Currently unavailable

56

MTD 682-3058

Handle Bracket Assembly-R.H.
(Superseded to 753-05922)

Note: (Code N)

$114.99

$

Usually ships in 3-6 days

0

?57

MTD 682-3059

Handle Bracket Assembly-L.H.
(Superseded to 753-05922)

Note: (Code N)

$114.99

$

Usually ships in 3-6 days

0

58

MTD 782-0047-0665

Deck

$

$

Not available

59

MTD 734-1860

Rear Wheel Ass'y.
(Superseded to 734-1860A)

Note: (Code N)

$

$

Not available

60

MTD 734-1818

Front Wheel Ass'y.
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

61

MTD 747-0996

Chute Door Pivot Rod

Note: (Code N)

$32.99

$

Usually ships in 3-6 days

0

62

MTD 710-0654A

Sems Screw TT 3/8-16 x 1

$4.49

$

In Stock, Qty 20+

0

63

MTD 682-7000

Mulching Plug (Hinged)

$

$

Not available

64

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

?65

MTD 710-0599

Hex Hd. TT Screw 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

66

MTD 782-5007

Rear Mulch Plug
(Superseded to 782-5007C)

Variations

MTD 782-5007-0637

Mulching Baffle Plug - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

67

MTD 782-5004

Rear Mulch Baffle
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

68

MTD 710-1237

Hex Washer Hd. Screw

Note: (B&S)

$4.49

$

Usually ships in 3-6 days

0

69

MTD 710-1174

Carr. Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

70

MTD 736-0182

Wave Washer

Note: (Code N)

$4.49

$

In Stock, Qty 7

0

71

MTD 736-0105

Spring Washer

$4.49

$

In Stock, Qty 20+

0

72

MTD 731-1426

Hub Cap: Radial Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

73

MTD 738-0481

Rear Axle Bolt
(Superseded to 938-0481A)

Note: (Code N)

$6.99

$

In Stock, Qty 18

0

75

MTD 731-1506

Front End Cover: Yellow
(Superseded to 731-1506A)

$

$

Not available

76

MTD 736-0456

Flat Washer
(Superseded to 936-0456)

Note: (Code N)

$4.99

$

In Stock, Qty 9

0

80

MTD 732-0866

Spring Lever: Rear Wheel

Note: (Code N)

$

$

Not available

MTD 751B224437

Muffler Guard

Note: (not included)

$

$

Not available

MTD 710-1268

#10-16:3/8 Screw

Note: (not included)

$4.49

$

In Stock, Qty 20+

0

81

MTD 732-0866

Height Adj. Lever

$

$

Not available

82

MTD 712-3005

Hex Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

83

UNKNOWN

$

$

Not available

84

MTD 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

85

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

86

MTD 710-0599

Tapp Scr. 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

87

MTD 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

88

MTD 710-0216

Hex Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

89

MTD 736-0331

Bell Washer .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

90

MTD 712-0798

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 12

0

92

MTD 732-0809

Torsion Spring
(Superseded to 932-0809)

$18.99

$

Usually ships in 3-6 days

0

93

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

94

MTD 782-7006

Hinged Mounting Bracket

Note: (Includes ref. # 7, 8, 9, 10, & 25) *

Variations

MTD 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0
