11A-518N302 - Yard Machines Walk-Behind Mower (1997) (Builder's Square) General Assembly Parts Diagram

Walk-Behind Mower

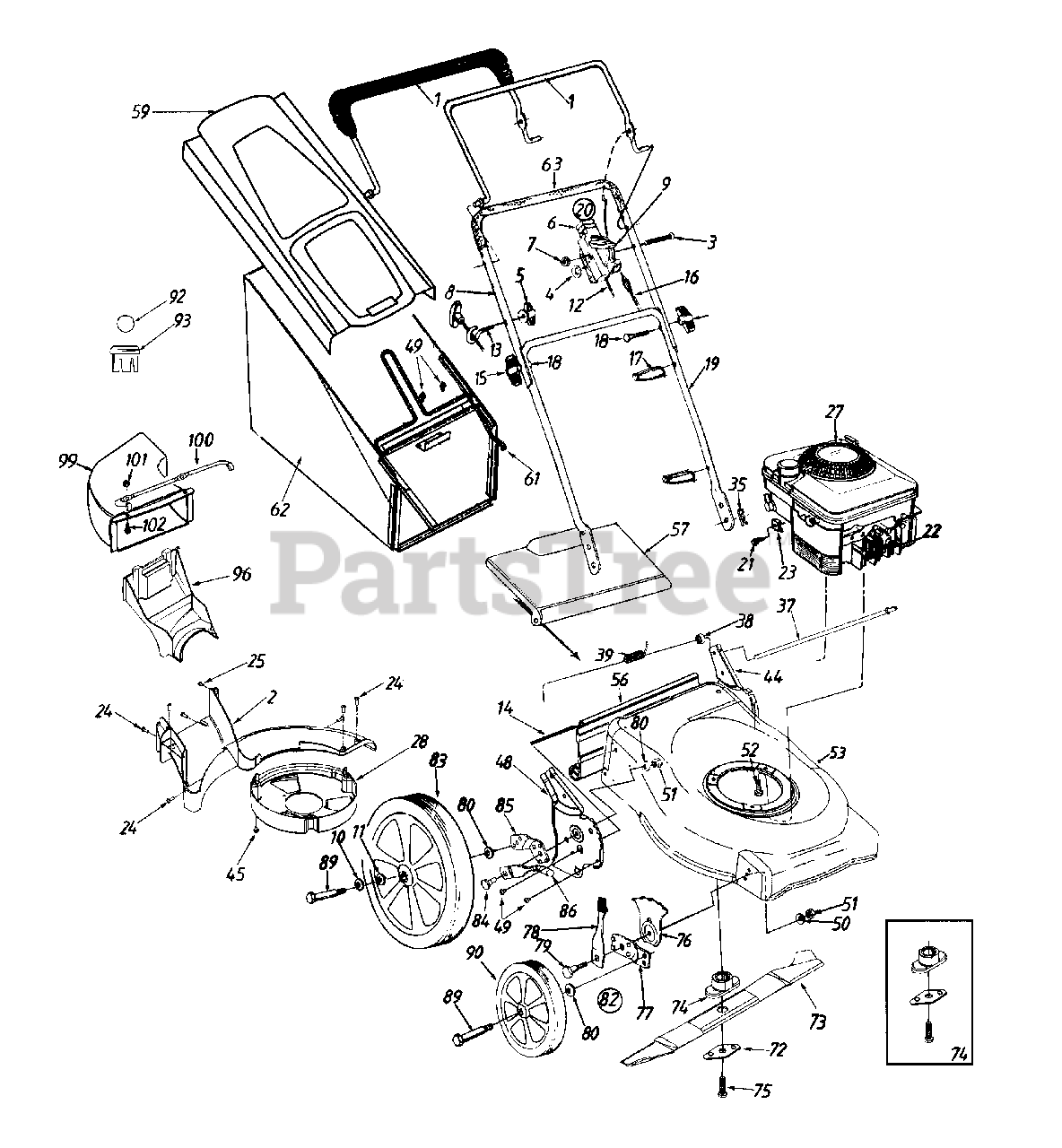

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y
(Superseded to 747-0824B-0637)

Note: (Std)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

2

MTD 731-1639

Baffle

Note: New Part

$

$

Not available

3

MTD 710-0605

Oval C-Sunk Mach.-Scr.

$4.49

$

In Stock, only 2 left!

0

4

MTD 736-0501

Spr. Wash..66"I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

5

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

6

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

7

MTD 712-0324

Hex L-Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

8

MTD 749-0438B

Upper Handle
(Superseded to 749-0438D-0637)

Variations

MTD 749-0438B-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

9

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 3 left!

0

10

MTD 736-0456

Wash. 1/2" I.D.
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

11

MTD 736-0182

Spring Washer

$4.49

$

In Stock, Qty 7

0

12

MTD 746-0841

Throttle Control Wire-60"
(Superseded to 946-0674A)

Note: (326F)

$18.99

$

In Stock, only 1 left!

0

13

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

14

MTD 732-0700

Wire-47"Lg.
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

15

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 8

0

16

MTD 746-0551

Control Cable 43"
(Superseded to 946-0551)

$24.99

$

In Stock, only 1 left!

0

17

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

19

MTD 749-0907

Lower Handle
(Superseded to 749-0907B)

Variations

MTD 749-0907-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

20

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 3,4,6,7,9)

$36.99

$

In Stock, only 1 left!

0

21

MTD 710-1237

Hex Self-Tap Scr. #10-32 x .62" L

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Sem Scr.#10-32 x .3 (Tec.)

$

$

Not available

22

MTD 735-0639

Spark Plug Boot

$

$

Not available

23

MTD 751B213146

Cable Clamp (B&S)
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

MTD 7510007775

Cable Clamp (Tec.)
(Superseded to TC-27793)

$1.99

$

In Stock, only 2 left!

0

24

MTD 710-1220

Screw H.L. 12-24

$4.99

$

In Stock, only 4 left!

0

25

MTD 710-0351

Screw Mach. B Tapp.

$4.49

$

Usually ships in 3-6 days

0

27

Engine

$

$

Not available

28

MTD 731-1714

Belt Guard
(Superseded to 731-1714A)

Note: New Part

$

$

Not available

35

MTD 714-0104

Int. Cotter Pin 5/15" Dia.

$4.49

$

In Stock, Qty 20+

0

37

MTD 747-0922

Pivot Rod

Note: New Part

$

$

Not available

38

MTD 750-1068

Spacer .385 I.D.
(Superseded to 950-1068)

Note: New Part

$

$

Not available

39

MTD 732-0809

Torsion Spring L.H.
(Superseded to 932-0809)

Note: New Part

$18.99

$

Usually ships in 3-6 days

0

44

MTD 782-3033

Handle Brkt. Ass'y - L.H..

Variations

MTD 782-3033-0483

No Longer Available BRACKET HA - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-3033-0638

No Longer Available BRACKET HA - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

45

MTD 710-0653

Screw, Tap 1/4-20

$4.49

$

In Stock, Qty 7

0

?47

MTD 712-0400

U-Nut
(Superseded to 912-0400)

$5.99

$

Usually ships in 3-6 days

0

48

MTD 782-3034

Handle Brkt. Ass'y- R.H.

Note: New Part

Variations

MTD 782-3034-0483

No Longer Available BRACKET HA - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-3034-0638

No Longer Available BRACKET HA - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-3034-0665

No Longer Available -0638 BR - YARDMAN GREEN (0665)

$

$

Not available

$

$

49

MTD 710-1348

Screw AB 1/4-20

$6.99

$

In Stock, only 3 left!

0

50

MTD 736-0356

Bell-Wash. .39"I.D.
(Superseded to 936-0356)

$

$

Not available

51

MTD 712-0798

Hex Nut 3/8-16 Trd.

$4.49

$

In Stock, Qty 6

0

52

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, Qty 20+

0

53

MTD 682-0038

21" Deck Ass'y

Note: New Part

Variations

MTD 682-0038-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 682-0038-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0038-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

$

$

56

MTD 731-1236

Rear Flap 17.77 Lg.
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

57

MTD 782-7599

Rear Chute Deflector
(Superseded to 782-7599B-0637)

Note: New Part

Variations

MTD 782-7599-0637

DOOR-GRASSBAG 21" - POWDER BLACK (0637)

$

$

Not available

MTD 782-7599-0638

DOOR-GRASSBAG 21" - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

?58

MTD 782-9050

Brkt. Mtg. Grassbag- Black
(Superseded to 782-9050-0637)

Note: New Part

Variations

MTD 782-9050-0637

BRACKET-MTG - POWDER BLACK (0637)

$

$

Not available

$

$

59

MTD 731-1882

Hdtop Bag Cover

Note: New Part

$

$

Not available

MTD 631-0065

Hdtop Bag Cover w/MTD Logo

Note: New Part

$

$

Not available

MTD 631-0064

Hdtop Bag Cover w/Flo Ind.
(Superseded to 631-0065)

Note: New Part

$

$

Not available

MTD 731-1221

Hdtop Bag Cvr w/Flo Ind./MTD Logo
(Superseded to 631-0065)

Note: New Part

$

$

Not available

61

MTD 747-0919

Catcher Frame
(Superseded to 747-0919-0637)

Note: New Part

Variations

MTD 747-0919-0637

FRAME GRASSCTCHR - POWDER BLACK (0637)

$111.99

$

Usually ships in 3-6 days

0

$111.99

$

Usually ships in 3-6 days

0

62

MTD 664-0080

Grass Bag - Black

Note: New Part

$

$

Not available

MTD 664-0079

Grassbag- Soft top w/MTD Logo

Note: New Part

$

$

Not available

63

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

72

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

73

MTD 742-0741

21" Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

MTD 742-0641

21" Std. Blade w/Star
(Superseded to 942-0641)

$29.99

$

Usually ships in 3-6 days

0

74

MTD 753-0609

Blade Adaptor Kit w/Star

$40.99

$

In Stock, Qty 12

0

75

MTD 710-1257

Hex Bolt 3/8-24x 2.5 Lg.

$7.99

$

In Stock, only 1 left!

0

76

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

77

MTD 15262B

Pivot Bar- Fr.

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

78

MTD 14832

Spring Lever Ass'y w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

79

MTD 738-0507B

Shld. Bolt .50" Dia x .357"

$4.49

$

In Stock, Qty 20+

0

80

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

82

MTD 14578

Height Adj. Ass'y Comp. R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

83

Wheel Ass'y Comp. - Rear

$

$

Not available

84

MTD 738-0507B

Shoulder Screw 1/2" Dia. x .434"

$4.49

$

In Stock, Qty 20+

0

85

MTD 17488

Pivot Bar R.H.
(Superseded to 17488A)

$15.99

$

In Stock, only 3 left!

0

MTD 17489

Pivot Bar L.H.(Not Shown)
(Superseded to 17489A)

$15.99

$

In Stock, only 1 left!

0

86

MTD 720-0230

Foam Grip

$7.49

$

In Stock, only 3 left!

0

?87

MTD 732-0806

Spring Lever

Note: New Part

$

$

Not available

89

MTD 738-0102

Axle Bolt Front

$9.99

$

In Stock, Qty 10

0

MTD 738-0481

Shld. Bolt .5 Dia. x 2.62"
(Superseded to 938-0481A)

$6.99

$

In Stock, Qty 18

0

90

Wheel Ass'y Comp.- Front

$

$

Not available

?91

Hub Cap

Note: (Not Illustrated)

$

$

Not available

92

MTD 731-1644

Ball - Flo Indicator

Note: New Part

$

$

Not available

93

MTD 731-1738

Housing- Flo Indicator
(Superseded to 931-0060)

Note: New Part

$

$

Not available

96

MTD 731-1685

Mulch Plug
(Superseded to 931-1685)

Note: New Part

$

$

Not available

99

MTD 731-1461

Chute Deflector
(Superseded to 931-1461)

$

$

Not available

100

MTD 747-0958

Chute Mounting Rod

Note: New Part

$

$

Not available

101

MTD 712-0324

Hex L-Nut 1/4-20 tHD.

$3.99

$

In Stock, Qty 16

0

102

MTD 710-0286

Mach. Scr. 1/4-20 x .5" Lg

$4.49

$

Usually ships in 3-6 days

0

MTD 777-1584

Label - Danger - Cut Finger
(Superseded to 977S30145)

Note: New Part

$10.99

$

In Stock, only 1 left!

0

MTD 777-3540A

Comb. Label - Danger / 1-800

Note: New Part

$

$

Currently unavailable

MTD 190-119-000

Grasscatcher

Note: Attachment

$

$

Currently unavailable

MTD 190-120-000

Mulch Kit

Note: Attachment

$

$

Currently unavailable

MTD 190-100-000

Side Discharge Kit

Note: Attachment

$

$

Not available

MTD 731-0981A

Rad. Spoke Gray Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

MTD 720-0249

Euro Gray Hub Cap
(Superseded to 920-0249)

$

$

Not available

MTD 734-1781

Front wheels w/o Bearings (Gray - No Hub Cap) Bar Tread

$32.99

$

In Stock, Qty 7

0

MTD 734-1821

Front wheel w/o Bearings (Beige) Bar Tread
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

MTD 734-1841

Front Wheel w/Plastic Brg. (Aero Gray) Bar Tread
(Superseded to 934-1841)

$

$

Not available

MTD 741-0262

Plastic Bearing

$8.49

$

Usually ships in 3-6 days

0

MTD 734-1268

Front Wheel w/Ball Bearing (Gray) "T" Tread

$71.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Ball Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

MTD 724-1661

Rear Wheel, 8 Spoke Chrome w/ Ball Brgs.

$

$

Currently unavailable

MTD 734-1842

Rear Wheel, Aero Gray with Ball Brgs

$

$

Not available

MTD 741-0484

Ball Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0
