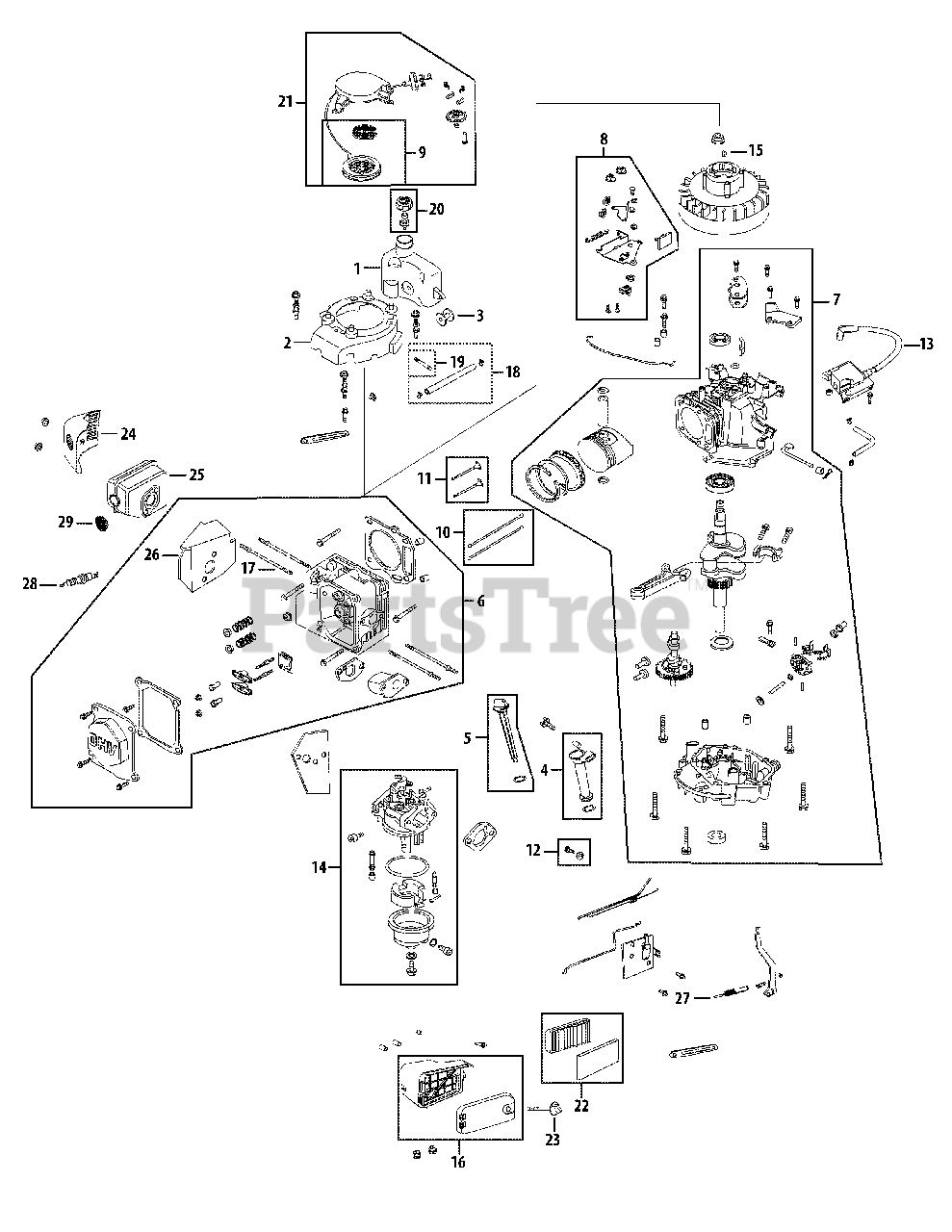

11A-50M9000 - Yard Machines Walk-Behind Mower (2008) Engine Assembly Parts Diagram

Walk-Behind Mower

Engine Assembly Parts Diagram

  • Title

1

MTD 751-10337

Fuel Tank
(Superseded to 951-10337)

$60.99

$

Usually ships in 3-6 days

0

2

MTD 751-10875

Flywheel Shroud
(Superseded to 951-10875)

$46.99

$

Usually ships in 3-6 days

0

3

MTD 751-10335

Rubber Fuel Tank Mounting Washer
(Superseded to 951-10335)

$5.99

$

Usually ships in 3-6 days

0

4

MTD 751-10334

Oil Filler Tube Assembly
(Superseded to 951-10334)

$22.99

$

Usually ships in 3-6 days

0

5

MTD 751-10333

Dipstick Assembly
(Superseded to 951-10333)

$17.99

$

Usually ships in 3-6 days

0

6

MTD 751-10877

Cylinder Head Complete
(Superseded to 951-10877A)

$

$

Not available

7

MTD 751-10878

Short Block Assembly
(Superseded to 951-11789)

$341.99

$

Usually ships in 3-6 days

0

8

MTD 751-10320

Stop Switch and Brake Assembly
(Superseded to 951-10320A)

$39.99

$

Usually ships in 3-6 days

0

9

MTD 751-10319

Recoil Spring and Pulley Assembly
(Superseded to 951-10319)

$47.99

$

In Stock, only 3 left!

0

10

MTD 751-10314

Push Rod Kit
(Superseded to 951-10314)

$17.99

$

Usually ships in 3-6 days

0

11

MTD 751-10313

Valve Kit
(Superseded to 951-10313)

$65.99

$

In Stock, only 1 left!

0

12

MTD 751-10370

Oil Drain Plug and Washer Assembly
(Superseded to 951-10370)

$9.49

$

Usually ships in 3-6 days

0

13

MTD 751-10367

Ignition Coil
(Superseded to 951-10367)

$103.99

$

Usually ships in 3-6 days

0

14

MTD 751-10873

Carburetor Assembly
(Superseded to 951-10873)

$90.99

$

In Stock, only 1 left!

0

15

MTD 751-10307

Flywheel Key
(Superseded to 951-10307)

$2.49

$

Usually ships in 3-6 days

0

16

MTD 751-10876

Air Cleaner Housing Assembly Complete
(Superseded to 951-10876)

$38.99

$

In Stock, only 2 left!

0

17

MTD 751-10304

Muer Stud Assembly
(Superseded to 710-05093)

$4.49

$

In Stock, only 2 left!

0

18

MTD 751-10363

Fuel Line Kit
(Superseded to 951-10363)

Note: Inc. hoses, clamps & filter

$28.99

$

In Stock, only 2 left!

0

19

MTD 751-10358

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

20

MTD 751-10300

Fuel Cap Assembly
(Superseded to 951-10300)

$11.99

$

In Stock, only 1 left!

0

21

MTD 751-10299

Recoil Starter Assembly
(Superseded to 951-10299A)

$69.99

$

In Stock, Qty 7

0

22

MTD 751-10298

Air Cleaner Kit
(Superseded to 951-10298)

$17.99

$

In Stock, Qty 20+

0

23

MTD 751-10297

Air Cleaner Thumb Screw
(Superseded to 951-10297)

$5.99

$

In Stock, only 2 left!

0

24

MTD 751-10404

Muffler Guard
(Superseded to 951-10404)

$

$

Not available

25

MTD 751-10403

Muffler
(Superseded to 951-10403)

$82.99

$

Usually ships in 3-6 days

0

26

MTD 751-10402

Muffler Gasket /Heat Shield
(Superseded to 951-10402)

$19.99

$

Usually ships in 3-6 days

0

27

MTD 751-10387

Governor Return Spring
(Superseded to 951-10387)

$7.49

$

In Stock, Qty 10

0

28

MTD 751-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

29

MTD 751-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

MTD 752Z5P65MO

Engine Complete

Note: Not Shown

$

$

Currently unavailable

MTD 751-10874

Carburetor Kit Major
(Superseded to 951-10874A)

Note: Not Shown

$

$

Not available

MTD 751-10846

Cylinder Head Service Kit
(Superseded to 951-10846A)

Note: Not Shown

$19.99

$

Usually ships in 3-6 days

0

MTD 751-10409

Gasket Kit Complete
(Superseded to 951-10409A)

Note: Not Shown

$62.99

$

Usually ships in 3-6 days

0

MTD 751-10410

Gasket Kit External
(Superseded to 951-10410A)

Note: Not Shown

$

$

Not available
