11A-508N099 - Craftsman Walk-Behind Mower (1998) (Sears) Front Axle Assembly & Height Adjuster Parts Diagram

Walk-Behind Mower

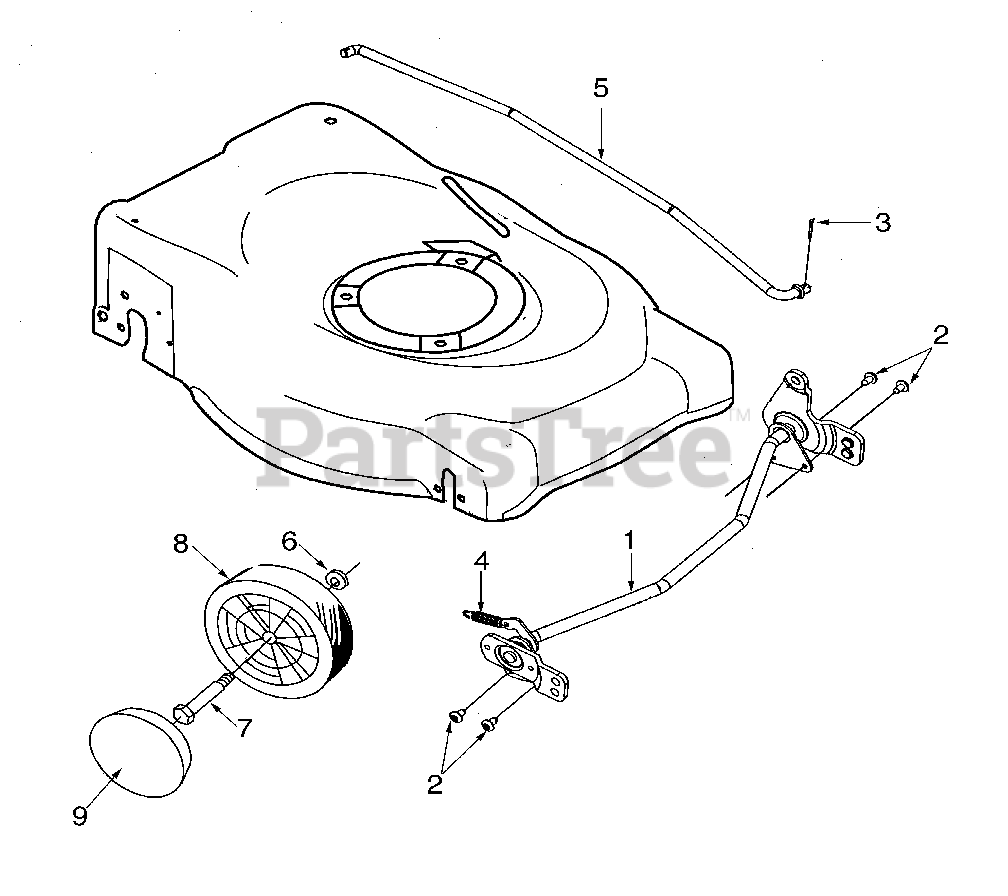

Front Axle Assembly & Height Adjuster Parts Diagram

  • Title

1

MTD 611-0060

Axle Ass'y, Frt.
(Superseded to 611-0060-0637)

Variations

MTD 611-0060-0637

AXLE: ASM. FRONT - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

2

MTD 710-1348

AB Pan Scr. 1/4-14 x .50 Lg.

$6.99

$

In Stock, only 3 left!

0

3

MTD 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

4

MTD 732-0820

Ext. Spring
(Superseded to 932-0820)

$11.99

$

Usually ships in 3-6 days

0

5

MTD 747-0920

Adj. Rod

$

$

Not available

6

MTD 736-0105

Spr. Washer

$4.49

$

In Stock, Qty 20+

0

7

MTD 738-0102

Shl. Bolt .498 x 1.445 3/8-16

$9.99

$

In Stock, Qty 10

0

8

Wheel Ass'y - Complete

$

$

Not available

MTD 634-0020

Front/Rear Wheel 8" x 1.75" Bar Tread

$39.99

$

In Stock, Qty 6

0

MTD 734-1268

Front Wheel 8" x 1.75" "T" Tread

Note: (Uses bearing 741-0484)

$71.99

$

Usually ships in 3-6 days

0

MTD 734-1412

Rear Wheel 8" x 1.75" "T" Tread

$

$

Not available

MTD 734-1790

Front Wheel 8" x 2" "S" Wave (Yellow Rim)

Note: (Uses bearing 741-0484)

$

$

Not available

MTD 734-1791

Rear Wheel 8" x 2" "S" Wave (Yellow Rim)

$

$

Not available

MTD 734-1821

Front Wheel 8" x 2" "S" Wave
(Superseded to 753-08093)

Note: (Uses bearing 741-0484)

$45.99

$

In Stock, Qty 5

0

MTD 734-1826

Front/Rear Wheel 8" x 2" "S" Wave

$33.99

$

In Stock, only 2 left!

0

MTD 734-1819

Front Wheel 8" x 2" Linked Tread
(Superseded to 734-1978)

Note: (Uses bearing 741-0484)

$48.99

$

Usually ships in 3-6 days

0

MTD 734-1824

Rear Wheel 8" x 2" Linked Tread
(Superseded to 734-1979)

$31.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Front Wheel Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

9

Hub Cap

$

$

Not available

MTD 720-0249

Gray (3-1/2" Dia.)
(Superseded to 920-0249)

$

$

Not available

MTD 731-0354

Black (4-1/4" Dia.)

$

$

Not available

MTD 731-0355A

Gray (4-1/4" Dia.)

$

$

Not available

MTD 731-0981A

Gray (5-1/2" Dia.)
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

MTD 731-1426

Yellow (5-1/2" Dia.)
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0
