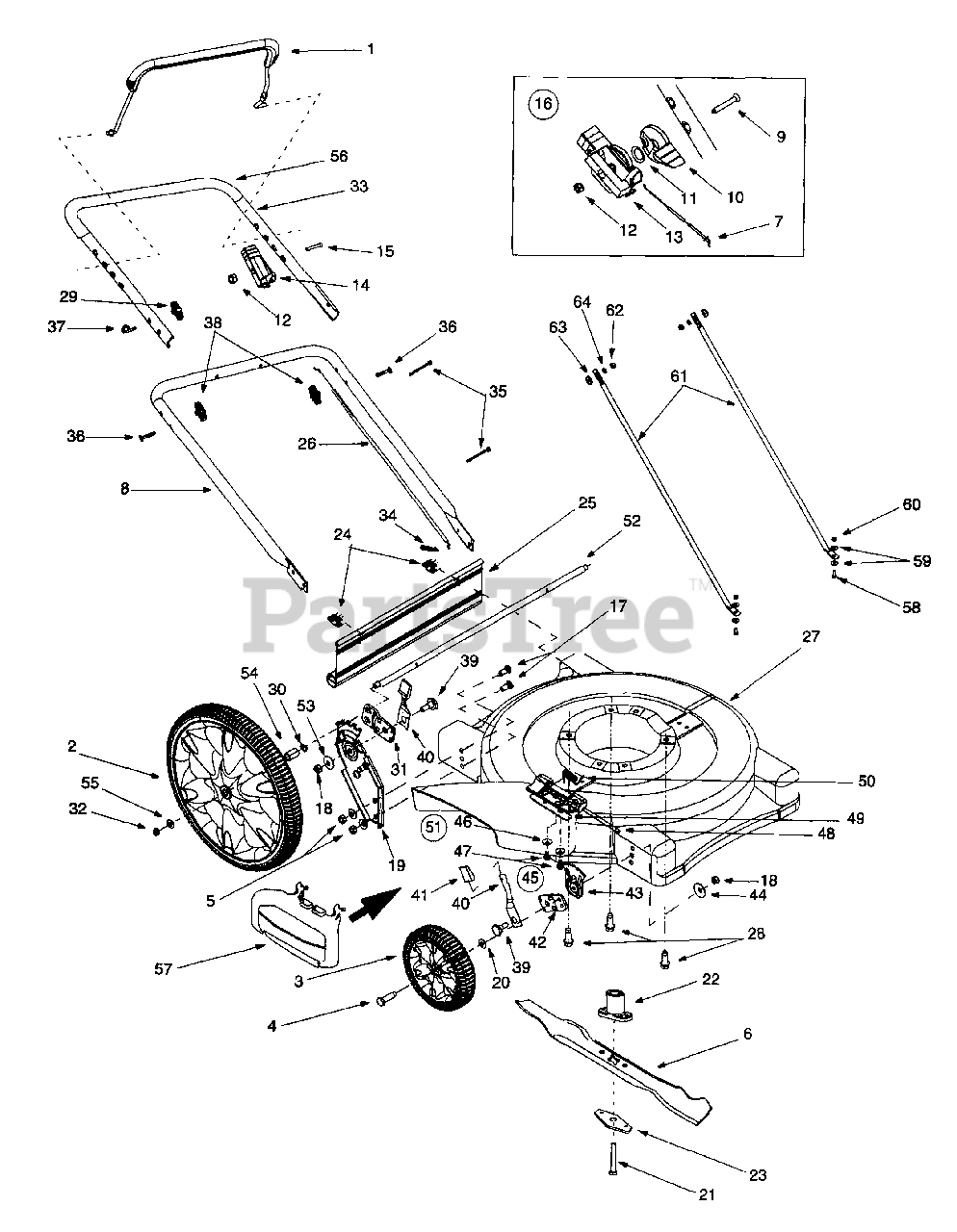

11A-505G033 - MTD Walk-Behind Mower (1999) (Ace Hardware) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Std. Control Handle
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

MTD 747-0615

Control Handle
(Superseded to 747-0956-0637)

Note: (Model 508L022 only)

$55.99

$

Usually ships in 3-6 days

0

2

MTD 734-1864

Rear Wheel Assembly
(Superseded to 734-04030)

Note: (Shown)

$76.99

$

In Stock, only 1 left!

0

MTD 734-1842

Aero Gray with Ball Bearings

$

$

Not available

3

MTD 734-1781

Front Wheel w/o Bearing

Note: (Shown)

$32.99

$

In Stock, Qty 7

0

MTD 734-1841

Front Wheel w/ Plastic Bearing
(Superseded to 934-1841)

$

$

Not available

MTD 741-0262

Plastic Bearing Only

$8.49

$

Usually ships in 3-6 days

0

4

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

5

MTD 712-0328

Hex Nut 3/8-24 Thd.
(Superseded to 712-0241)

$4.49

$

In Stock, Qty 13

0

6

MTD 742-0642

Blade, 22"
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0

MTD 742-0742

Mulching Blade, 22"
(Superseded to 942-0742A)

Note: (Optional)

$24.99

$

In Stock, only 1 left!

0

7

MTD 746-0842

Throttle Cable 51"
(Superseded to 946-0671A)

Note: (Optional)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0847

Throttle Cable 42"
(Superseded to 946-1115)

Note: (Optional)

$28.99

$

In Stock, only 1 left!

0

8

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

9

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 3 left!

0

10

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: (Optional)

$8.49

$

In Stock, only 2 left!

0

11

MTD 736-0501

Spring Lever
(Superseded to 936-0501)

Note: (Optional)

$6.99

$

Usually ships in 3-6 days

0

12

MTD 712-0324

Hex Lock Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

13

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

Note: (Optional)

$9.49

$

In Stock, only 3 left!

0

14

MTD 746-0883

Control Cable Housing

$16.99

$

In Stock, only 4 left!

0

15

MTD 710-1270

Screw, 1/4-20 x 1.3

$4.49

$

Usually ships in 3-6 days

0

16

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Includes ref. 9, 10, 11, 12, 13). (Optional)

$36.99

$

In Stock, only 1 left!

0

17

MTD 710-0793

Ribbed Neck Bolt 3/8-24 x 80"

$

$

Not available

18

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

19

MTD 682-0518

Handle Bracket Ass'y - R.H.

Variations

MTD 682-0518-0637

Handle Brkt. Ass'y. - R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 682-0517

Handle Bracket Ass'y. - L.H.
(Superseded to 682-0517-0637)

Variations

MTD 682-0517-0637

BRACKET ASSY-HDLE- - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

21

MTD 710-1044

Hex Bolt 3/8-24 x 1.5"

$3.99

$

Usually ships in 3-6 days

0

22

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 4 left!

0

23

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

24

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

25

MTD 731-1026

Rear Flap Ass'y.

$

$

Not available

26

MTD 746-0550

Control Cable - 39"
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

MTD 746-0737

Control Cable - 51"
(Superseded to 946-0737)

$28.99

$

In Stock, only 1 left!

0

27

MTD 682-0085

Deck Assembly 22"

Variations

MTD 682-0085-0480

No Longer Available - BRILLIANT GREEN (0480)

$

$

Not available

MTD 682-0085-0638

No Longer Available DECK ASM-2 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0085-0691

No Longer Available - BLACK JACK (0691)

$

$

Not available

$

$

28

MTD 710-0654A

Hex Washer Hd. TT Scr.

$4.49

$

In Stock, only 3 left!

0

29

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

30

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

31

MTD 782-0519A

Pivot Bar - L.H.

$

$

Not available

MTD 782-0520A

Pivot Bar - R.H.

$

$

Not available

32

MTD 712-3020

Hex Jam Nut 3/8-16 Thd.
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

33

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 749-0920A

Upper Handle

Note: (Model 508L022)

Variations

MTD 749-0920A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

34

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

35

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

36

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

37

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

38

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

39

MTD 738-0507B

Shoulder Bolt

$4.49

$

In Stock, only 4 left!

0

40

MTD 14832

Spring Lever Assembly w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

41

MTD 720-0190

Knob only
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

42

MTD 15202B

Pivot Bar

$

$

Currently unavailable

43

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

44

MTD 736-0356

Bell Washer
(Superseded to 936-0356)

$

$

Not available

45

MTD 14578

Front Height Adjustment Assembly Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Front Height Adjustment Assembly Comp. - L.H
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

46

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

47

MTD 710-0599

Hex Head Tap Screw, 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

48

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

49

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

50

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

51

MTD 731-1034

Chute Deflector Ass'y.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 6

0

52

MTD 738-0878

Rear Axle

$

$

Not available

53

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 16

0

54

MTD 750-0151

Spacer
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

55

MTD 736-3050

Flat Washer

$4.49

$

In Stock, Qty 16

0

56

MTD 720-0295

Foam Grip

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

57

MTD 731-1386A

Mulching Baffle
(Superseded to 731-1386D)

Note: (Optional)

$

$

Not available

58

MTD 710-0751

Hex Bolt 1/4-20 x .620 Gr.5

Note: For units equipped with support struts

$3.99

$

In Stock, Qty 20+

0

59

MTD 736-0270

Bell Washer

Note: For units equipped with support struts

$3.99

$

In Stock, Qty 20+

0

60

MTD 712-0287

Hex Nut 1/4-20
(Superseded to 912-0287)

Note: For units equipped with support struts

$4.99

$

Usually ships in 3-6 days

0

61

MTD 749-0939

Strut

Note: For units equipped with support struts

Variations

MTD 749-0939-0637

Strut - POWDER BLACK (0637)

$

$

Not available

MTD 749-0939-0638

No Longer Available STRUT-HAND - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 749-0939-0662

No Longer Available STRUT-HAND - OYSTER GRAY (0662)

$

$

Not available

$

$

62

MTD 712-0267

Hex Nut 5/16-18
(Superseded to 912-3010)

Note: For units equipped with support struts

$4.49

$

In Stock, Qty 20+

0

63

MTD 736-0451

Saddle Washer

Note: For units equipped with support struts

$4.49

$

Usually ships in 3-6 days

0

64

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

Note: For units equipped with support struts

$4.99

$

In Stock, Qty 20+

0
