11A-504A897 - Columbia 22" Walk-Behind Mower (2010) General Assembly Parts Diagram

22" Walk-Behind Mower

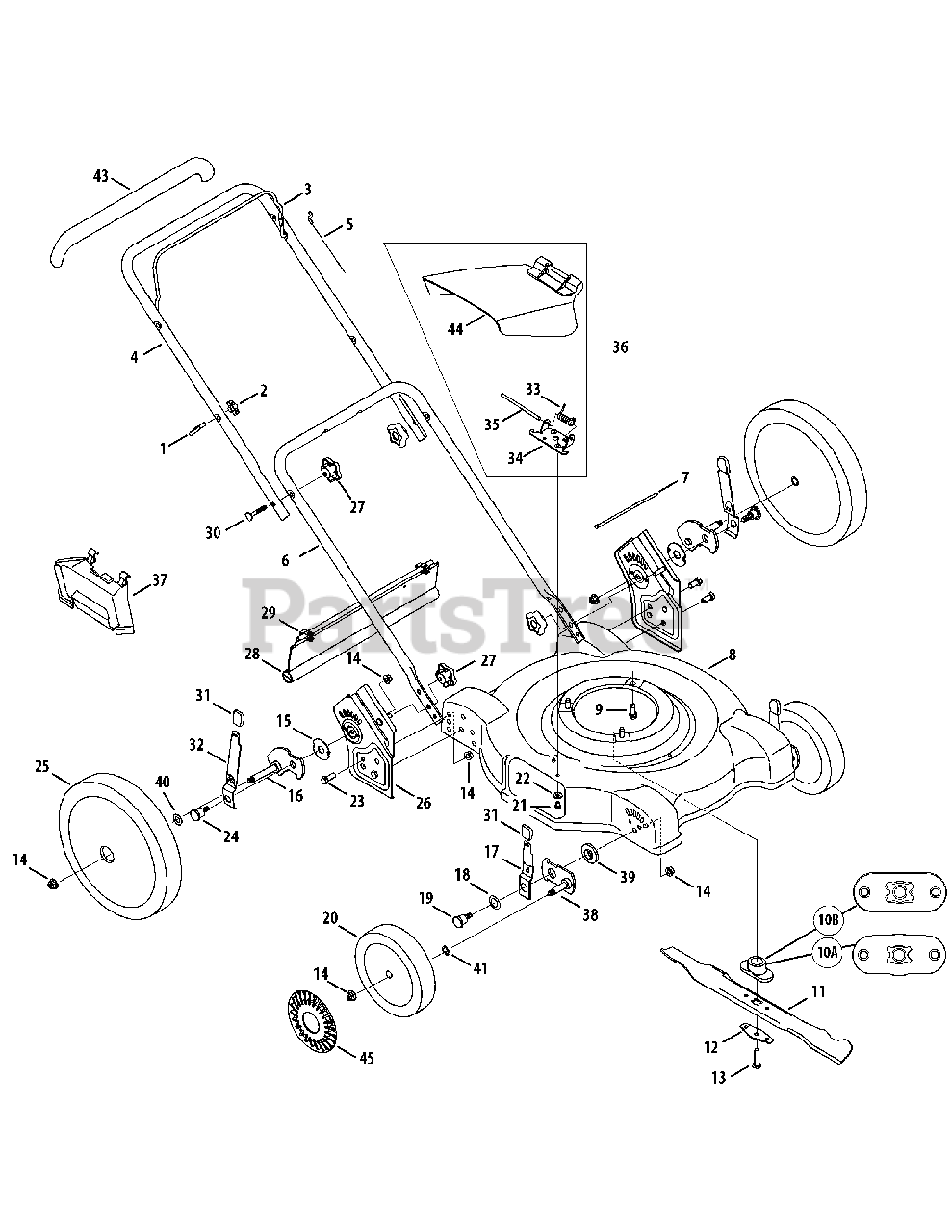

General Assembly Parts Diagram

  • Title

1

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

2

White Outdoor 720-0279

Knob - ERS Guide 1/4-20

$4.49

$

In Stock, Qty 20+

0

3

White Outdoor 747-1161A-0637

Blade Control Handle

$13.99

$

In Stock, only 1 left!

0

4

White Outdoor 749-1092A-0637

Upper Handle

$48.99

$

In Stock, only 1 left!

0

5

White Outdoor 746-0957

Control Cable 37.25 " Lg. (w/B&S)
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

6

White Outdoor 749-04037

Lower Handle

Variations

White Outdoor 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

7

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 687-02048A-0606

Deck Assembly 22" (with out logo)

$

$

Not available

9

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 4 left!

0

10A

N/A

Not used in this application

$

$

Not available

10B

White Outdoor 748-0376C

Blade Adapter #6 x 1.19
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

11

White Outdoor 942-0742A

Mulching Blade 22"

$24.99

$

In Stock, only 1 left!

0

12

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

13

White Outdoor 710-1044

Hex Screw 3/8-24 x 1.5" Lg. (Gr. 8)

$3.99

$

In Stock, only 1 left!

0

14

White Outdoor 712-04065

Flanged Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 741-0717

Thrust Bearing .688 ID x 1.938 OD

$

$

Not available

16

White Outdoor 687-02344

RH Rear Pivot Arm Assembly

$

$

Not available

16

White Outdoor 687-02343

LH Rear Pivot Arm Assembly
(Superseded to 687-02079)

$16.99

$

Usually ships in 3-6 days

0

17

White Outdoor 987-02051

Front Height Lever Ass'y (w/knob)
(Superseded to 687-02051)

$

$

Not available

17

White Outdoor 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

18

White Outdoor 736-0741

Cupped Washer .401 ID x .870 OD

$4.99

$

Usually ships in 3-6 days

0

19

White Outdoor 738-1172

Shoulder Screw 3/8-16

$5.99

$

Usually ships in 3-6 days

0

20

White Outdoor 734-04176

Wheel Ass'y 7 x 2.125 Idle BB Zag
(Superseded to 734-04176A)

$46.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

22

White Outdoor 736-0270

Cupp. Wash. .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

23

White Outdoor 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

24

White Outdoor 738-04267

Shoulder Screw

$5.49

$

In Stock, only 2 left!

0

25

White Outdoor 734-04093

Wheel Ass'y 12 x 2.15 Idle Zag

$67.99

$

In Stock, only 2 left!

0

26

White Outdoor 982-3062A

RH Handle Bracket Assembly

$46.99

$

Usually ships in 3-6 days

0

26

White Outdoor 982-3063A

LH Handle Bracket Assembly

$

$

Not available

27

White Outdoor 720-04072

Knob - Star 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

28

White Outdoor 731-2537

Trail Shield

$19.99

$

Usually ships in 3-6 days

0

29

White Outdoor 17098P

Hinge Clip

$

$

Not available

30

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

31

White Outdoor 720-0426

Height Adjuster Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

32

White Outdoor 687-02052

Rear Height Lever Ass'y (w/knob)

$

$

Not available

32

White Outdoor 732-0984B

Rear Spring Lever

$

$

Not available

33

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

34

White Outdoor 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

35

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

36

White Outdoor 931-1034B

Side Dis. Chute Ass’y

$72.99

$

In Stock, Qty 5

0

37

White Outdoor 631-04045

Mulch Plug

$19.99

$

In Stock, Qty 10

0

38

White Outdoor 687-02342

Front Pivot Bar

$15.99

$

In Stock, only 2 left!

0

39

White Outdoor 741-04242

Height Adjuster Bearing

$7.49

$

Usually ships in 3-6 days

0

40

White Outdoor 736-0182

Spring Wash. .5 x 1.0

$4.49

$

In Stock, Qty 7

0

41

White Outdoor 936-0504

Wave Washer .51" ID

$4.49

$

In Stock, Qty 9

0

43

White Outdoor 731-2626

Snap-On Bail Cover (optional)

$11.99

$

In Stock, only 2 left!

0

44

White Outdoor 931-1034B

Chute Deflector

$72.99

$

In Stock, Qty 5

0

45

White Outdoor 731-0981C

Hub Cap Grey Radial (optional)

$10.99

$

In Stock, only 2 left!

0
