11A-503F800 - Yard Machines Walk-Behind Mower (2005) General Assembly Parts Diagram

Walk-Behind Mower

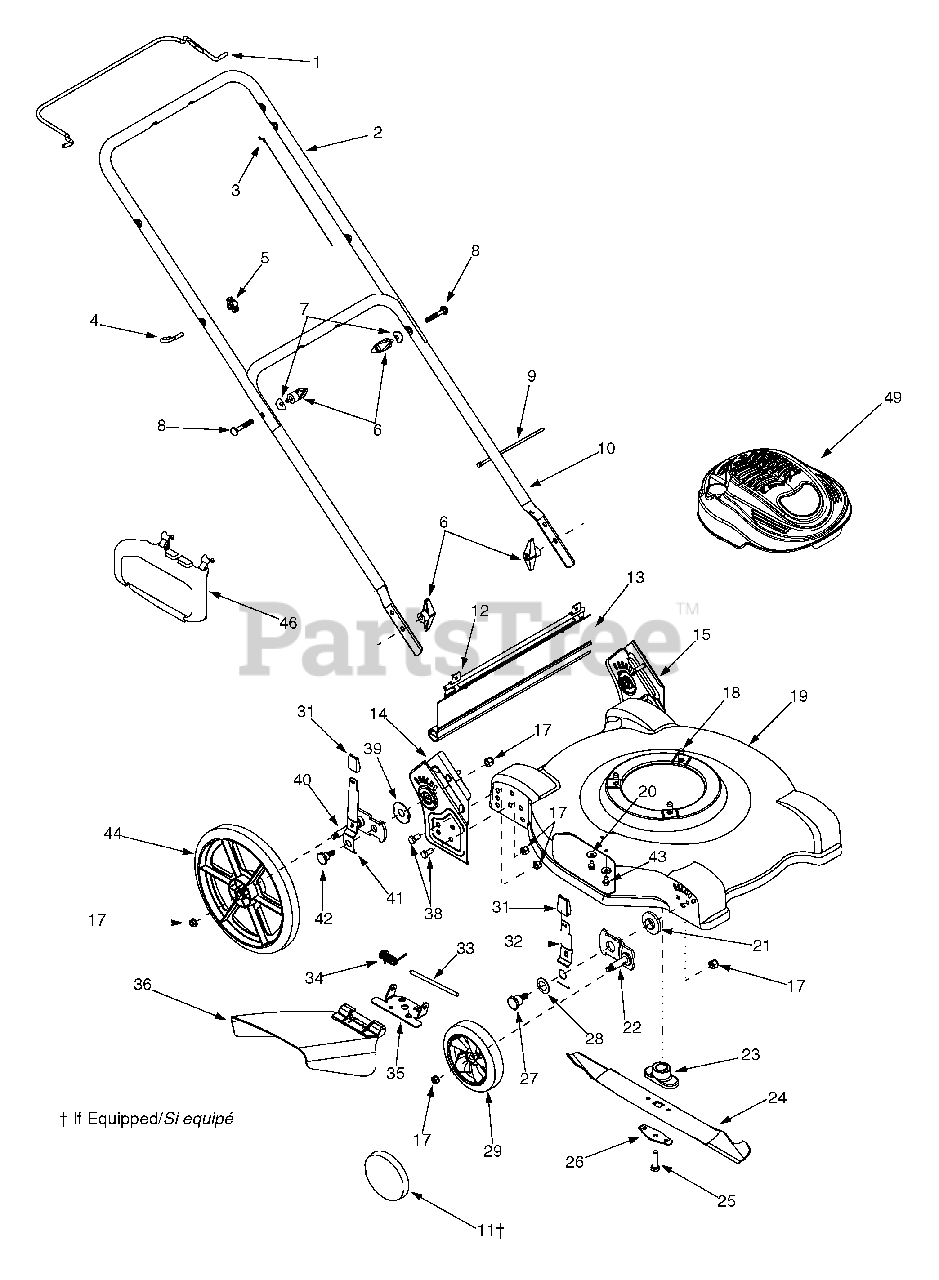

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 3 left!

0

$13.99

$

In Stock, only 3 left!

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 746-0946

Control Cable 48.25" Lg.
(Superseded to 946-0946)

$19.99

$

Usually ships in 3-6 days

0

4

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-0279

Knob - ERS Guide 1/4-20

$4.49

$

In Stock, Qty 20+

0

6

MTD 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 20+

0

7

MTD 736-0451

Saddle Wash. .320 ID x .937 OD

$4.49

$

In Stock, Qty 11

0

8

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

10

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

11

MTD 731-0981A

Hub Cap Grey Radial
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

12

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

13

MTD 731-2537

Trail Shield

$19.99

$

Usually ships in 3-6 days

0

14

MTD 682-3062A

RH Handle Bracket Assembly
(Superseded to 982-3062A)

Variations

MTD 682-3062A-0637

BRACKET-HANDLE RH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

15

MTD 682-3063A

LH Handle Bracket Assembly

Variations

MTD 682-3063A-0637

No Longer Available BRACKET-HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

17

MTD 712-0431

Flanged Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 3 left!

0

19

MTD 687-02048

Deck Assembly 22" (without logo)

Variations

MTD 687-02048-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 687-02048-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02048-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-02048-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

MTD 687-02048-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

20

MTD 736-0270

Cupped Washer .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

21

MTD 741-0751

Height Adjuster Bearing

$8.99

$

Usually ships in 3-6 days

0

22

MTD 687-02094

Pivot Bar
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

23

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 2 left!

0

24

MTD 742-0742A

Mulching Blade 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

25

MTD 710-1044

Hex Screw 3/8-24 x 1.5" Lg. (Gr. 8)

$3.99

$

Usually ships in 3-6 days

0

26

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 7

0

27

MTD 738-1172

Shoulder Screw 3/8-16

$5.99

$

Usually ships in 3-6 days

0

28

MTD 736-0741

Cupped Washer .401 ID x .870 OD

$4.99

$

Usually ships in 3-6 days

0

29

MTD 734-1988

Wheel Assembly Complete 7 x 1.8

$20.99

$

In Stock, only 4 left!

0

31

MTD 720-0426

Height Adjuster Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

32

MTD 732-1026

Spring Lever

$6.99

$

In Stock, only 1 left!

0

33

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

34

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

35

MTD 17032B

Deflector Chute Adapter

$

$

Currently unavailable

36

MTD 731-1034B

Side Dis. Chute Ass'y
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

38

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

39

MTD 741-0717

Thrust Bearing .688 ID x 1.938 OD

$

$

Not available

40

MTD 687-02080

RH Rear Pivot Arm Assembly

$

$

Not available

40

MTD 687-02079

LH Rear Pivot Arm Assembly

$16.99

$

Usually ships in 3-6 days

0

41

MTD 732-0984B

Rear Spring Lever

$

$

Not available

42

MTD 738-1127

Shoulder Screw 3/8-16 x .442
(Superseded to 738-1127B)

$7.49

$

In Stock, Qty 11

0

43

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

44

MTD 734-04082

Wheel Assembly 12 x 1.8 Bar Grey

$45.99

$

In Stock, only 2 left!

0

46

MTD 631-04045

Mulch Plug

$19.99

$

In Stock, only 4 left!

0

49

MTD 7511682114

Shroud

$

$

Not available
