11A-503E755 - Yard Machines Walk-Behind Mower (2004) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

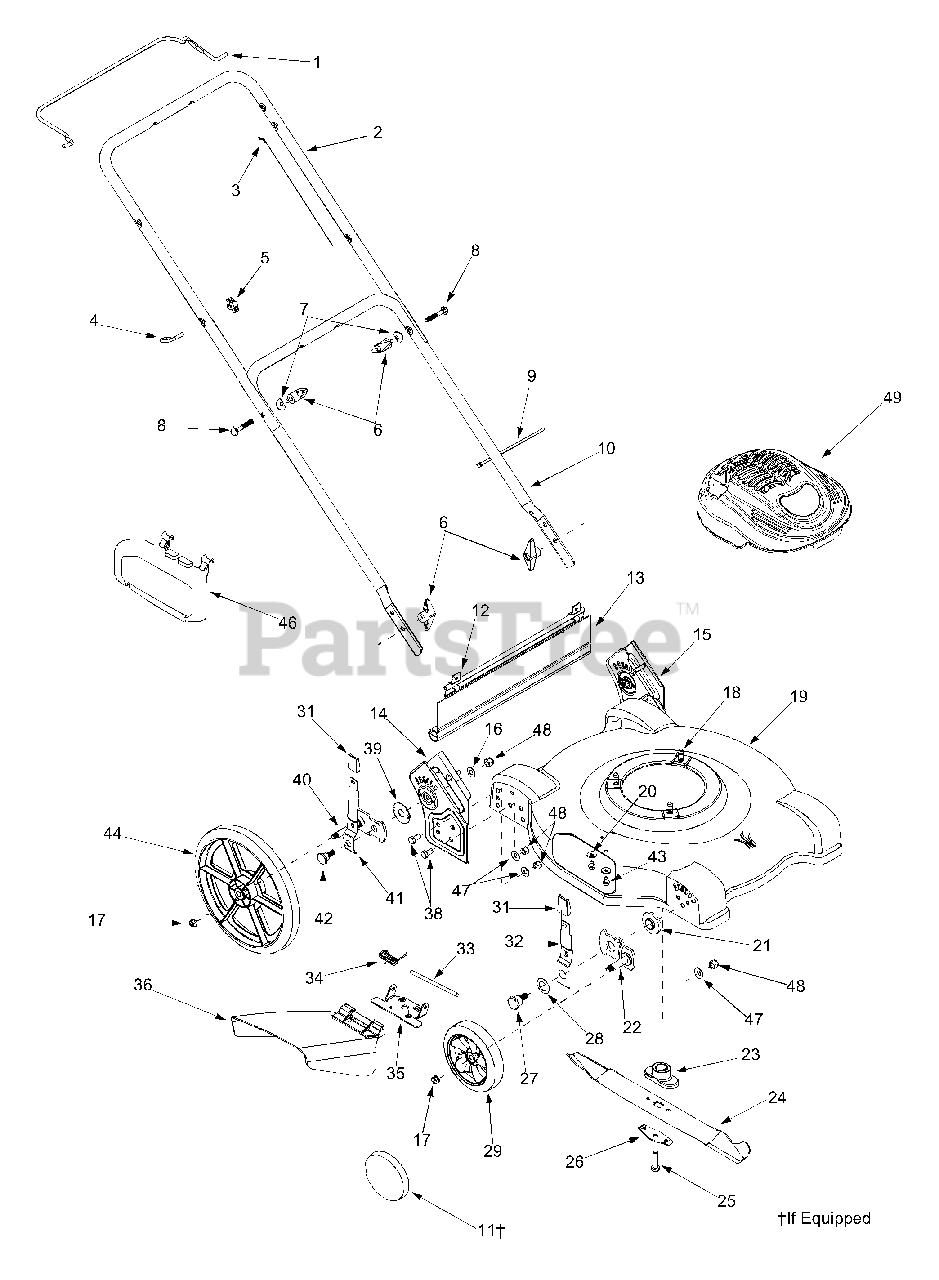

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 746-0946

Blade Control Cable - 48.25"
(Superseded to 946-0946)

$19.99

$

In Stock, only 1 left!

0

4

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

6

MTD 720-0284

Wing Nut

$6.99

$

In Stock, Qty 20+

0

7

MTD 736-0451

Shoulder Washer.320 ID x.93 OD

$4.49

$

In Stock, Qty 11

0

8

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

11

MTD 731-0981A

Hub Cap
(Superseded to 731-0981C)

Note: If equipped

$10.99

$

In Stock, only 2 left!

0

12

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

13

MTD 731-2537

Trail Shield

$19.99

$

Usually ships in 3-6 days

0

14

MTD 682-3062A

Handle Bracket Assembly - RH
(Superseded to 982-3062A)

Variations

MTD 682-3062A-0637

BRACKET-HANDLE RH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

15

MTD 682-3063A

Handle Bracket Assembly - LH

Variations

MTD 682-3063A-0637

No Longer Available BRACKET-HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

16

MTD 736-3050

Flat Washer.406 ID x.812 OD

$4.49

$

In Stock, Qty 16

0

17

MTD 712-0431

Lock Nut 3/8 -16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

18

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

19

MTD 687-02048

22" Deck Assembly

Variations

MTD 687-02048-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 687-02048-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02048-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-02048-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

MTD 687-02048-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

20

MTD 736-0270

Bell Washer.265 x.75

$3.99

$

In Stock, Qty 20+

0

21

MTD 741-0751

Height Adjuster Bearing

$8.99

$

Usually ships in 3-6 days

0

22

MTD 687-02094

Pivot Arm Assembly
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

23

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

24

MTD 742-0742A

22" Mulching Blade
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

25

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, only 1 left!

0

26

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

27

MTD 738-1172

Shoulder Screw 3/8 - 16 x.302

$5.99

$

Usually ships in 3-6 days

0

28

MTD 736-0741

Bell Washer.760 ID x 1.25 OD

$4.99

$

Usually ships in 3-6 days

0

29

MTD 734-04086

Front Wheel Assembly 7 x 1.8
(Superseded to 734-1988)

$20.99

$

In Stock, only 4 left!

0

31

MTD 720-0426

Height Adjuster Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

32

MTD 732-1026

Front Spring Lever

$6.99

$

In Stock, only 1 left!

0

33

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

34

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

35

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

36

MTD 731-1034B

Side Discharge Chute Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

38

MTD 710-0514

Hex Cap Screw 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

39

MTD 741-0717

Thrust Bearing.688 ID x 1.938 OD

$

$

Not available

40

MTD 687-02080

Rear Pivot Arm Assembly - RH

$

$

Not available

MTD 687-02079

Rear Pivot Arm Assembly - LH

$16.99

$

Usually ships in 3-6 days

0

41

MTD 732-0984B

Rear Spring Lever

$

$

Not available

42

MTD 738-1127

Shoulder Screw 3/8 - 16 x.442
(Superseded to 738-1127B)

$7.49

$

In Stock, Qty 11

0

43

MTD 710-0599

Screw 1/4-20 x.50

$4.49

$

In Stock, Qty 20+

0

44

MTD 734-04089

Rear Wheel Assembly 12 x 1.8

$58.99

$

Usually ships in 3-6 days

0

46

MTD 631-04045

Snap Mulching Plug

$19.99

$

In Stock, Qty 10

0

47

MTD 736-0105

Bell Washer.401 ID x.870 OD

$4.49

$

In Stock, Qty 20+

0

48

MTD 712-0130

Hex Lock Nut 3/8-16

$3.99

$

In Stock, Qty 11

0

49

MTD 731-04525

Engine Shroud
(Superseded to 931-04525)

$51.99

$

Usually ships in 3-6 days

0
