11A-439Q755 - Yard-Man Walk-Behind Mower (2006) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

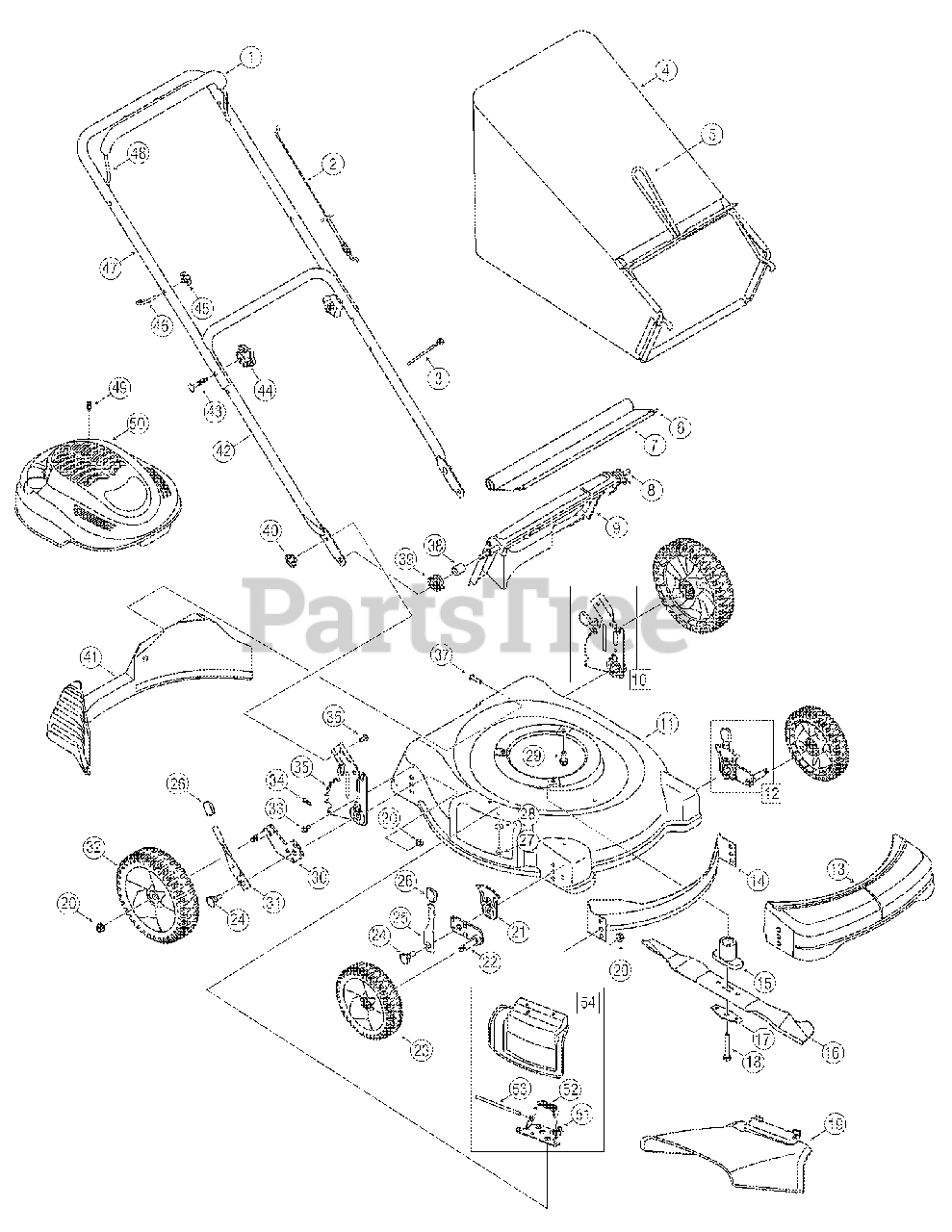

General Assembly Parts Diagram

  • Title

1

MTD 731-04204

Bail Cover

$11.99

$

In Stock, only 3 left!

0

2

MTD 746-1130

Control Cable 40-inch
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 7

0

2

MTD 746-1137

Control Cable 53-inch
(Superseded to 946-1137)

$21.99

$

In Stock, only 4 left!

0

3

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

4

MTD 664-04027

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

5

MTD 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

6

MTD 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

7

MTD 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

8

MTD 747-04035

Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

9

MTD 731-04134A

Rear Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

10

MTD 687-02069

Height Adj. Bracket Assy - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

10

MTD 687-02068

Height Adj. Bracket Assy - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

11

MTD 787-01279

21-inch Deck

Variations

MTD 787-01279-0650

"No Longer Available DECK-21""" - RED METALLIC (0650)

$

$

Not available

MTD 787-01279-0691

Deck - 21" - BLACK JACK (0691)

$

$

Not available

MTD 787-01279-0709

Deck 21-inch - Green - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 787-01279-4043

DECK-21" - CRAFTSMAN METALLIC GRAY (4043)

$

$

Not available

MTD 787-01279-0606

21" Deck Ass’y (w/ side dis charge) - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 787-01279-0629

Deck 21-inch - Silver Flake - SILVER FLAKE (0629)

$

$

Not available

MTD 787-01279-0638

Deck 21-inch - Red - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01279-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01279-0689

No Longer Available - POLO GREEN (0689)

$

$

Not available

MTD 787-01279-0716

DECK-21" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 787-01279-0729

No Longer Available - STORM GRAY (0729)

$

$

Not available

$

$

12

MTD 687-02099A

Hgt. Adj. Assy - LH (7-inch Wheel)
(Superseded to 987-02099C)

$38.99

$

Usually ships in 3-6 days

0

12

MTD 687-02100A

Hgt. Adj. Assy - RH (7-inch Wheel)
(Superseded to 987-02100C)

$38.99

$

Usually ships in 3-6 days

0

13

MTD 731-1506A

Front End Cover, 21-inch

$

$

Not available

14

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

15

MTD 748-04082

Blade Adapter

$37.99

$

In Stock, only 1 left!

0

16

MTD 742-0741

21-inch Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

17

MTD 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

18

MTD 710-1257

Hex Bolt 3/8-24 x 2.5 long

$7.99

$

In Stock, only 1 left!

0

19

MTD 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

20

MTD 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

MTD 787-01290

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

22

MTD 687-02076A

Pivot Arm Assy - RH
(Superseded to 987-02076A)

$

$

Not available

22

MTD 687-02077A

Pivot Arm Assy - LH
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

23

MTD 734-04086

Wheel 7 x 1.8 Pin Bar
(Superseded to 734-1988)

$20.99

$

In Stock, only 4 left!

0

24

MTD 738-0507B

Shoulder Screw .5 x .434

$4.49

$

In Stock, Qty 20+

0

25

MTD 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

26

MTD 720-0426

Height Adjust Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

27

MTD 710-0599

TT Screw 1.4-20 x .50

$4.49

$

In Stock, Qty 20+

0

28

MTD 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

29

MTD 710-0654A

TT Sems Screw 3.8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

30

MTD 687-02071A

Pivot Arm Assy - RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

30

MTD 687-02070A

Pivot Arm Assy - LH
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

31

MTD 732-04175

Spring Lever

$11.99

$

In Stock, only 1 left!

0

32

MTD 734-04087

Wheel 8 x 1.8 Pin Bar

$27.99

$

In Stock, Qty 5

0

33

MTD 710-1652

TT Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

34

MTD 714-0104

Int. Cotter Pin .072 dia. x 1

$4.49

$

In Stock, Qty 20+

0

35

MTD 787-01292

Rear Handle Bracket - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

35

MTD 787-01291

Rear Handle Bracket - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

36

MTD 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

37

MTD 710-04371

Screw HL 1/4-15 x 1.00

$6.99

$

Usually ships in 3-6 days

0

38

MTD 750-04162

Spacer
(Superseded to 950-04162)

$

$

Not available

39

MTD 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

39

MTD 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

40

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

41

MTD 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

42

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

43

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

44

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

45

MTD 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

46

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

47

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

48

MTD 747-1161A

Blade Control (Bail)

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

49

MTD 7510042823

Shoulder Screw

$

$

Not available

50

MTD 731-04525

Engine Shroud
(Superseded to 931-04525)

$51.99

$

Usually ships in 3-6 days

0

51

MTD 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

52

MTD 732-1014

Torsion Spring .290 ID x 1.68
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

53

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

54

MTD 987-02055

Mulch Plug Assembly

$27.99

$

In Stock, Qty 10

0
