11A-436N063 - Troy-Bilt Tru-Cut 110 Walk-Behind Mower (2003) General Assembly Parts Diagram

Tru-Cut 110 Walk-Behind Mower

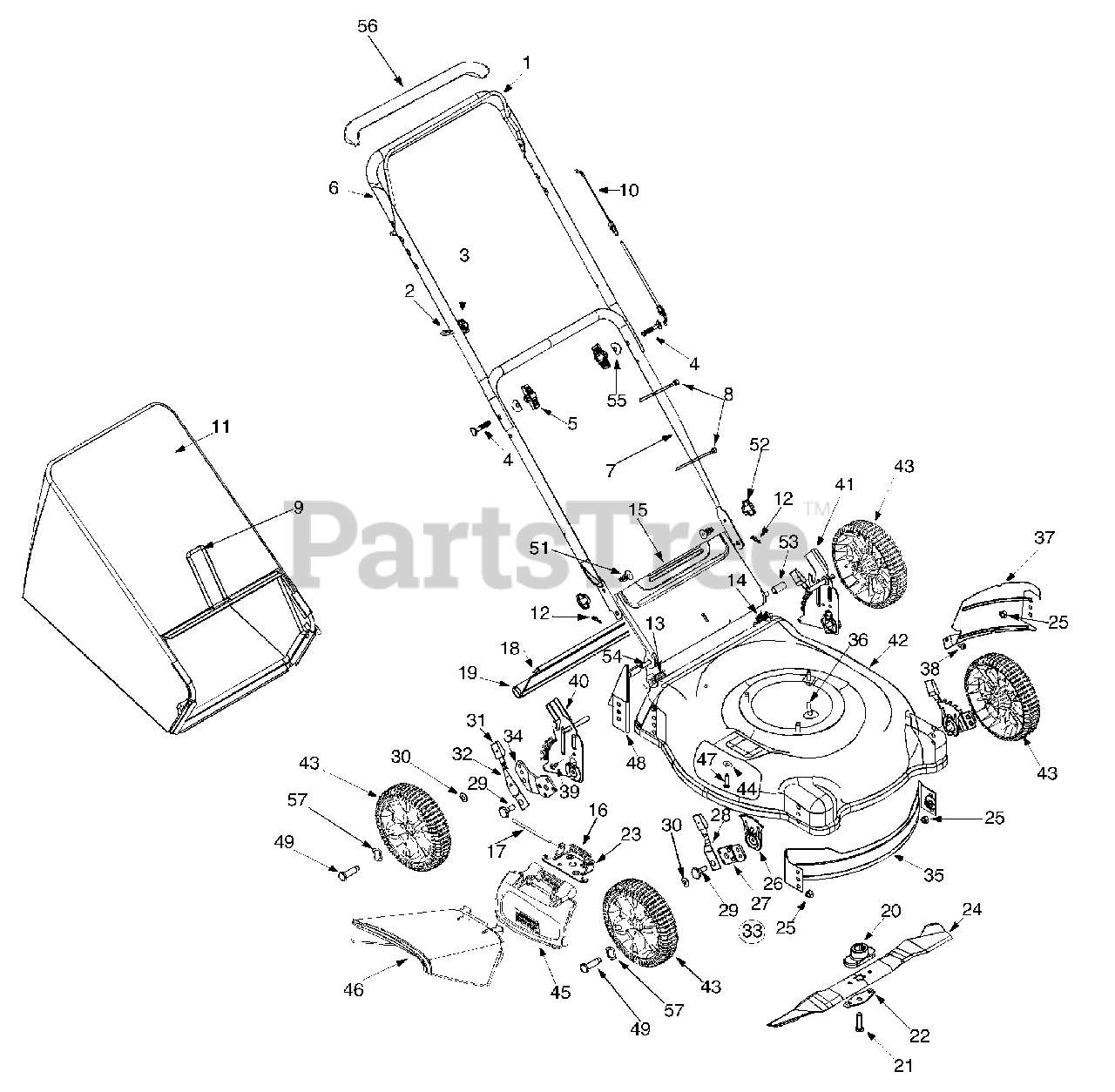

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 747-1161A

Control Handle

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 749-1092A

Upper Handle

Variations

Troy-Bilt 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

Troy-Bilt 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

10

Troy-Bilt 746-1130

Control Cable
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 7

0

11

Troy-Bilt 664-04011

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

12

Troy-Bilt 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 732-04072

Door Spring - R.H.
(Superseded to 932-04072)

$

$

Not available

14

Troy-Bilt 732-04071

Door Spring - L.H.
(Superseded to 932-04071)

$

$

Not available

15

Troy-Bilt 731-04134

Rear Discharge Door
(Superseded to 931-04134)

$

$

Not available

16

Troy-Bilt 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

19

Troy-Bilt 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

20

Troy-Bilt 748-0376C

Blade Adapter w/Star
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

24

Troy-Bilt 742-0741

21" Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

Troy-Bilt 712-0431

Flange Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

27

Troy-Bilt 15262B

Pivot Bar

Variations

Troy-Bilt 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 732-0404

Front Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 738-0507B

Shld. Bolt.5" Dia. x.357"

$4.49

$

In Stock, only 4 left!

0

30

Troy-Bilt 736-0105

Bell Washer.38" I.D. x.88" O.D.

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 732-0417A

Rear Spring Lever

$

$

Not available

33

Troy-Bilt 14578

Height Adj. Assy. Comp. - RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

Troy-Bilt 14579

Height Adj. Assy. Comp. - LH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

34

Troy-Bilt 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

Troy-Bilt 14766

Pivot Bar L.H.

$19.99

$

Usually ships in 3-6 days

0

35

Troy-Bilt 782-5002A

Front Baffle
(Superseded to 782P5002B)

Variations

Troy-Bilt 782-5002A-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

36

Troy-Bilt 710-0654A

Hex L-Wash.Scr. 3/8-16 x 1"

$4.49

$

In Stock, only 4 left!

0

37

Troy-Bilt 782-5003

Rear Baffle - LH
(Superseded to 782-5003A)

Variations

Troy-Bilt 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

38

Troy-Bilt 710-1017

Torx Mach AB-Tap Scr. 1/4 x.62"

$8.49

$

In Stock, Qty 9

0

39

Troy-Bilt 710-0896

Hex Ind Wash. Scr. 1/4-14:.625

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 787-01016

Handle Brkt. Ass'y.-RH
(Superseded to 787-01016-0637)

Variations

Troy-Bilt 787-01016-0637

BRACKET-HANDLE RH - POWDER BLACK (0637)

$

$

Not available

$

$

41

Troy-Bilt 787-01015

Handle Brkt. Ass'y.-LH
(Superseded to 787-01015-0637)

Variations

Troy-Bilt 787-01015-0637

BRACKET-HANDLE LH - POWDER BLACK (0637)

$

$

Not available

$

$

42

Troy-Bilt 787-01104

Deck 21"

Variations

Troy-Bilt 787-01104-0638

SERVICE KIT:21" DE - MTD/TROY-BILT RED (0638)

$

$

Not available

Troy-Bilt 787-01104-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 787-01104-0691

SERVICE KIT:21" DE - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 787-01104-0709

SERVICE KIT:21" DE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

43

Troy-Bilt 734-04033

Wheel Complete
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

44

Troy-Bilt 736-0270

Bell Washer 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 687-02055

Hinged Mulching Plug
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

46

Troy-Bilt 731-04177

Chute Deflector: Side Discharge

$19.99

$

In Stock, Qty 20+

0

47

Troy-Bilt 710-0599

Hex Hd Self-Tp Scr. 1/4-20 x.5"

$4.49

$

In Stock, Qty 20+

0

48

Troy-Bilt 782-5004A

Rear Baffle - RH
(Superseded to 782-5004B)

Variations

Troy-Bilt 782-5004A-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 738-0213

Axle Bolt

$7.99

$

In Stock, only 2 left!

0

51

Troy-Bilt 710-0703

Hex Carriage Screw 1/4-20

$4.49

$

In Stock, Qty 15

0

52

Troy-Bilt 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 750-04162

Spacer,.375OD x.50ID
(Superseded to 950-04162)

$

$

Not available

54

Troy-Bilt 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 736-0451

Shoulder Washer

$4.49

$

In Stock, Qty 11

0

56

Troy-Bilt 731-04204

Deluxe Bail Cover

$11.99

$

In Stock, only 4 left!

0

57

Troy-Bilt 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0
