11A-435D790 - White Outdoor 21" Walk-Behind Mower (2005) General Assembly Parts Diagram

21" Walk-Behind Mower

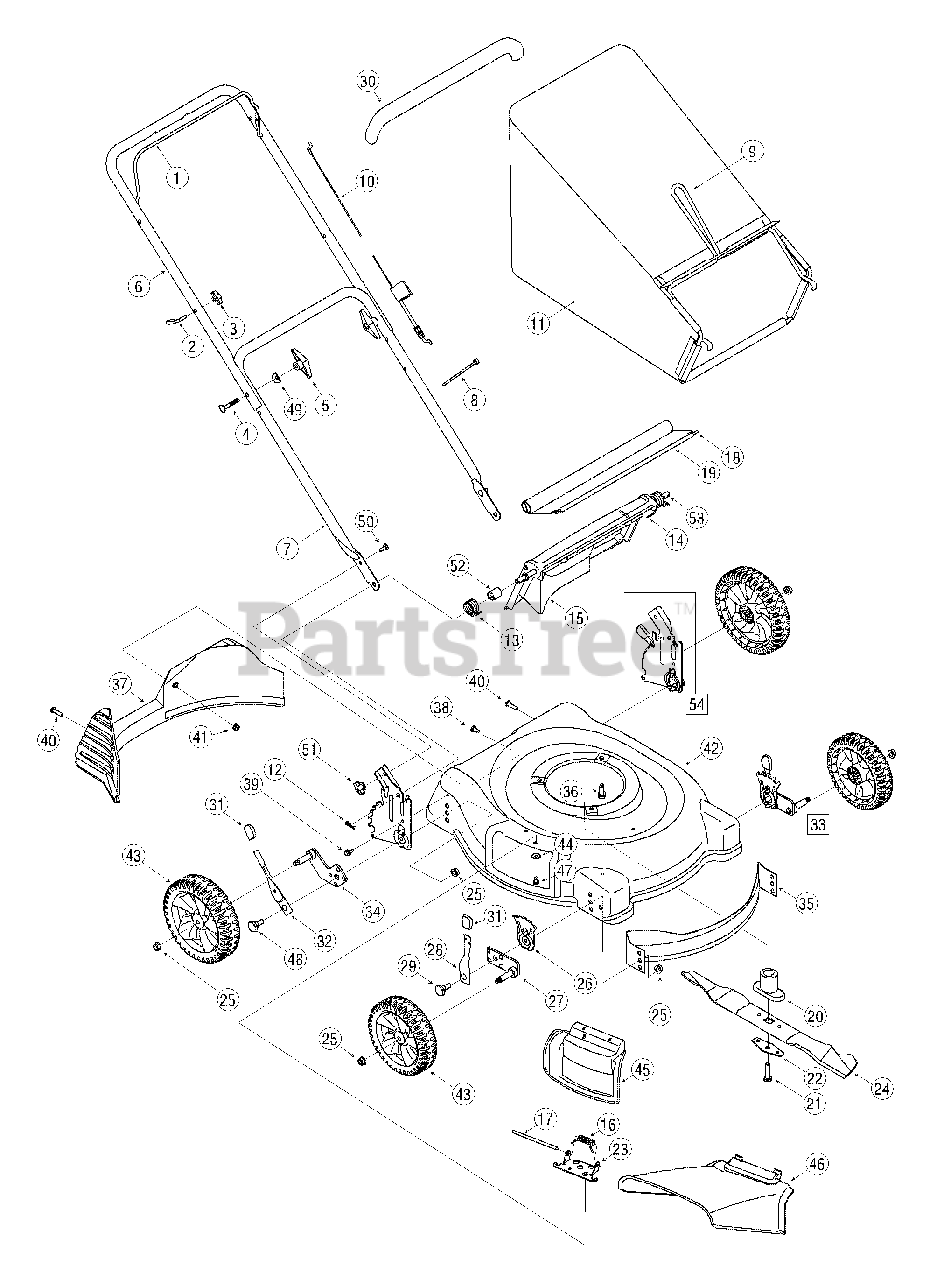

General Assembly Parts Diagram

  • Title

1

White Outdoor 747-1161A

Control Handle

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

2

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

White Outdoor 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

4

White Outdoor 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

5

White Outdoor 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

6

White Outdoor 749-1092A

Upper Handle

Variations

White Outdoor 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

7

White Outdoor 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

White Outdoor 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

8

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

9

White Outdoor 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

White Outdoor 747-04080-0637

FRAME GRASS BAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

10

White Outdoor 746-1137

Control Cable - 53"
(Superseded to 946-1137)

$21.99

$

In Stock, only 4 left!

0

11

White Outdoor 664-04034

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

12

White Outdoor 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 732-04090A

Door Spring - R.H.

$7.99

$

Usually ships in 3-6 days

0

14

White Outdoor 732-04089A

Door Spring - L.H.

$7.99

$

Usually ships in 3-6 days

0

15

White Outdoor 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

16

White Outdoor 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

White Outdoor 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

19

White Outdoor 731-04998

Rear Flap

$31.99

$

In Stock, Qty 7

0

20

White Outdoor 748-0377C

Blade Adapter w/Star
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

21

White Outdoor 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.99

$

In Stock, only 1 left!

0

22

White Outdoor 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

23

White Outdoor 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

24

White Outdoor 742-0741

21" Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

White Outdoor 712-0431

Flange Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

26

15261C

Height Adj. Plate

$

$

Not available

27

White Outdoor 687-02076

Pivot Arm Assembly - LH
(Superseded to 987-02076A)

$

$

Not available

White Outdoor 687-02077

Pivot Arm Assembly - RH
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

28

White Outdoor 732-0404

Front Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

29

White Outdoor 738-0507B

Shld. Bolt.5" Dia. x.357"

$4.49

$

In Stock, only 4 left!

0

30

White Outdoor 731-04859

Deluxe Bail Cover

$11.99

$

Usually ships in 3-6 days

0

31

White Outdoor 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

32

White Outdoor 732-04175

Rear Spring Lever

$11.99

$

In Stock, only 1 left!

0

33

White Outdoor 687-02074

Height Adj. Assy. Comp. - RH
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

White Outdoor 687-02075

Height Adj. Assy. Comp. - LH
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

34

White Outdoor 687-02071

Pivot Arm - RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

White Outdoor 687-02070

Pivot Arm - LH
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

35

White Outdoor 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

36

White Outdoor 710-0654A

Hex L-Wash.Scr. 3/8-16 x 1"

$4.49

$

In Stock, only 4 left!

0

37

White Outdoor 731-04150

Rear Baffle
(Superseded to 731-04150C)

$42.99

$

In Stock, only 2 left!

0

38

White Outdoor 710-0286

Screw, 1/4-20 x.500"

$4.49

$

Usually ships in 3-6 days

0

39

White Outdoor 710-1652

Hex Ind Wash. Scr. 1/4-20:.625

$4.49

$

In Stock, Qty 20+

0

40

White Outdoor 710-04371

Screw, 1/4-15 x 1.250

$6.99

$

Usually ships in 3-6 days

0

41

White Outdoor 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

42

White Outdoor 787-01231

21" Deck
(Superseded to 753-05200)

Variations

White Outdoor 787-01231-0638

SERVICE KIT:DECK 2 - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 787-01231-0650

SERVICE KIT:DECK 2 - RED METALLIC (0650)

$

$

Not available

$

$

43

White Outdoor 734-2004A

Wheel Complete
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

44

White Outdoor 736-0270

Bell Washer 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

45

White Outdoor 687-02055

Hinged Mulching Plug
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 10

0

46

White Outdoor 731-04177

Side Chute Deflector

$19.99

$

In Stock, Qty 20+

0

47

White Outdoor 710-0599

Hex Hd Self-Tp Scr. 1/4-20 x.5"

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 738-04136

Shoulder Screw

$

$

Not available

49

White Outdoor 736-0451

Shoulder Washer

$4.49

$

In Stock, Qty 11

0

50

White Outdoor 710-0703

Hex Carriage Screw 1/4-20

$4.49

$

In Stock, Qty 15

0

51

White Outdoor 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

52

White Outdoor 750-04162

Spacer, .375 OD x .50 ID
(Superseded to 950-04162)

$

$

Not available

53

White Outdoor 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

54

White Outdoor 687-02069

Rear Handle Bracket Assembly - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

White Outdoor 687-02068

Rear Handle Bracket Assembly - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

55

White Outdoor 731-0981A

Hub Cap - Rad Spk Gray
(Superseded to 731-0981C)

Note: (Not Shown)

$10.99

$

In Stock, only 2 left!

0

56

White Outdoor 731-05097

Engine Shroud

Note: (Not Shown)

$59.99

$

Usually ships in 3-6 days

0
