11A-435D755 - Yard Machines Walk-Behind Mower (2004) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

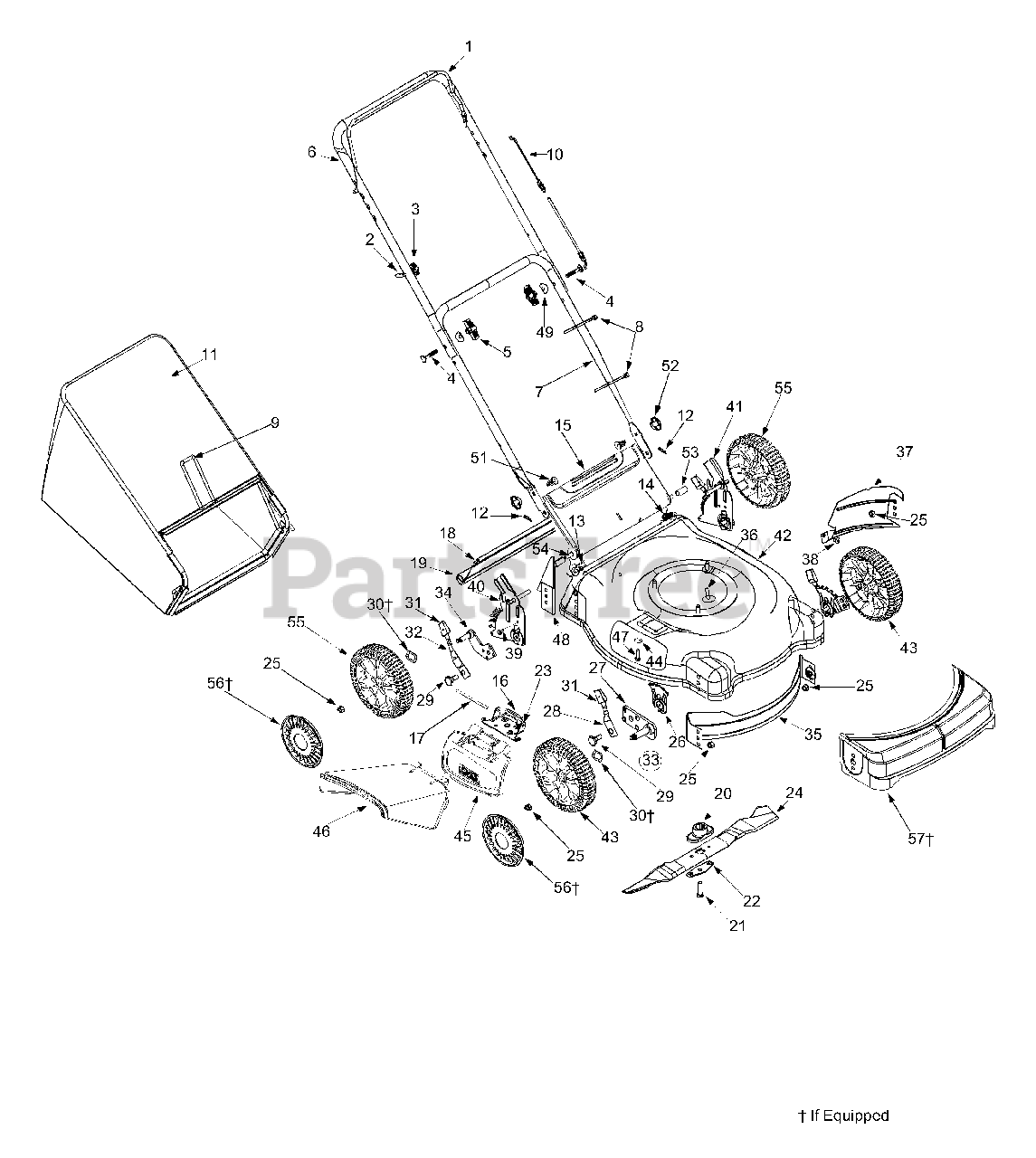

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 3 left!

0

3

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

Usually ships in 3-6 days

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2"

$7.49

$

In Stock, Qty 20+

0

5

MTD 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

6

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

7

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

8

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

9

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

10

MTD 746-1130

Control Cable - 40"
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 11

0

MTD 746-1137

Control Cable - 53"
(Superseded to 946-1137)

$21.99

$

In Stock, only 4 left!

0

11

MTD 664-04027

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

12

MTD 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

13

MTD 732-04090

Door Spring - R.H.
(Superseded to 732-04090A)

$7.99

$

Usually ships in 3-6 days

0

14

MTD 732-04089

Door Spring - L.H.
(Superseded to 732-04089A)

$7.99

$

Usually ships in 3-6 days

0

15

MTD 731-04134

Rear Discharge Door
(Superseded to 931-04134)

$

$

Not available

16

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

19

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 6

0

20

MTD 748-0376C

Blade Adapter w/Star
(Superseded to 748-0376E)

$20.99

$

In Stock, Qty 5

0

21

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, Qty 9

0

22

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

23

MTD 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

24

MTD 742-0741

21" Mulching Blade w/Star
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

MTD 712-0431

Flange Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

26

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

27

MTD 687-02077

Pivot Arm Assembly - RH (8" Wheels)
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

Pivot Arm Assembly - LH (7" Wheels)

$

$

Not available

MTD 687-02076

Pivot Arm Assembly - LH (8" Wheels)
(Superseded to 987-02076A)

$

$

Not available

Pivot Arm Assembly - RH (7" Wheels)

$

$

Not available

28

MTD 732-0404

Front Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

29

MTD 738-0507B

Shld. Bolt.5" Dia. x.357"

$4.49

$

In Stock, only 4 left!

0

30

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

Note: If equipped

$4.49

$

In Stock, Qty 10

0

31

MTD 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

32

MTD 732-04175

Rear Spring Lever

$11.99

$

In Stock, only 1 left!

0

33

MTD 687-02074

Height Adj. Assy. Comp. - RH (8" Whl)
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

MTD 687-02100

Height Adj. Assy. Comp. - RH (7" Whl)
(Superseded to 987-02100C)

$38.99

$

In Stock, only 1 left!

0

MTD 687-02075

Height Adj. Assy. Comp. - LH (8" Whl)
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

MTD 687-02099

Height Adj. Assy. Comp. - LH (7" Whl)
(Superseded to 987-02099C)

$38.99

$

Usually ships in 3-6 days

0

34

MTD 687-02071

Pivot Arm R.H.
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

MTD 687-02070

Pivot Arm L.H.
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

35

MTD 782-5002A

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002A-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 710-0654A

Hex L-Wash.Scr. 3/8-16 x 1"

$4.49

$

In Stock, only 3 left!

0

37

MTD 782-5003

Rear Baffle - LH
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

38

MTD 710-1017

Torx Mach AB-Tap Scr. 1/4 x.62"

$8.49

$

In Stock, Qty 9

0

39

MTD 710-1652

Hex Ind Wash. Scr. 1/4-20:.625

$4.49

$

In Stock, Qty 20+

0

40

MTD 787-01144

Handle Bracket - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

41

MTD 787-01143

Handle Bracket - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

42

MTD 787-01104

Deck 21"

Variations

MTD 787-01104-0638

SERVICE KIT:21" DE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01104-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

MTD 787-01104-0691

SERVICE KIT:21" DE - BLACK JACK (0691)

$

$

Not available

MTD 787-01104-0709

SERVICE KIT:21" DE - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

43

MTD 734-04086

Front Wheel 7" x 1.8"
(Superseded to 734-1988)

$20.99

$

In Stock, only 4 left!

0

MTD 734-2004A

Front Wheel 8" x 2.125"
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

44

MTD 736-0270

Bell Washer 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

45

MTD 687-02055

Hinged Mulching Plug
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 8

0

46

MTD 731-04177

Side Chute Deflector

$19.99

$

In Stock, Qty 20+

0

47

MTD 710-0599

Hex Hd Self-Tp Scr. 1/4-20 x.5"

$4.49

$

In Stock, Qty 20+

0

48

MTD 782-5004A

Rear Baffle - RH
(Superseded to 782-5004B)

Variations

MTD 782-5004A-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

49

MTD 736-0451

Shoulder Washer

$4.49

$

Usually ships in 3-6 days

0

51

MTD 710-0703

Hex Carriage Screw 1/4-20

$4.49

$

In Stock, Qty 15

0

52

MTD 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

53

MTD 750-04162

Spacer,.375OD x.50ID
(Superseded to 950-04162)

$

$

Not available

54

MTD 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

55

MTD 734-04087

Rear Wheel 8" x 1.8"

$27.99

$

In Stock, Qty 5

0

MTD 734-2004A

Rear Wheel 8" x 2.125"
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

56

MTD 731-1426A

Hub Cap - Radial Spoke Yellow
(Superseded to 731-1426B)

Note: If equipped

$8.99

$

Usually ships in 3-6 days

0

57

MTD 731-1506

Front Cover
(Superseded to 731-1506A)

Note: If equipped

$

$

Not available
