11A-433H136 - Yard Machines Walk-Behind Mower (1998) (Homebase) General Assembly Parts Diagram

Walk-Behind Mower

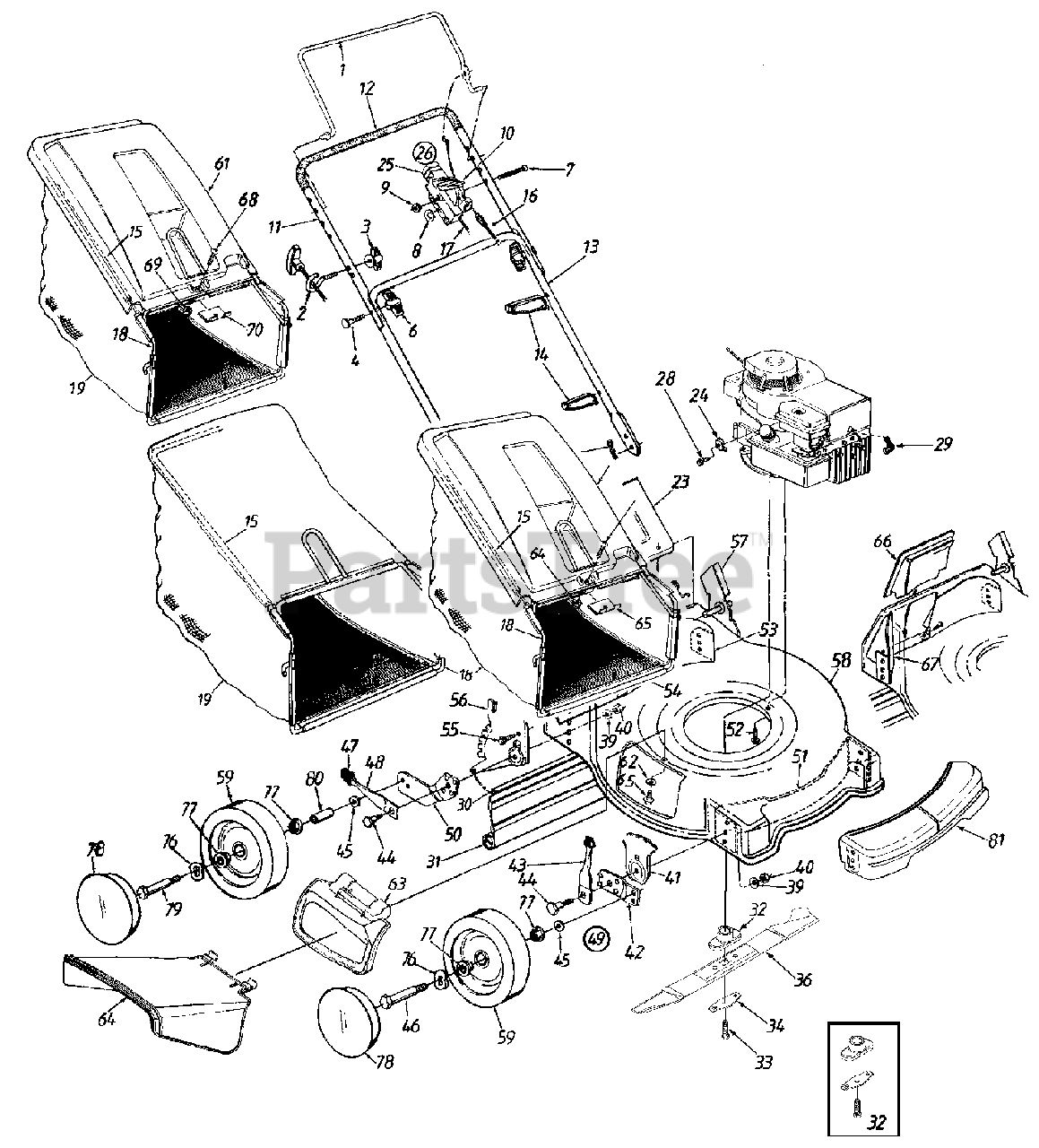

General Assembly Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Std.)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Note: (Deluxe)

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

3

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, only 4 left!

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg.

$7.49

$

In Stock, Qty 20+

0

6

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

7

MTD 710-0605

Oval C-Sunk Mach. Scr.

$4.49

$

In Stock, only 3 left!

0

8

MTD 736-0501

Spr. Wash. .66" I.D.
(Superseded to 936-0501)

$6.99

$

Usually ships in 3-6 days

0

9

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

10

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

$8.49

$

In Stock, only 2 left!

0

11

MTD 749-0538C

Upper Handle
(Superseded to 749-0538E-0637)

Variations

MTD 749-0538C-0637

Upper Handle - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

13

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

MTD 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

MTD 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

16

MTD 746-0553

Control Cable - 36"
(Superseded to 946-0553)

Note: (436-438)

$24.99

$

Usually ships in 3-6 days

0

MTD 746-0737

Control Cable - 51"
(Superseded to 946-0737)

Note: (433)

$28.99

$

In Stock, only 1 left!

0

17

MTD 746-0843

Throttle Control Wire-55"
(Superseded to 946-0671A)

Note: (436-438)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0847

Throttle Control Wire-42"
(Superseded to 946-1115)

Note: (433)

$28.99

$

In Stock, only 1 left!

0

18

MTD 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

MTD 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 764-0309

Grass Bag
(Superseded to 964-0309)

Note: (For Hard Top)

$151.99

$

Usually ships in 3-6 days

0

MTD 764-0476A

Grass Bag
(Superseded to 964-0309)

Note: (Soft Top w/red Icon)

$151.99

$

Usually ships in 3-6 days

0

MTD 764-0457A

Grass Bag
(Superseded to 964-0309)

Note: (Soft Top w/yellow Icon)

$151.99

$

Usually ships in 3-6 days

0

?20

MTD 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

?21

MTD 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

?22

MTD 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$

$

Not available

23

MTD 782-7000

Rear Discharge Door

Variations

MTD 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

MTD 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-7000-0674

No Longer Available DOOR-REAR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

24

MTD 751B213146

Cable Clamp
(Superseded to BS-690798)

Note: (B&S)

$5.49

$

In Stock, only 1 left!

0

MTD 7510007775

Cable Clamp
(Superseded to TC-27793)

Note: (Tec.)

$1.99

$

In Stock, only 2 left!

0

25

MTD 646-0875

Throttle Body
(Superseded to 946-0875)

$9.49

$

In Stock, only 3 left!

0

26

MTD 811-00185

Throttle Box Comp.
(Superseded to 811-0185)

Note: (Incl. Ref. 7,8,9,10,25)

$36.99

$

In Stock, only 1 left!

0

28

MTD 710-1237

Hex Wash. Hd. Scr. #10-32:.62" Lg.

Note: (B&S)

$4.49

$

Usually ships in 3-6 days

0

MTD 710-0871

Hex Slot Scr. #10-32: .38 Lg.

Note: (Tec.)

$

$

Not available

29

MTD 735-0639

Spark Plug Boot

Note: (Optional)

$

$

Not available

30

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 6

0

32

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

Note: Code N (Includes Ref. 33 & 34.)

$16.99

$

In Stock, only 1 left!

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

In Stock, only 2 left!

0

34

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

36

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

39

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

41

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

MTD 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

45

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

MTD 738-0102

Front Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

MTD 720-0190

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 732-0417A

Spring Lever

$

$

Not available

49

MTD 14578

Height Adj. Ass'y. Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp. - L.H.
(Superseded to 753-06761)

Note: (Not Shown)

$65.99

$

In Stock, Qty 7

0

50

MTD 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar L.H.

Note: (Not Illustrated)

$19.99

$

Usually ships in 3-6 days

0

51

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 710-0654A

Hex L-Wash.Scr. 3/8-16 x 1" Lg.

$4.49

$

In Stock, only 3 left!

0

53

MTD 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

MTD 710-1017

Torx Mach AB-Tap Scr. 1/4 x.62" L.

$8.49

$

In Stock, Qty 9

0

55

MTD 710-0896

Hex Ind Wash. Scr. 1/4-14:.625

$4.49

$

In Stock, Qty 20+

0

56

MTD 682-0516

Handle Brkt. Ass'y.-R.H.
(Superseded to 682-0516-0637)

Variations

MTD 682-0516-0637

BRACKET-HGT ADJ-RH - POWDER BLACK (0637)

$

$

Not available

$

$

57

MTD 682-0515

Handle Brkt. Ass'y.-L.H.
(Superseded to 753-05994)

Variations

MTD 682-0515-0637

Handle Bracket Kit - POWDER BLACK (0637)

$82.99

$

Usually ships in 3-6 days

0

$82.99

$

Usually ships in 3-6 days

0

58

MTD 782-0047

21" R.D. w/ S.D. Feature

Variations

MTD 782-0047-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 782-0047-0662

Deck - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0047-0665

Deck - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0047-0667

No Longer Available - MIDNIGHT BLUE (0667)

$

$

Not available

$

$

59

MTD 734-1841

Wheel Assy Comp. Wheels w/o Bearings Grey, Aero Bar Tread
(Superseded to 934-1841)

$

$

Not available

59

MTD 734-1819

Wheel Assy Comp. Wheels with Bearings Grey Link Tread
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

59

MTD 734-1820

Wheel Assy Comp. Wheels with Bearings Beige Link Tread
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

59

MTD 734-1818

Wheel Assy Comp. Wheels with Bearings Yellow Link Tread
(Superseded to 734-1978)

$48.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

61

MTD 731-1322A

Hard Top Cover w/o Icon
(Superseded to 731-1876)

$

$

Not available

MTD 731-1876

Hard Top Cover w/Icon

$

$

Not available

62

MTD 736-0270

Bell-Washer 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

63

MTD 682-7000

Hinged Mulching Plug

$

$

Not available

64

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

MTD 710-0599

Hex Hd Self-Tp Scr. 1/4-20 x .5" L.

$4.49

$

In Stock, Qty 20+

0

66

MTD 782-5007A

Mulching Baffle Plug
(Superseded to 782-5007C)

$52.99

$

In Stock, only 1 left!

0

67

MTD 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

68

MTD 710-0286

Pan Hd. Mach. Scr. 1/4-20:.5" Lg.

$4.49

$

Usually ships in 3-6 days

0

69

MTD 712-0324

Hx. Nylon L-Nut - 1/4-20 Thread

$3.99

$

In Stock, Qty 16

0

70

MTD 782-9011

Mounting Bracket
(Superseded to 782-9011-0637)

Variations

MTD 782-9011-0637

BRACKET-MTG - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

?71

MTD 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

?72

MTD 720-0275

Knob

$

$

Not available

76

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

Note: (Used on units with ball bearing rear wheels.)

$4.49

$

In Stock, Qty 9

0

77

MTD 741-0484

Ball Bearings
(Superseded to 941-0484)

Note: (2 Req’d.)

$7.49

$

In Stock, only 1 left!

0

78

MTD 731-0981A

Hub Cap - Rad. Spoke - Grey
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

MTD 731-0982A

Hub Cap - Rad. Spoke - Beige
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

MTD 731-1426

Hub Cap - Rad. Spoke - Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

79

MTD 738-0102

Rear Axle Bolt

$9.99

$

In Stock, Qty 10

0

MTD 738-0213

Rear Axle Bolt

Note: (Used on units with ball bearing rear wheels.)

$7.99

$

In Stock, only 2 left!

0

80

MTD 750-0535

Spacer
(Superseded to 950-0535)

Note: (Used on units with ball bearing rear wheels.)

$4.49

$

In Stock, only 4 left!

0

81

MTD 731-1506

Cover - Front End - Yellow
(Superseded to 731-1506A)

$

$

Not available

MTD 731-1951

Cover - Front End - Black

$

$

Currently unavailable

MTD 731-1950

Cover - Front End - Oyster Grey

$

$

Not available

MTD 751B224437

Muffler Guard

Note: (B&S Quantum) (N/I)

$

$

Not available

MTD 751B225250

Muffler Guard

Note: (B&S Classic) (N/I)

$

$

Not available

MTD 751B281279

Finger Guard

Note: (B&S Classic) (N/I)

$

$

Not available

MTD 751B224591

Muffler Guard

Note: (Sprint)

$

$

Not available

MTD 710-1268

#10-16:3/8 Screw

Note: (N/I)

$4.49

$

In Stock, only 2 left!

0
