11A-429R766 - Troy-Bilt Walk-Behind Mower (2006) General Assembly Parts Diagram

Walk-Behind Mower

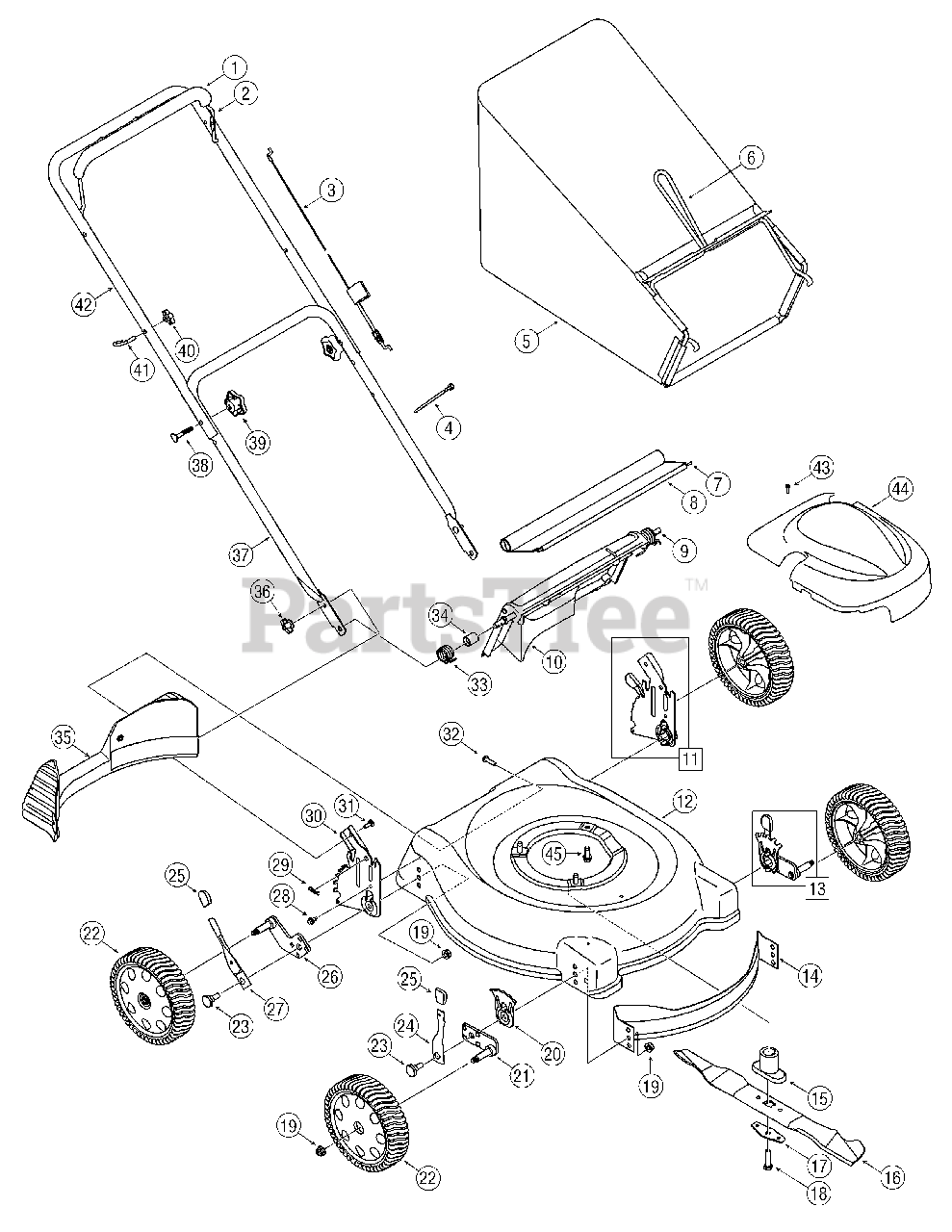

General Assembly Parts Diagram

  • Title
1

Troy-Bilt 731-04204

Blade Control Handle Cover

$11.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 747-1161A

Blade Control Handle

Variations

Troy-Bilt 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 746-1130

Control Cable - 40"
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 7

0

4

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 664-04011

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

6

Troy-Bilt 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

Troy-Bilt 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

7

Troy-Bilt 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

8

Troy-Bilt 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

9

Troy-Bilt 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 731-04134A

Rear Discharge Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 687-02068

Handle Bracket Assy - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 687-02069

Handle Bracket Assy - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 787-01276

21-inch Deck

Variations

Troy-Bilt 787-01276-0637

DECK:21" PUSH - POWDER BLACK (0637)

$227.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01276-0709

DECK:21" PUSH - MASTERCRAFT GREEN (0709)

$227.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01276-4043

DECK:21" PUSH - CRAFTSMAN METALLIC GRAY (4043)

$227.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01276-0665

DECK:21" PUSH - YARDMAN GREEN (0665)

$227.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01276-0691

DECK:21" PUSH - BLACK JACK (0691)

$227.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01276-0729

DECK:21" PUSH - STORM GRAY (0729)

$212.99

$

Usually ships in 3-6 days

0

Troy-Bilt 787-01276-0638

DECK:21" PUSH - MTD/TROY-BILT RED (0638)

$

$

Not available

$184.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 687-02074A

Height. Adj. Assy. Front - RH
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 687-02075A

Height Adj. Assy. Front - LH
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

15

Troy-Bilt 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 742-0741

Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 710-1257

HH Cap Screw, 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 787-01290

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

21

Troy-Bilt 687-02076A

Pivot Arm Assembly - LH
(Superseded to 987-02076A)

$

$

Not available

21

Troy-Bilt 687-02077A

Pivot Arm Assembly - RH
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

22

Troy-Bilt 734-04014B

Wheel, 8 x 2.125 Gray Idle S-Wave
(Superseded to 753-08175)

$43.99

$

In Stock, Qty 18

0

23

Troy-Bilt 738-0507B

Shoulder Screw .500 x .434

$4.49

$

In Stock, only 4 left!

0

24

Troy-Bilt 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

25

Troy-Bilt 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 687-02070A

Pivot Arm Assembly - LH
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

26

Troy-Bilt 687-02071A

Pivot Arm Assembly - RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 732-02078

Spring Lever

$

$

Currently unavailable

28

Troy-Bilt 710-1652

TT Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 787-01291

Rear Handle Bracket - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 787-01292

Rear Handle Bracket - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

31

Troy-Bilt 710-0703

Carriage Bolt, 1/4-20

$4.49

$

In Stock, Qty 15

0

32

Troy-Bilt 710-04371

HL Screw 1/4-15 x 1.00

$6.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 750-04162

Spacer
(Superseded to 950-04162)

$

$

Not available

35

Troy-Bilt 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

36

Troy-Bilt 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Troy-Bilt 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 710-1174

Carriage Bolt, 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

41

$3.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 749-1092A

Upper Handle

Variations

Troy-Bilt 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

Troy-Bilt 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 710-1256

HL Screw #8-18 x 1.25

$5.99

$

In Stock, only 2 left!

0

44

Troy-Bilt 751B699869

Engine Shroud
(Superseded to BS-790037)

$

$

Not available

45

Troy-Bilt 710-0654A

TT Screw 3/8-16 x 1

$4.49

$

In Stock, only 4 left!

0
