11A-414F352 - Yard Machines Walk-Behind Mower (2003) (Walmart) General Assembly (Steel Rear Door) Parts Diagram

Walk-Behind Mower

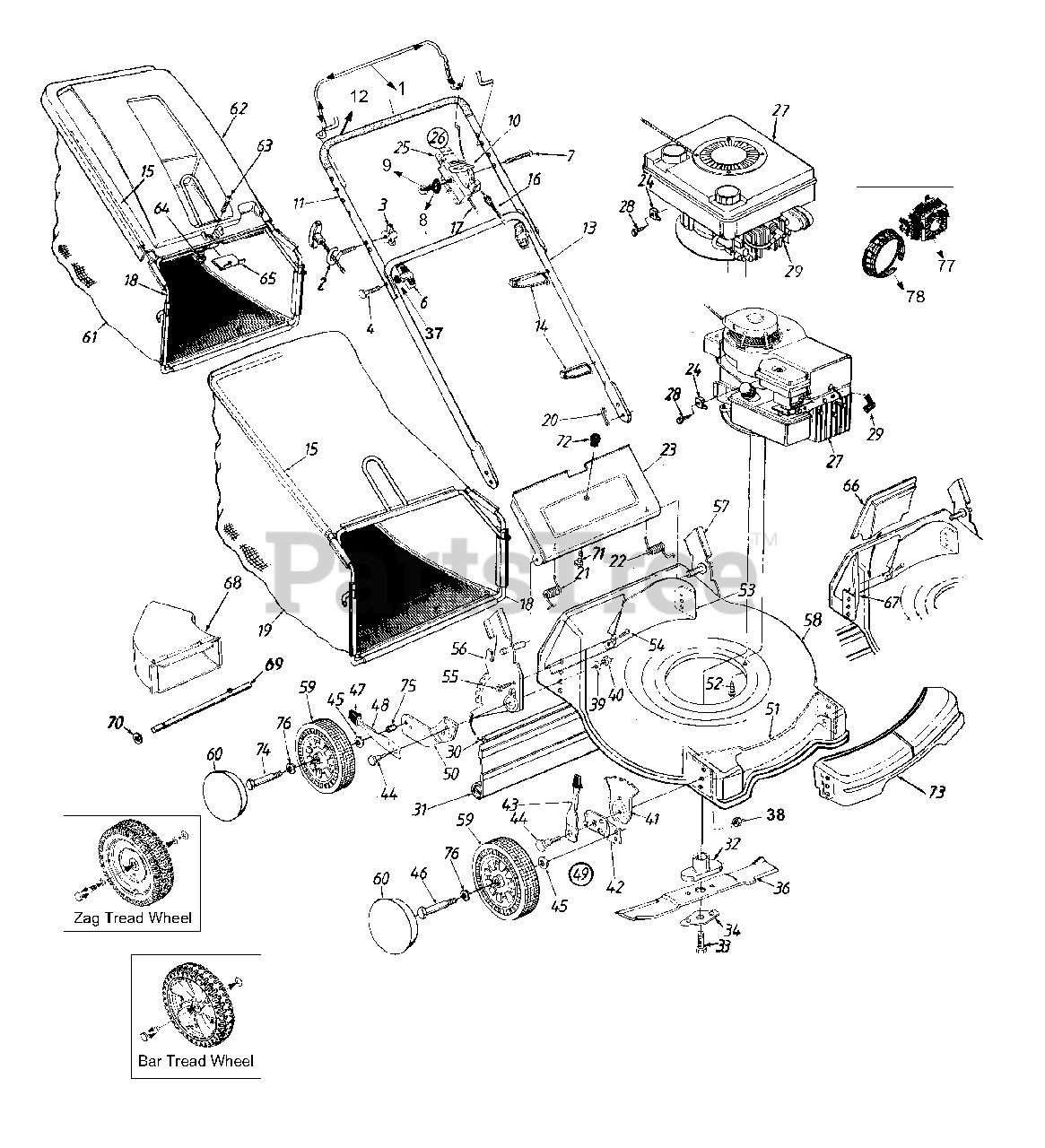

General Assembly (Steel Rear Door) Parts Diagram

  • Title

1

MTD 747-1161A

Control Handle (Std.)

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 3 left!

0

$13.99

$

In Stock, only 3 left!

0

2

MTD 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

3

MTD 720-0279

Handle Knob 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1174

Curved Hd. Bolt 5/16-18 x 2" Lg

$7.49

$

In Stock, Qty 20+

0

6

MTD 736-0451

Hand Knob

$4.49

$

In Stock, Qty 11

0

7

MTD 710-0605

Oval C-Sunk Mach. Scr.

Note: If equipped

$4.49

$

In Stock, only 3 left!

0

8

MTD 736-0501

Spring Washer .66" I.D.
(Superseded to 936-0501)

Note: If equipped

$6.99

$

Usually ships in 3-6 days

0

9

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

10

MTD 746-0876

Throttle Lever
(Superseded to 946-0876)

Note: If equipped

$8.49

$

In Stock, only 2 left!

0

11

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

MTD 749-0705

Upper Handle (Models with Honda engine only)

Variations

MTD 749-0705-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

12

MTD 720-0295

Foam Grip

Note: (Optional)

$33.99

$

Usually ships in 3-6 days

0

13

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

MTD 764-0310

Rear Catcher Frame
(Superseded to 764-0310A-0637)

Variations

MTD 764-0310-0637

Grass Catcher Bag Frame - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

16

MTD 746-0957

Control Cable- 37.25"
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

MTD 746-1130

Control Cable-40"
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 9

0

MTD 746-0554

Control Cable-40.5"
(Superseded to 946-0554)

$21.99

$

In Stock, only 4 left!

0

MTD 746-1137

Control Cable-52"
(Superseded to 946-1137)

$21.99

$

In Stock, only 4 left!

0

17

MTD 746-1110

Throttle Control Wire - 42"
(Superseded to 946-1115)

Note: If equipped

$28.99

$

In Stock, only 1 left!

0

18

MTD 764-0311

Front Catcher Frame
(Superseded to 764-0311-0637)

Variations

MTD 764-0311-0637

FRAME-CATCHER-FR - POWDER BLACK (0637)

$

$

Not available

$

$

19

MTD 764-0309

Grass Bag
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

MTD 764-0476A

Grass Bag w/Logo
(Superseded to 964-0309)

$151.99

$

Usually ships in 3-6 days

0

20

MTD 714-0104

Int. Cotter Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

21

MTD 732-0678

Door Spring - R.H.

$8.49

$

Usually ships in 3-6 days

0

22

MTD 732-0677

Door Spring - L.H.
(Superseded to 932-0677)

$

$

Not available

23

MTD 782-7000

Rear Discharge Door

Variations

MTD 782-7000-0483

DOOR-REAR DISCHARG - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-7000-0637

DOOR-REAR DISCHARG - POWDER BLACK (0637)

$

$

Not available

MTD 782-7000-0638

DOOR-REAR DISCHARG - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-7000-0662

DOOR-REAR DISCHARG - OYSTER GRAY (0662)

$

$

Not available

MTD 782-7000-0665

DOOR-REAR DISCHARG - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-7000-0674

No Longer Available DOOR-REAR - YARDMAN YELLOW (0674)

$

$

Not available

$

$

24

MTD 751B213146

Cable Clamp (B&S)
(Superseded to BS-690798)

Note: If equipped

$5.49

$

In Stock, only 1 left!

0

MTD 7510007775

Casing Clamp (Tec.)
(Superseded to TC-27793)

Note: If equipped

$1.99

$

In Stock, only 2 left!

0

25

MTD 646-0876

Throttle Body

Note: If equipped

$36.99

$

Usually ships in 3-6 days

0

26

MTD 811-00748

Throttle Box Comp. (Models with Honda engine only)

Note: If equipped

$46.99

$

Usually ships in 3-6 days

0

27

Engine

$

$

Not available

28

MTD 710-1237

Hex Wash. Hd. Scr. #10-32 x .62" Lg. (B&S)

Note: If equipped

$4.49

$

Usually ships in 3-6 days

0

29

MTD 735-0639

Spark Plug Boot

Note: If equipped

$

$

Not available

30

MTD 732-0700

Wire Rod
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

31

MTD 731-1236

Rear Flap
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 7

0

32

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

Note: (Incl. Ref. 33, 34)

$16.99

$

In Stock, only 1 left!

0

33

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

$3.99

$

Usually ships in 3-6 days

0

34

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 9

0

36

MTD 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

MTD 742-0641

21" Blade
(Superseded to 942-0641)

$29.99

$

Usually ships in 3-6 days

0

37

MTD 736-0451

Saddle Wash. .320 I.D. x .93 O.D.

$4.49

$

In Stock, Qty 11

0

38

MTD 712-0431

Flange L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

39

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

40

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, only 2 left!

0

41

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

42

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

43

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

44

MTD 738-0507B

Shld. Bolt .5" Dia. x .357"

$4.49

$

In Stock, only 4 left!

0

45

MTD 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

46

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

MTD 720-0426

Spring Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

MTD 732-0417A

Spring Lever

$

$

Not available

49

MTD 14578

Height Adj. Assembly Comp. - R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Assy. Comp. -L.H.
(Superseded to 753-06761)

Note: Not illustrated

$65.99

$

In Stock, Qty 7

0

50

MTD 14765

Pivot Bar R.H.

$19.99

$

Usually ships in 3-6 days

0

MTD 14766

Pivot Bar L.H.

Note: Not illustrated

$19.99

$

Usually ships in 3-6 days

0

51

MTD 782-5002

Front Baffle
(Superseded to 782P5002B)

Variations

MTD 782-5002-0637

Front Baffle - POWDER BLACK (0637)

$

$

Not available

$

$

52

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1"

$4.49

$

In Stock, only 3 left!

0

53

MTD 782-5003

Rear Baffle
(Superseded to 782-5003A)

Variations

MTD 782-5003-0637

Left Rear Baffle - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

54

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x 62"

$8.49

$

In Stock, Qty 9

0

55

MTD 710-0896

Wash.Scr. 1/4 -14 x .625

$4.49

$

In Stock, Qty 20+

0

56

MTD 682-0516A

Handle Bracket Assembly - R.H.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

57

MTD 682-0515A

Handle Bracket Assembly - L.H.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

58

MTD 782-0310A

21" R.D. Deck

Variations

MTD 782-0310A-0483

Deck - Charcoal - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-0310A-0606

Deck - Orange - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 782-0310A-0629

Deck - Silver - SILVER FLAKE (0629)

$

$

Not available

MTD 782-0310A-0638

Deck - MTD Red - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0310A-0662

Deck - Grey - OYSTER GRAY (0662)

$

$

Not available

MTD 782-0310A-0665

No Longer Available DECK ASM - YARDMAN GREEN (0665)

$

$

Not available

MTD 782-0310A-0674

No Longer Available - YARDMAN YELLOW (0674)

$

$

Not available

MTD 782-0310A-0691

Deck - Black - BLACK JACK (0691)

$

$

Not available

MTD 782-0310A-0717

No Longer Available DECK ASM - SILVER MIST (0717)

$

$

Not available

$

$

59

Wheel Assy. Comp.

Note: (See Wheel Chart )

$

$

Not available

60

MTD 731-0981A

Hub Cap - Gray , Rad. Spoke
(Superseded to 731-0981C)

Note: If equipped

$10.99

$

In Stock, only 2 left!

0

MTD 720-0249

Hub Cap - Gray, Euro
(Superseded to 920-0249)

Note: If equipped

$

$

Not available

61

MTD 764-0433

Grass Bag
(Superseded to 964-0433)

$

$

Not available

62

MTD 731-1322A

Hard Top Cover w/o Logo
(Superseded to 731-1876)

$

$

Not available

MTD 731-1876

Hard Top Cover w/Logo

$

$

Not available

63

MTD 710-0286

Pan Hd. Mach. Scr. 1/4-20 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

64

MTD 712-0324

Hex Nylon L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

65

MTD 782-9011

Mounting Bracket
(Superseded to 782-9011-0637)

Variations

MTD 782-9011-0637

BRACKET-MTG - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$9.49

$

Usually ships in 3-6 days

0

66

MTD 782-5007A

Mulching Baffle Plug
(Superseded to 782-5007C)

Note: If equipped

$52.99

$

In Stock, only 1 left!

0

67

MTD 782-5004

Mulching Baffle - R.R.
(Superseded to 782-5004B)

Note: If equipped

Variations

MTD 782-5004-0637

Rear Baffle, RH - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

MTD 782-5004-0638

Rear Baffle, RH - MTD/TROY-BILT RED (0638)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

68

MTD 731-1405

Deflector
(Superseded to 731-1405A)

Note: If equipped

$

$

Not available

69

MTD 711-0996

Rod

Note: If equipped

$45.99

$

Usually ships in 3-6 days

0

70

MTD 726-0201

Push Speed Nut

Note: If equipped

$6.99

$

Usually ships in 3-6 days

0

71

MTD 710-0192

Truss Scr. #10-24 x .38" Lg.

$3.99

$

In Stock, Qty 12

0

72

MTD 720-0275

Knob

$

$

Not available

73

MTD 731-1506

Deck: Front Cover
(Superseded to 731-1506A)

Note: If equipped

$

$

Not available

74

MTD 738-0213

Rear Axle Bolt

Note: If equipped

$7.99

$

In Stock, only 2 left!

0

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

75

MTD 750-0535

Spacer
(Superseded to 950-0535)

Note: If equipped

$4.49

$

In Stock, only 4 left!

0

76

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

Note: If equipped

$4.49

$

In Stock, Qty 9

0

77

UNKNOWN

$

$

Not available

78

UNKNOWN

$

$

Not available
