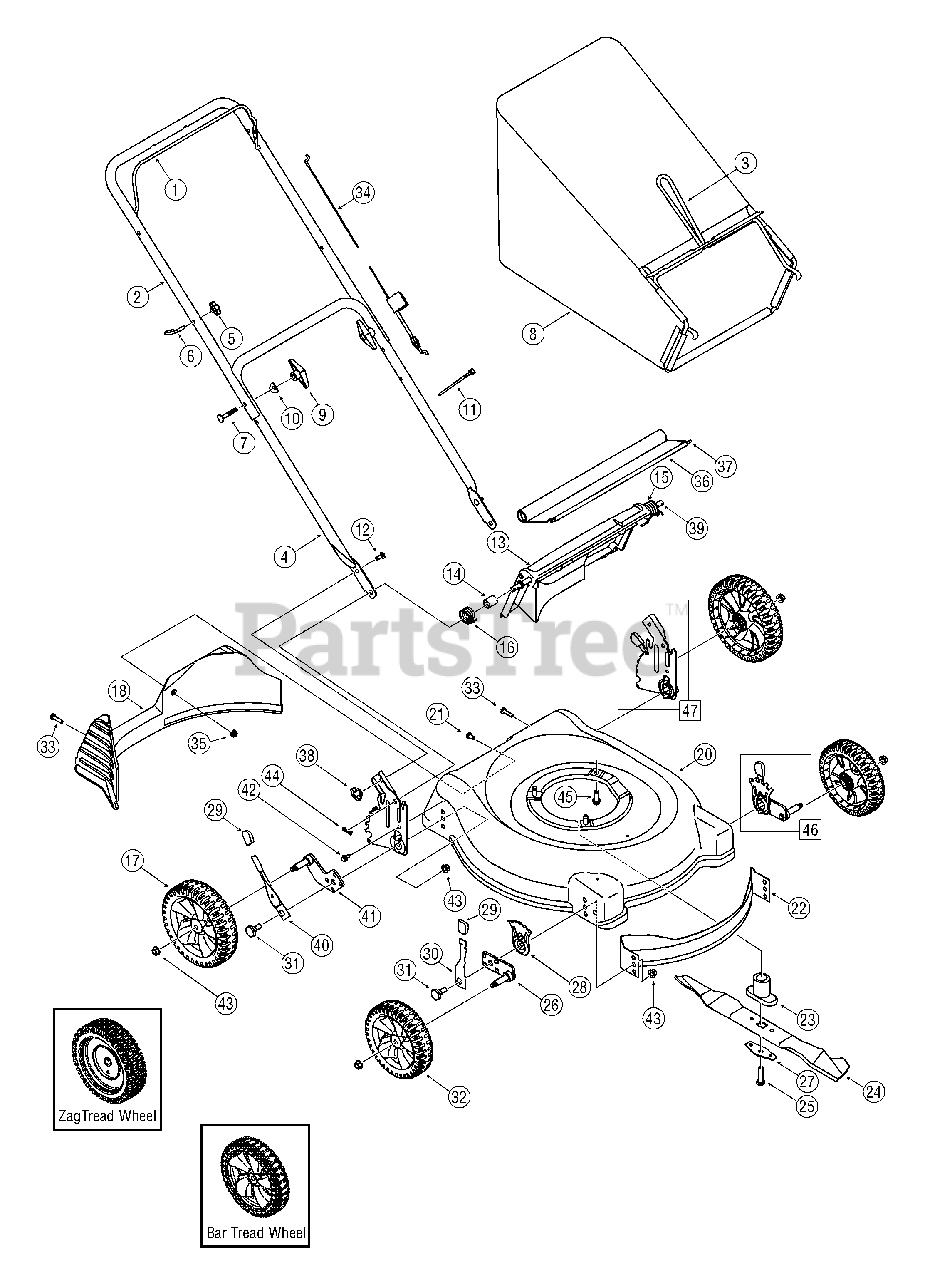

11A-414A752 - Yard Machines Walk-Behind Mower (2005) (Walmart) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 747-04080

Grass Catcher Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

4

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

5

MTD 720-0279

Wing Nut

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

7

MTD 710-1174

Carriage Bolt ,5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

8

MTD 664-04007

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

9

MTD 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

10

MTD 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

11

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

12

MTD 710-0703

Carriage Bolt, 1/4-20

$4.49

$

In Stock, Qty 15

0

13

MTD 731-04134

Rear Discharge Door
(Superseded to 931-04134)

$

$

Not available

14

MTD 750-04162

Spacer
(Superseded to 950-04162)

$

$

Not available

15

MTD 732-04089

Torsion Spring - LH
(Superseded to 732-04089A)

$7.99

$

Usually ships in 3-6 days

0

16

MTD 732-04090

Torsion Spring - RH
(Superseded to 732-04090A)

$7.99

$

Usually ships in 3-6 days

0

17

Rear Wheel

Note: Refer to "Wheel Chart"

$

$

Not available

18

MTD 731-04150

Rear Baffle
(Superseded to 731-04150C)

$42.99

$

In Stock, only 2 left!

0

19

MTD 731-0981A

Hubcap
(Superseded to 731-0981C)

Note: If equipped; (Not Shown)

$10.99

$

Usually ships in 3-6 days

0

20

MTD 787-01208

Deck - 21"
(Superseded to 753-05198-0665)

Variations

MTD 787-01208-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

MTD 710-0286

AB Screw, 10-16 x .500"

$4.49

$

Usually ships in 3-6 days

0

22

MTD 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

23

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, Qty 5

0

24

MTD 742-0741

Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1044

Hex Bolt , 3/8-24 x 1.5

$3.99

$

In Stock, Qty 9

0

26

MTD 687-02077

Pivot Arm Assembly -RH (8" wheel)
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

MTD 687-02077

Pivot Arm Assembly - LH (7" wheel)
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

MTD 687-02076

Pivot Arm Assembly - LH (8" wheel)
(Superseded to 987-02076A)

$

$

Not available

MTD 687-02076

Pivot Arm Assembly -RH (7" wheel)
(Superseded to 987-02076A)

$

$

Not available

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

28

MTD 15261C

Front Adjustment Plate

$

$

Currently unavailable

29

MTD 720-0426

Adjustment Lever Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

30

MTD 732-0404

Spring Lever Assembly
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

31

MTD 738-0507B

Shoulder Screw

$4.49

$

In Stock, only 4 left!

0

32

Front Wheel

Note: Refer to "Wheel Chart"

$

$

Not available

33

MTD 710-04371

Screw, 1/4-15 x 1.250

$6.99

$

Usually ships in 3-6 days

0

34

MTD 746-0957

Control Cable - 37.25"
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

MTD 746-1130

Control Cable -40"
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 11

0

MTD 746-0554

Control Cable - 40.5"
(Superseded to 946-0554)

$21.99

$

In Stock, only 4 left!

0

MTD 746-1137

Control Cable - 53"
(Superseded to 946-1137)

$21.99

$

In Stock, only 4 left!

0

35

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

36

MTD 731-1236A

Trailshield
(Superseded to 731-04998)

$31.99

$

In Stock, Qty 6

0

37

MTD 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

38

MTD 712-0397

Wing Nut, 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

MTD 747-04035

Rear Door Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

40

MTD 732-04175

Spring Lever

$11.99

$

In Stock, only 1 left!

0

41

MTD 687-02071

Pivot Arm Assembly - RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

MTD 687-02070

Pivot Arm Assembly - LH
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

42

MTD 710-1652

AB Screw

$4.49

$

In Stock, Qty 20+

0

43

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

44

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0654A

TT Sems Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

46

MTD 687-02074

Ht. Adj. Assy. Front - RH (8" Wheel)
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

MTD 687-02100

Ht. Adj. Assy. Front - RH (7" Wheel)
(Superseded to 987-02100C)

$38.99

$

In Stock, only 1 left!

0

MTD 687-02075

Ht. Adj. Assy. Front - LH (8" Wheel)
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

MTD 687-02099

Ht. Adj. Assy. Front - LH (7" Wheel)
(Superseded to 987-02099C)

$38.99

$

Usually ships in 3-6 days

0

47

MTD 687-02069

Rear Handle Bracket Assy. - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 687-02068

Rear Handle Bracket Assy. - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0
