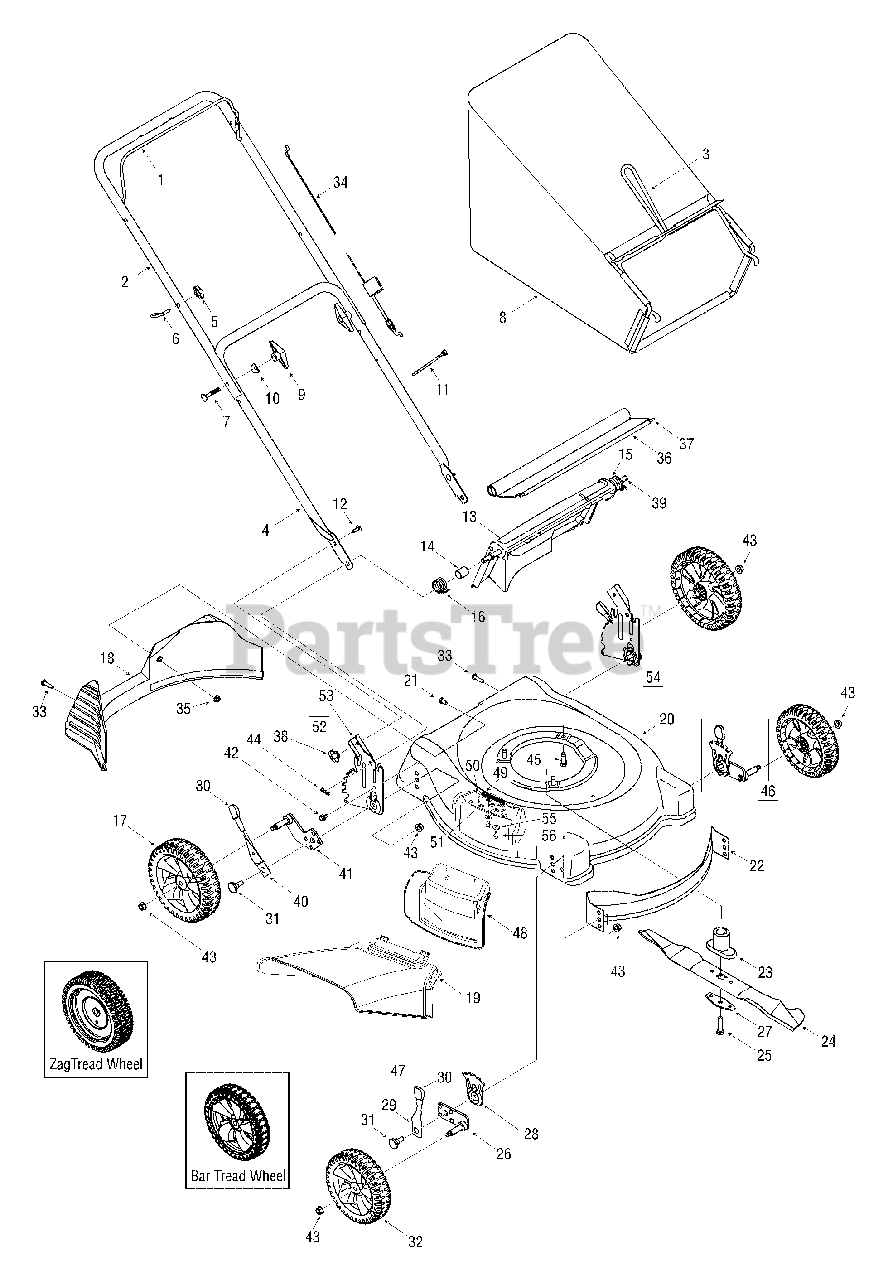

11A-413F800 - Yard Machines Walk-Behind Mower (2005) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control Handle - Black

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

2

MTD 749-1092A

Upper Handle -Black

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 747-04080

Catcher Lower Frame
(Superseded to 747-04080A)

Variations

MTD 747-04080-0637

FRAME-GRASSBAG 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

4

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

5

MTD 720-0279

Knob 1/4-20

$4.49

$

Usually ships in 3-6 days

0

6

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, only 1 left!

0

7

MTD 710-1174

Curved Carriage Bolt 5/16-18 x 2.00

$7.49

$

In Stock, Qty 20+

0

8

MTD 664-04007

Generic Grasscatcher Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

MTD 664-04027

Grasscatcher Bag YM
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

9

MTD 720-0284

Knob 5/16-18

$6.99

$

In Stock, Qty 20+

0

10

MTD 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

11

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

12

MTD 710-0703

Carriage Bolt 1/4-20 x .75 Gr. 1

$4.49

$

In Stock, Qty 15

0

13

MTD 731-04134A

RB Chute Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

14

MTD 750-04162

Spacer .390 x .810 x .950
(Superseded to 950-04162)

$

$

Not available

15

MTD 732-04089A

LH Torsion Spring

$7.99

$

Usually ships in 3-6 days

0

16

MTD 732-04090A

RH Torsion Spring

$7.99

$

Usually ships in 3-6 days

0

17

MTD 734-1987

Wheel Ass'y 8 x 1.8 Spoke Bar Grey

$23.99

$

In Stock, Qty 5

0

18

MTD 734-04150

RR Baffle

$

$

Currently unavailable

19

MTD 731-04177

Side Chute Deflector

$19.99

$

In Stock, Qty 20+

0

20

MTD 787-01231

21" Deck Ass'y
(Superseded to 753-05200)

Note: (Models with side discharge only)

Variations

MTD 787-01231-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 787-01231-0650

No Longer Available - RED METALLIC (0650)

$

$

Not available

$

$

MTD 787-01208

21" Deck Ass'y
(Superseded to 753-05198-0665)

Note: (Models without side discharge only)

Variations

MTD 787-01208-0665

SERVICE KIT:21" DE - YARDMAN GREEN (0665)

$

$

Not available

$

$

21

MTD 710-0286

Mach. Scr. Pan Phil. 1/4-20 x .50

$4.49

$

Usually ships in 3-6 days

0

22

MTD 782-5002B

Front Baffle 21"
(Superseded to 782P5002B)

$

$

Not available

23

MTD 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 3 left!

0

24

MTD 742-0641

21" Blade (w/star)
(Superseded to 942-0641)

$29.99

$

Usually ships in 3-6 days

0

MTD 742-0741

21" Mulching Blade (w/star)
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

25

MTD 710-1257

Hex Bolt 3/8-24 x 2.5" Lg. Gr. 8

$7.99

$

In Stock, only 2 left!

0

26

MTD 687-02077

Pivot Bar RH
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

MTD 687-02078

Pivot Bar LH
(Superseded to 987-02078)

$15.99

$

Usually ships in 3-6 days

0

27

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

28

MTD 15261C

Height Adjuster Plate

$

$

Currently unavailable

29

MTD 732-0404

Spring Lever Ass'y (w/knob)
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

30

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

31

MTD 738-0507B

Shoulder Screw .50 Dia.

$4.49

$

In Stock, only 4 left!

0

32

MTD 734-1988

Wheel Ass'y 7 x 1.8 Spoke Bar Grey

$20.99

$

In Stock, only 4 left!

0

33

MTD 710-04371

Hex. L-Scr. 1/4-15 x 1.5

$6.99

$

Usually ships in 3-6 days

0

34

MTD 746-1137

Control Cable 53.0" Lg. Snap-on
(Superseded to 946-1137)

$21.99

$

In Stock, only 4 left!

0

35

MTD 712-04064

Flanged Lock Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

36

MTD 731-04998

Rear Flap

$31.99

$

In Stock, Qty 6

0

37

MTD 732-0700

Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

38

MTD 712-0397

Wingnut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

39

MTD 747-04035

Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

40

MTD 687-02078

Spring Lever SP (w/knob)
(Superseded to 987-02078)

$15.99

$

Usually ships in 3-6 days

0

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

41

MTD 687-02071

Pivot Bar RH SP
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

MTD 687-02070

Pivot Bar LH SP
(Superseded to 987-02070A)

Note: (not shown)

$20.99

$

In Stock, only 1 left!

0

42

MTD 710-1652

Hex HD. TT Tap Scr. 1/4-20 x 5/8

$4.49

$

In Stock, Qty 20+

0

43

MTD 712-0431

Flange Locknut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

44

MTD 714-0104

Int. Cotter Pin 5/16 DIA

$4.49

$

In Stock, Qty 20+

0

45

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 3 left!

0

46

MTD 687-02099

Height Adj. Ass'y LH (w/knob)
(Superseded to 987-02099C)

Note: (not shown)

$38.99

$

Usually ships in 3-6 days

0

47

MTD 687-02100

Height Adj. Ass'y RH (w/knob)
(Superseded to 987-02100C)

$38.99

$

In Stock, only 1 left!

0

48

MTD 687-02055

Mulching Plug Ass'y
(Superseded to 987-02055)

Note: (Incl. Mulching Plug and items 49-51)

$27.99

$

In Stock, Qty 8

0

MTD 731-04161

Mulching Plug
(Superseded to 987-02055)

$27.99

$

In Stock, Qty 8

0

49

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

50

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

51

MTD 17032A

Plug Adapter

$10.99

$

In Stock, only 2 left!

0

52

MTD 687-02068

RH Rear Height Adj. Ass'y Complete
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

53

MTD 787-01144A

RH Height Adj. Brkt.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

54

MTD 687-02069

LH Rear Height Adj. Ass'y Complete
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

MTD 787-01143A

LH Height Adj. Brkt.
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

55

MTD 736-0270

Cupp. Wash. .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

56

MTD 710-0599

Hex Wash SF Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+
