11A-109T401 - Yard-Man Walk-Behind Mower (2001) General Assembly Parts Diagram

Walk-Behind Mower

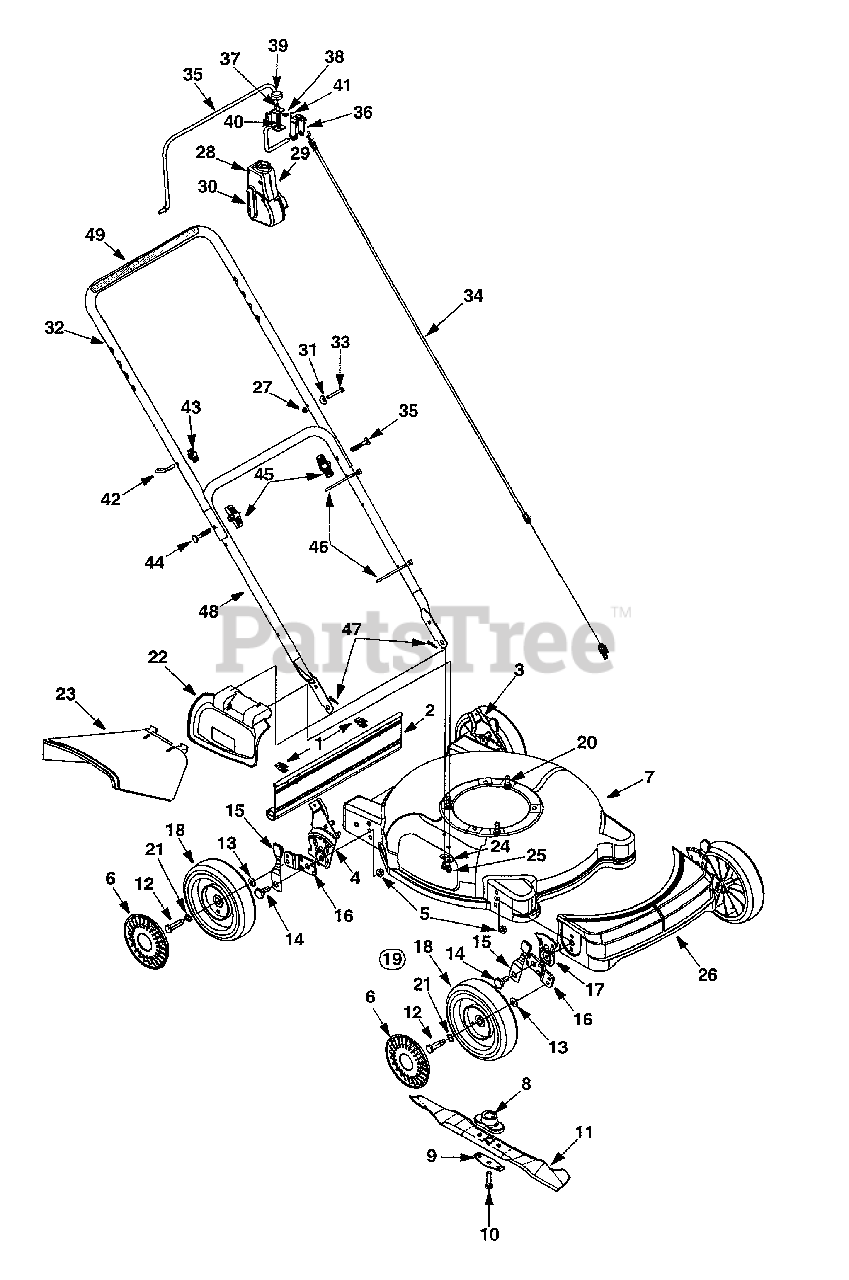

General Assembly Parts Diagram

  • Title

1

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

2

MTD 731-0872A

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

3

MTD 682-3025

Handle Bracket Ass'y LH
(Superseded to 987-02107A)

Variations

MTD 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

4

MTD 682-3024

Handle Bracket Ass'y RH
(Superseded to 987-02106A)

Variations

MTD 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

5

MTD 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

6

MTD 731-1426

Hub Cap-Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

7

MTD 682-0139

Deck Assembly

Variations

MTD 682-0139-0606

DECK ASM- 20" - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 682-0139-0665

"No Longer Available DECK ASM- 20""" - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0139-0498

No Longer Available DECK ASM- 2 - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-0139-0629

DECK ASM- 20" - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0139-0638

"No Longer Available DECK ASM- 20""" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0139-0650

DECK ASM- 20" - RED METALLIC (0650)

$

$

Not available

MTD 682-0139-0662

DECK ASM- 20" - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0139-0668

DECK ASM- 20" - MOSS GREEN (0668)

$

$

Not available

MTD 682-0139-0689

DECK ASM- 20" - POLO GREEN (0689)

$

$

Not available

MTD 682-0139-0691

DECK ASM- 20" - BLACK JACK (0691)

$

$

Not available

MTD 682-0139-0709

DECK ASM- 20" - MASTERCRAFT GREEN (0709)

$

$

Not available

MTD 682-0139-0716

DECK ASM- 20" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 682-0139-4021

DECK ASM- 20" - CUB YELLOW 2 (4021)

$

$

Not available

$

$

8

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

9

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 17

0

10

MTD 710-1044

Hex Bolt 7/16-20 x .88"

$3.99

$

In Stock, Qty 7

0

11

MTD 742-0740

20" Mulch Blade
(Superseded to 942-0740)

$23.99

$

In Stock, only 3 left!

0

12

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

13

MTD 736-0105

Bell Washer .400" ID x .88"

$4.49

$

In Stock, Qty 20+

0

14

MTD 738-05078

Shoulder Bolt
(Superseded to 938-05078)

$56.99

$

In Stock, Qty 20+

0

15

MTD 14832

Spring Lever Ass'y w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

16

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

17

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

18

MTD 734-1978

Wheel Assembly

$48.99

$

Usually ships in 3-6 days

0

19

MTD 14578

Height Adj. Ass'y Comp.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y Comp.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

20

MTD 710-0654A

Hex Lock Wash. Hd. Screw

$4.49

$

In Stock, only 3 left!

0

21

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

22

MTD 682-7002

Mulching Plug

$

$

Not available

23

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

24

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-0599

Hex Wash. Hd. Tf Screw 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

26

MTD 731-1933

Cover: Front End

$

$

Not available

27

MTD 712-0324

Hex Lock Nut 1/4-20 Gr. 8

$3.99

$

In Stock, Qty 16

0

28

MTD 710-1256

Hi-Low Screw

$5.99

$

In Stock, only 3 left!

0

29

MTD 731-2532

Control Cover LH

$

$

Not available

30

MTD 731-2533

Control Cover RH

$

$

Not available

31

MTD 736-0451

Saddle Washer

$4.49

$

Usually ships in 3-6 days

0

32

MTD 749-1406

Upper Handle
(Superseded to 749-1406A-0637)

Variations

MTD 749-1406-0637

HANDLE-UPR EX LONG - POWDER BLACK (0637)

$

$

Not available

$

$

33

MTD 710-0501

Hex Hd. Cap Screw 1/4-20 Gr. 5

$7.49

$

Usually ships in 3-6 days

0

34

MTD 746-1141

Control Cable 56.75" Lg.
(Superseded to 946-1141)

$52.99

$

In Stock, only 3 left!

0

35

MTD 647-0058

Control Bail Lever
(Superseded to 647-0058-0637)

Variations

MTD 647-0058-0637

Control Handle - POWDER BLACK (0637)

$

$

Not available

$

$

36

MTD 782-0156

Lever

$

$

Not available

37

MTD 715-0168

Pin

$

$

Not available

38

MTD 716-0209

Retention Ring

$

$

Not available

39

MTD 720-0428

Button

$8.99

$

Usually ships in 3-6 days

0

40

MTD 732-1171

Compression Spring

$

$

Not available

41

MTD 732-1172

Torsion Spring

$

$

Not available

42

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

43

MTD 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

44

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

45

MTD 720-0314

Hand Knob

$6.49

$

In Stock, only 1 left!

0

46

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

47

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

48

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 3 left!

0

$33.99

$

In Stock, only 3 left!

0

49

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0
