11A-109Q597 - Columbia 20" Walk-Behind Mower (2008) General Assembly Parts Diagram

20" Walk-Behind Mower

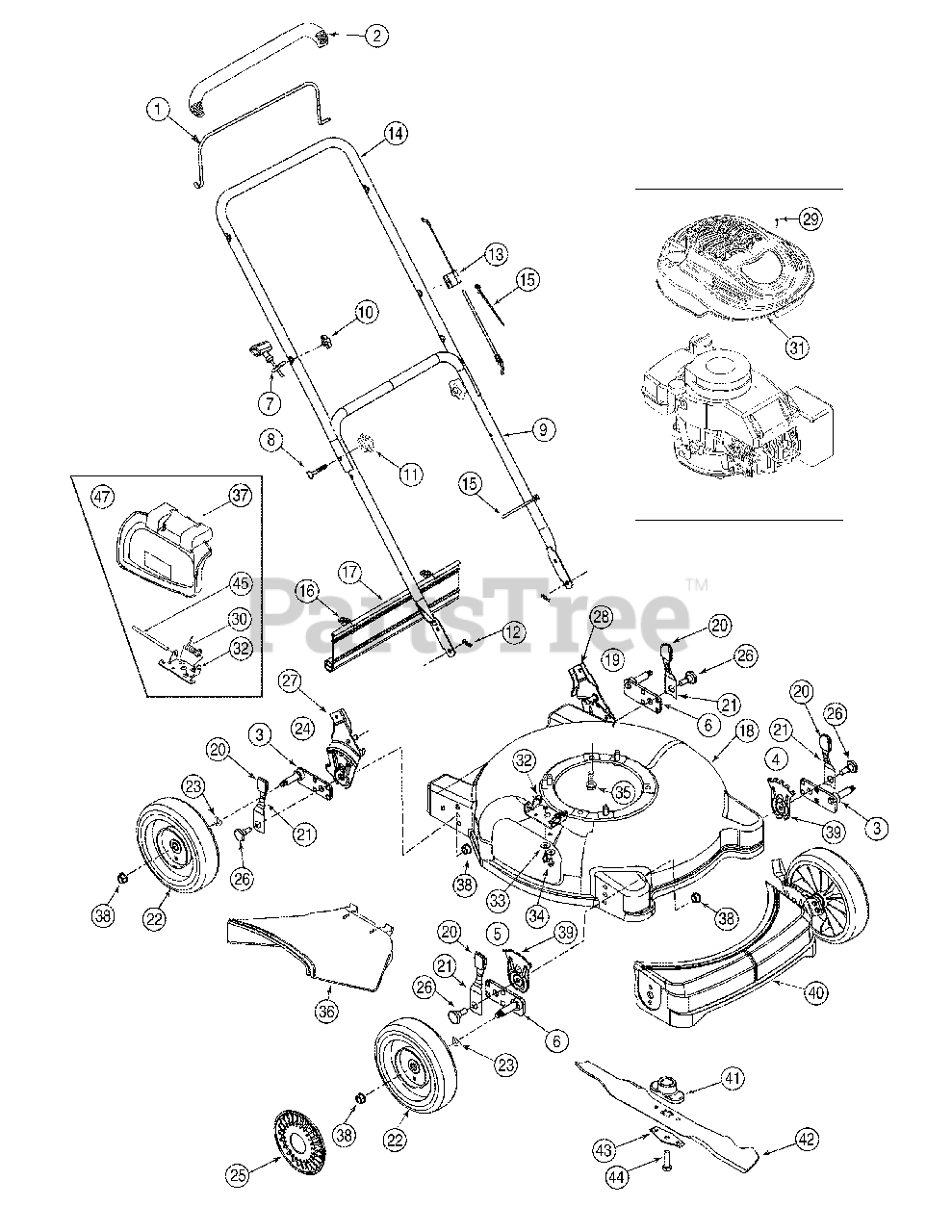

General Assembly Parts Diagram

  • Title

1

White Outdoor 747-1161A

Blade Control Handle

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 4 left!

0

$13.99

$

In Stock, only 4 left!

0

2

White Outdoor 731-2626

Deluxe Cover - Black

$11.99

$

In Stock, only 2 left!

0

2

White Outdoor 731-04204

Deluxe Cover - Red

$11.99

$

In Stock, only 4 left!

0

2

White Outdoor 731-04859

Deluxe Cover - Grey

$11.99

$

Usually ships in 3-6 days

0

3

White Outdoor 687-02338

Pivot Arm LH
(Superseded to 987-02338)

$17.99

$

Usually ships in 3-6 days

0

4

White Outdoor 687-02075B

Hgt. Adjust Ass’y LH
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

5

White Outdoor 687-02074B

Hgt. Adjust Ass’y RH
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

6

White Outdoor 687-02337

Pivot Arm RH
(Superseded to 987-02337)

$17.99

$

In Stock, only 1 left!

0

7

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, only 1 left!

0

8

White Outdoor 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

9

749-0928B

Lower Handle

$

$

Not available

10

White Outdoor 720-0279

Knob - ERS Guide 1/4-20

$4.49

$

Usually ships in 3-6 days

0

11

White Outdoor 720-04072

Knob - Star 5/16-18
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

12

White Outdoor 714-0104

Int. Cotter Pin .072 x 1.13" Lg.

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 746-0957

Control Cable 37.25 " Lg. (Honda)
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

14

White Outdoor 749-1092A

Upper Handle

Variations

White Outdoor 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

15

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

16

White Outdoor 731-04019

Rear Flap

$21.99

$

In Stock, Qty 12

0

17

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

White Outdoor 682-0139

Deck Assembly

Variations

White Outdoor 682-0139-0606

DECK ASSY-20" MAJE - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-0139-0665

DECK ASSY- 20" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-0139-0629

DECK ASSY- 20" - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-0139-0638

DECK ASSY- 20" - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-0139-0650

DECK ASSY- 20" - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-0139-0662

DECK ASSEMBLY-OYSTER GREY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-0139-0668

DECK ASSY- 20" - MOSS GREEN (0668)

$

$

Not available

White Outdoor 682-0139-0689

DECK ASSY- 20" - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-0139-0691

DECK ASSY- 20" - BLACK JACK (0691)

$

$

Not available

White Outdoor 682-0139-0709

DECK ASSY- 20" - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 682-0139-0716

DECK ASSY- 20" - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-0139-4021

DECK ASSY- 20" - CUB YELLOW 2 (4021)

$

$

Not available

$

$

19

White Outdoor 687-02107

Rear Hgt. Adjust Ass’y LH
(Superseded to 987-02107A)

$45.99

$

In Stock, only 3 left!

0

20

White Outdoor 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

21

White Outdoor 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

22

White Outdoor 734-2004A

Wheel Ass'y 8" x 2.125" Idle BB
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

22

White Outdoor 734-04033

Wheel Ass'y 8" x 2.0" S-Wave BB
(Superseded to 753-08091)

$46.99

$

In Stock, Qty 13

0

23

White Outdoor 736-0504

Wave Washer .51" ID (w/bb wheels)
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 10

0

24

White Outdoor 687-02106

Rear Hgt. Adjust Ass’y RH
(Superseded to 987-02106A)

$52.99

$

Usually ships in 3-6 days

0

25

White Outdoor 731-1426A

Hub Cap - Yellow Radial (optional)
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

25

White Outdoor 731-0981A

Hub Cap - Grey Radial (optional)
(Superseded to 731-0981C)

$10.99

$

Usually ships in 3-6 days

0

25

White Outdoor 731-0982A

Hub Cap - Grey Radial (optional)
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

26

White Outdoor 738-04266

Shoulder Screw .50 Dia. x .385

$6.49

$

Usually ships in 3-6 days

0

27

White Outdoor 687-02180

Adjust/Brkt. Ass’y RH
(Superseded to 687-02180-0637)

Variations

White Outdoor 687-02180-0637

Handle Bracket Assembly - POWDER BLACK (0637)

$60.99

$

Usually ships in 3-6 days

0

$60.99

$

Usually ships in 3-6 days

0

28

White Outdoor 687-02179

Adjust/Brkt. Ass’y LH
(Superseded to 687-02179-0637)

Variations

White Outdoor 687-02179-0637

Handle Bracket Assembly - POWDER BLACK (0637)

$63.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

29

White Outdoor 7510042823

Screw

$

$

Not available

30

White Outdoor 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

31

White Outdoor 731-04525

Shroud - Yellow
(Superseded to 931-04525)

$51.99

$

Usually ships in 3-6 days

0

32

White Outdoor 782-7006

Hinged Adapter

Variations

White Outdoor 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

33

White Outdoor 736-0270

Cupped Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

35

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 3 left!

0

36

White Outdoor 731-1409B

Chute Deflector

$28.99

$

In Stock, Qty 5

0

37

White Outdoor 731-1501A

Mulching Plug
(Superseded to 682-7002)

$

$

Not available

38

White Outdoor 712-04065

Flanged Lock Nut 3/8-16 Gr. F

$3.99

$

In Stock, Qty 20+

0

39

White Outdoor 787-01290A

Height Adjuster Plate

$12.99

$

In Stock, only 2 left!

0

40

White Outdoor 731-1933

Front End Cover -Yellow (optional)

$

$

Not available

40

White Outdoor 731-1949

Front End Cover-Black (optional)
(Superseded to 931-1949B)

$

$

Not available

41

White Outdoor 748-04096

Blade Adapter

$22.99

$

In Stock, Qty 20+

0

42

White Outdoor 742-0740

20" Mulching Blade
(Superseded to 942-0740)

$23.99

$

In Stock, only 3 left!

0

43

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

44

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Grade 8)

$3.99

$

In Stock, Qty 9

0

45

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

47

White Outdoor 682-7002

Hinged Mulching Plug Ass'y

$

$

Not available
