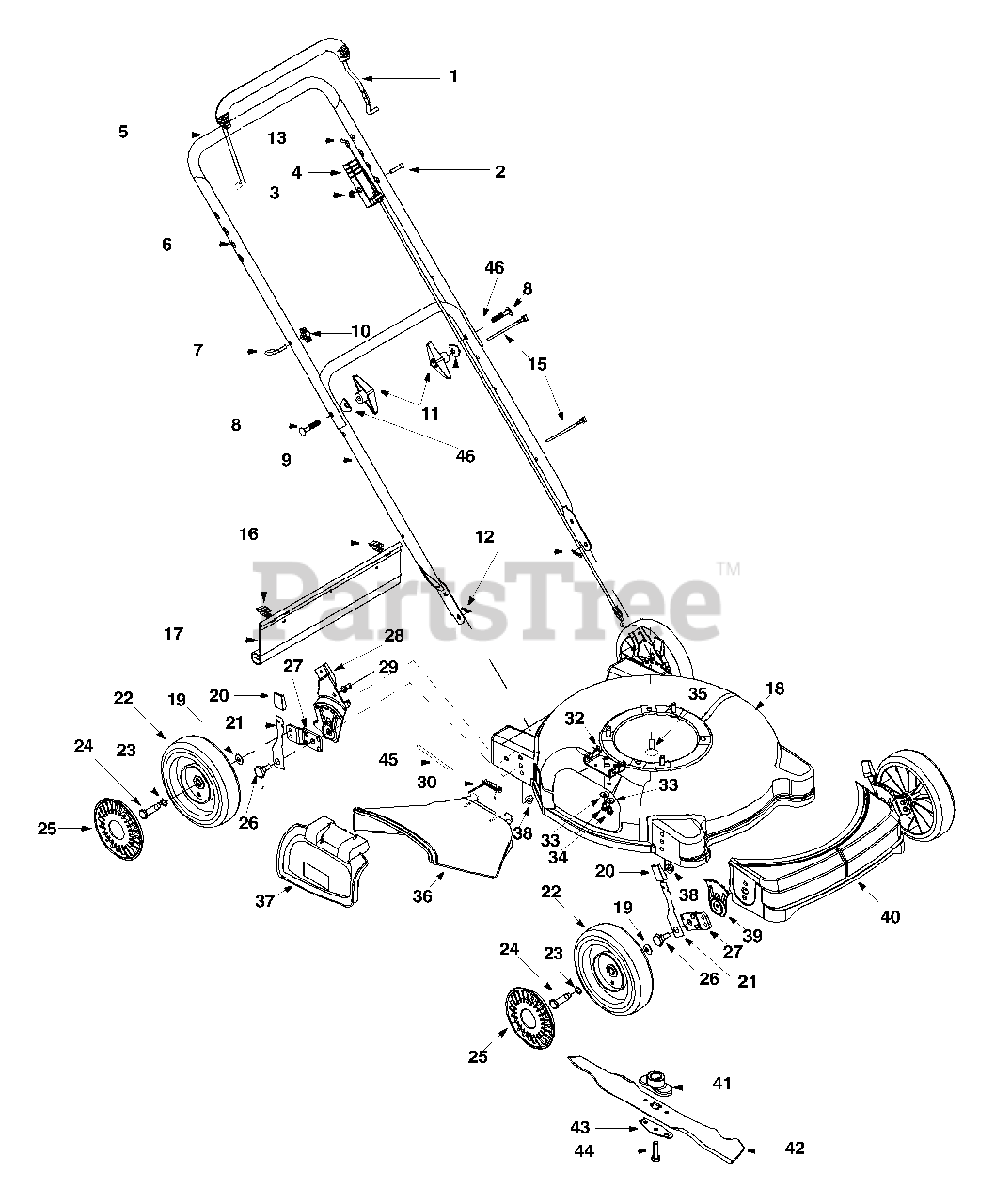

11A-106N063 - Troy-Bilt Tru-Cut 100 Walk-Behind Mower (2002) General Assembly Parts Diagram

Tru-Cut 100 Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Troy-Bilt 647-0004

Control Handle Assembly
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

3

Troy-Bilt 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 16

0

4

Troy-Bilt 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

5

Troy-Bilt 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

6

MTD 749-0705

Upper Handle

Variations

Troy-Bilt 749-0705-0637

UPPER HANDLE - POWDER BLACK (0637)

$

$

Not available

$

$

7

Troy-Bilt 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

9

Troy-Bilt 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

Troy-Bilt 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

10

Troy-Bilt 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 746-0554

Control Cable 40.5"
(Superseded to 946-0554)

$21.99

$

In Stock, only 4 left!

0

15

Troy-Bilt 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

17

Troy-Bilt 731-0872A

Trail Shield
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

18

Troy-Bilt 682-0139

Cutting Deck Assembly: 20"

Variations

Troy-Bilt 682-0139-0606

DECK ASM- 20" - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 682-0139-0498

DECK ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 682-0139-0629

DECK ASM- 20" - SILVER FLAKE (0629)

$

$

Not available

Troy-Bilt 682-0139-0650

DECK ASM- 20" - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 682-0139-0662

DECK ASM- 20" - OYSTER GRAY (0662)

$

$

Not available

Troy-Bilt 682-0139-0668

DECK ASM- 20" - MOSS GREEN (0668)

$

$

Not available

Troy-Bilt 682-0139-0689

DECK ASM- 20" - POLO GREEN (0689)

$

$

Not available

Troy-Bilt 682-0139-0691

DECK ASM- 20" - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 682-0139-0709

DECK ASM- 20" - MASTERCRAFT GREEN (0709)

$

$

Not available

Troy-Bilt 682-0139-0716

DECK ASM- 20" - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 682-0139-4021

DECK ASM- 20" - CUB YELLOW 2 (4021)

$

$

Not available

$

$

19

Troy-Bilt 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

20

Troy-Bilt 720-0426

Knob: Height Adjustment
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 732-0404

Lever: Spring
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

22

Troy-Bilt 734-2004A

Wheel Assembly
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

23

Troy-Bilt 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

24

Troy-Bilt 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

25

Troy-Bilt 731-0981A

Hubcap: Radial Spoke
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

26

Troy-Bilt 738-0507B

Shoulder Bolt

$4.49

$

In Stock, only 4 left!

0

27

Troy-Bilt 15262B

Pivot Bar

Variations

Troy-Bilt 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 682-3024

Handle Bracket Assy. RH
(Superseded to 987-02106A)

Variations

Troy-Bilt 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

Troy-Bilt 682-3025

Handle Bracket Assy. LH
(Superseded to 987-02107A)

Note: Not shown in illustration

Variations

Troy-Bilt 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

29

Troy-Bilt 738-0585

Stake Bolt

$

$

Currently unavailable

30

Troy-Bilt 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

?31

Troy-Bilt 14578

Height Adjust. Assembly RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

Troy-Bilt 14579

Height Adjust. Assy. LH
(Superseded to 753-06761)

Note: Not shown in illustration

$65.99

$

In Stock, Qty 7

0

32

Troy-Bilt 782-7006

Mounting Bracket

Variations

Troy-Bilt 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 710-0599

Hex Washer Hd. TT Screw

$4.49

$

In Stock, Qty 20+

0

35

Troy-Bilt 710-0654A

TT Sems Screw

$4.49

$

In Stock, only 4 left!

0

36

Troy-Bilt 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

37

Troy-Bilt 682-7002

Mulching Plug Assembly

$

$

Not available

38

Troy-Bilt 712-0431

Hex Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 15261A

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

40

Troy-Bilt 731-1949

Cover: Front End
(Superseded to 931-1949B)

$

$

Not available

41

Troy-Bilt 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

Troy-Bilt 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 742-0740

20" Mulching Blade
(Superseded to 942-0740)

$23.99

$

In Stock, Qty 5

0

43

Troy-Bilt 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 710-1044

Hex Bolt

$3.99

$

In Stock, only 1 left!

0

45

Troy-Bilt 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

Troy-Bilt BS-698875

Engine Shroud Red
(Superseded to BS-790037)

Note: (Not Shown)

$

$

Not available

Troy-Bilt 751B282175

Engine Shroud Black

Note: (Not Shown)

$

$

Not available
