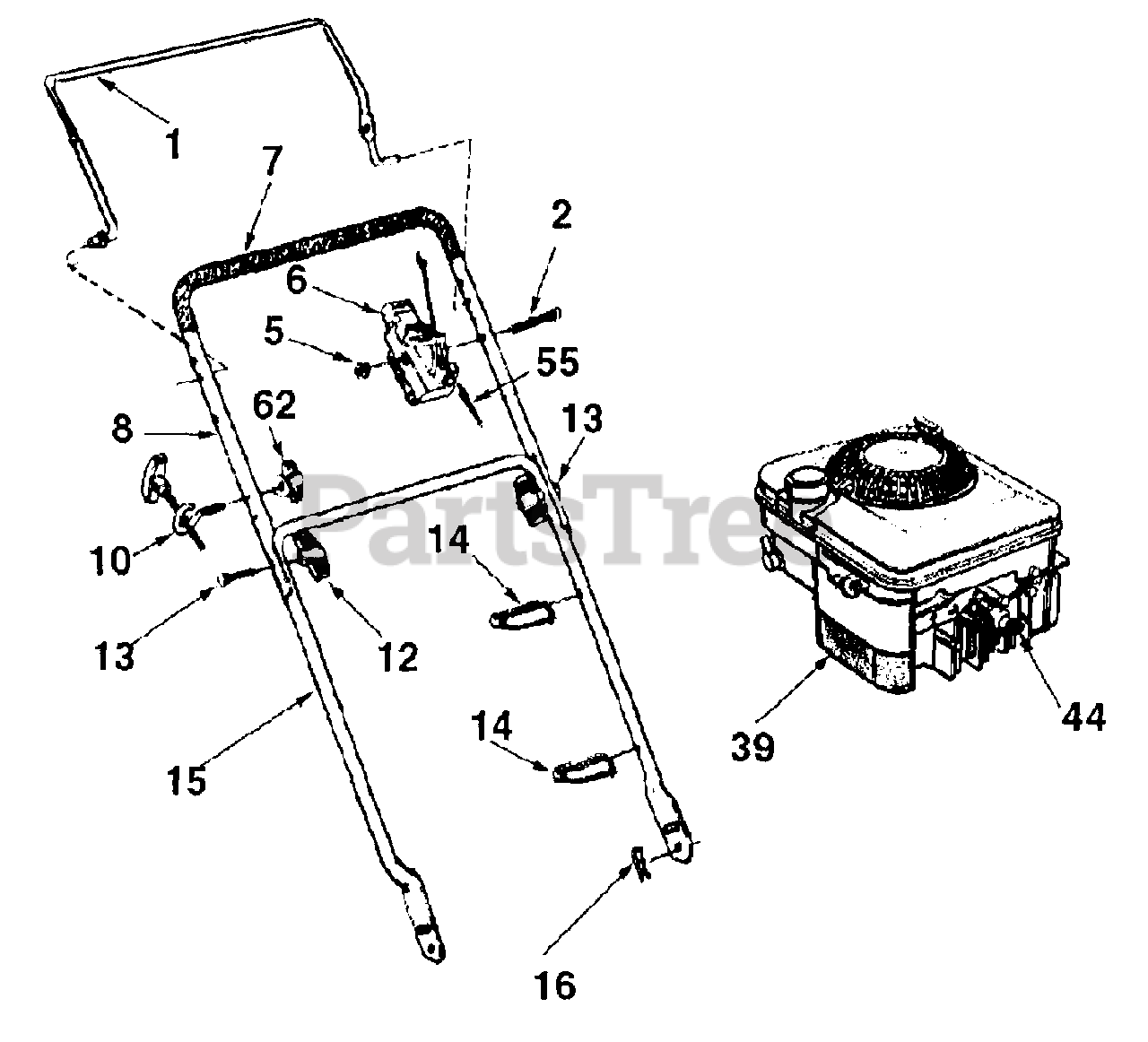

11A-106C402 - Yard-Man Walk-Behind Mower (2000) (Sears) Handles Parts Diagram

Walk-Behind Mower

Handles Parts Diagram

  • Title

1

MTD 747-0824

Control Handle Ass'y.
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

2

MTD 710-1270

Oval C-Sunk Screw

$4.49

$

Usually ships in 3-6 days

0

5

MTD 712-0324

Hex Lock Nut

$3.99

$

In Stock, Qty 16

0

6

MTD 746-0883

Control Housing

$16.99

$

In Stock, only 4 left!

0

7

MTD 720-0295

Foam Grip

$33.99

$

Usually ships in 3-6 days

0

8

MTD 749-0705

Upper Handle

Variations

MTD 749-0705-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

10

MTD 710-1205

Rope Guide

$3.99

$

In Stock, only 2 left!

0

12

MTD 720-0276

Hand Knob
(Superseded to 920-0276)

$3.99

$

In Stock, Qty 9

0

13

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

14

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

15

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

16

MTD 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

39

Engine

$

$

Not available

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

55

MTD 746-0550

Control Cable
(Superseded to 946-0550)

$21.99

$

In Stock, only 3 left!

0

62

MTD 720-0279

Handle Knob

$4.49

$

In Stock, only 4 left!

0

MTD 777S30118

Danger Label (Cut Hand)

$11.99

$

In Stock, only 1 left!

0

MTD 777S30143

Danger Label

$

$

Not available

MTD 777S30108

Discharge Door Label

$

$

Not available
