11A-106C402 - Yard-Man Walk-Behind Mower (1999) (Sears) Deck Assembly Parts Diagram

Walk-Behind Mower

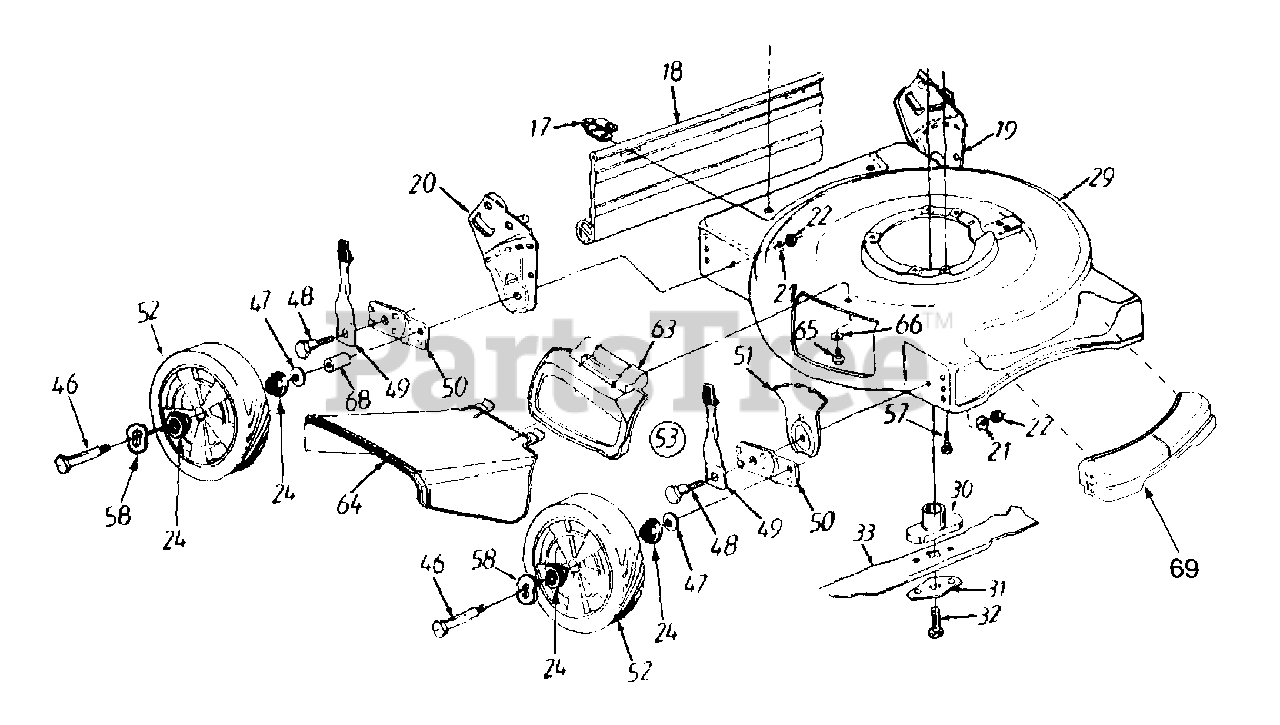

Deck Assembly Parts Diagram

  • Title

17

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

18

MTD 731-0872A

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

19

MTD 682-3025

Handle Bracket Ass'y LH
(Superseded to 987-02107A)

Variations

MTD 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

20

MTD 682-3024

Handle Bracket Ass'y RH
(Superseded to 987-02106A)

Variations

MTD 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

21

MTD 736-0356

Bell Washer .39" ID x 1.38"
(Superseded to 936-0356)

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 12

0

?23

MTD 731-1426

Hub Cap: Yellow
(Superseded to 731-1426B)

$8.99

$

Usually ships in 3-6 days

0

24

MTD 741-0484

Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

29

MTD 682-0025A

Deck Assembly
(Superseded to 682-0139)

Variations

MTD 682-0025A-0665

Deck Assembly - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0025A-0498

No Longer Available DECK ASM- 2 - OLD CUB YELLOW (0498)

$

$

Not available

MTD 682-0025A-0629

DECK ASM- 20" - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0025A-0638

No Longer Available DECKASM-2 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0025A-0662

DECK ASM- 20" - OYSTER GRAY (0662)

$

$

Not available

MTD 682-0025A-0691

DECK ASM- 20" - BLACK JACK (0691)

$

$

Not available

$

$

30

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

31

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

32

MTD 710-1044

Hex Bolt 7/16-20 x 1.5"

$3.99

$

In Stock, only 2 left!

0

33

MTD 742-0740

20" Mulch Blade
(Superseded to 942-0740)

$23.99

$

In Stock, Qty 5

0

MTD 742-0738

18" Mulch Blade
(Superseded to 942-0738)

$28.99

$

Usually ships in 3-6 days

0

46

MTD 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

47

MTD 736-0105

Bell Washer .400" ID x .88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 738-0507B

Shoulder Bolt

$4.49

$

In Stock, Qty 20+

0

49

MTD 14832

Spring Lever Assy. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

52

MTD 734-1978

Wheel Assembly

$48.99

$

Usually ships in 3-6 days

0

53

MTD 14578

Height Adj. Ass'y. Comp. R.F. & L.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Height Adj. Ass'y. Comp. L.F. & R.R.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

57

MTD 710-0654A

Hex Lock Washer Screw 3/8-16 x 1.0"

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

63

MTD 682-7002

Mulching Plug

$

$

Not available

64

MTD 731-1409

Chute Deflector
(Superseded to 731-1409B)

$28.99

$

In Stock, Qty 5

0

65

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

66

MTD 710-0599

Hex Washer TT Screw 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

68

UNKNOWN

$

$

Not available

69

MTD 731-1933

Cover: Front End

$

$

Not available
