11A-105D790 - White Outdoor 20" Walk-Behind Mower (2005) General Assembly Parts Diagram

20" Walk-Behind Mower

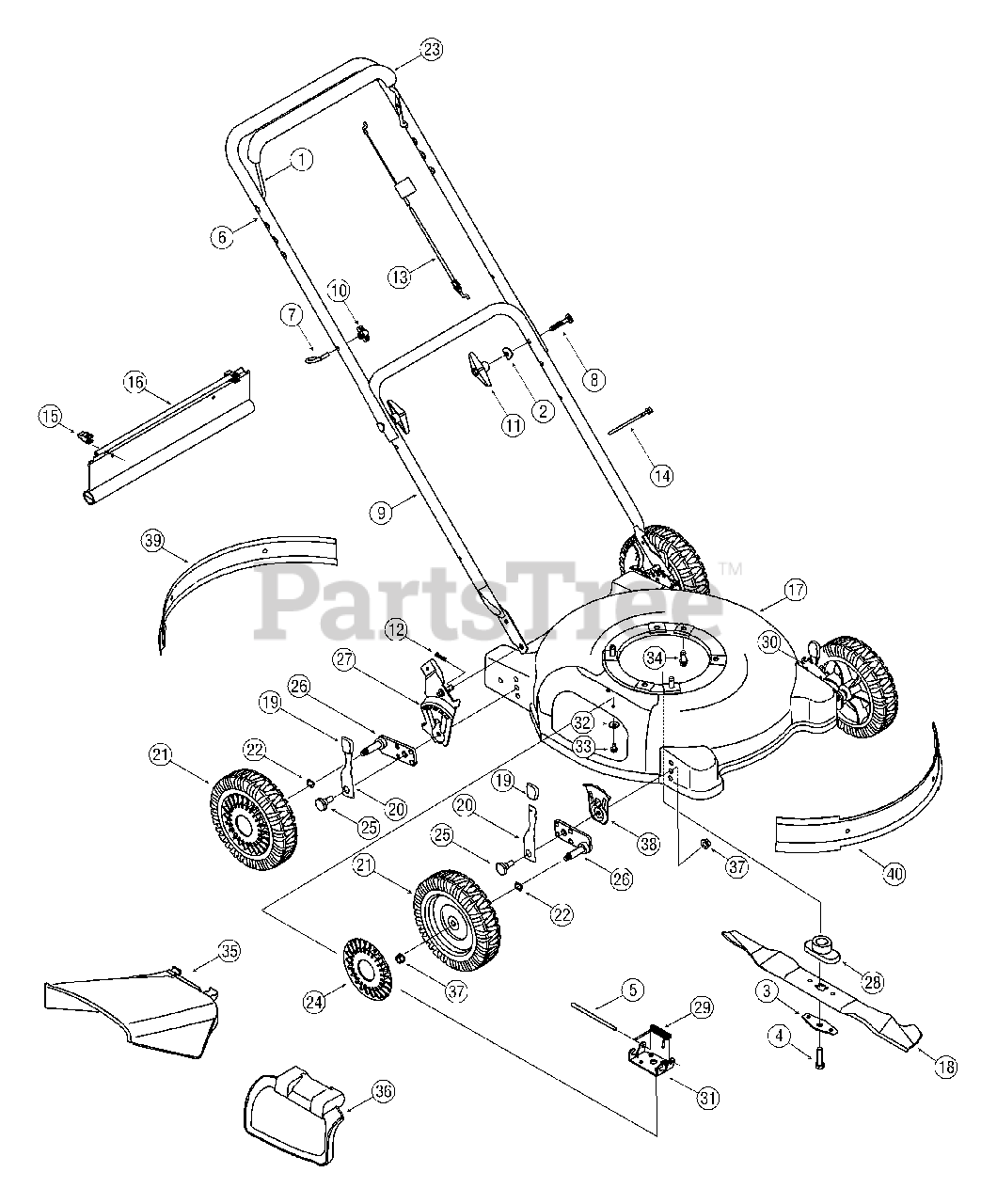

General Assembly Parts Diagram

  • Title

1

White Outdoor 747-1161A

Control Handle

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

2

White Outdoor 736-0451

Saddle Washer

$4.49

$

In Stock, Qty 11

0

3

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

4

White Outdoor 710-1044

Hex Bolt

$3.99

$

In Stock, only 1 left!

0

5

White Outdoor 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

6

White Outdoor 749-1092A

Upper Handle

Variations

White Outdoor 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

7

White Outdoor 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

8

White Outdoor 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

9

White Outdoor 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

White Outdoor 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

10

White Outdoor 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

11

White Outdoor 720-0284

Hand Knob

$6.99

$

In Stock, Qty 20+

0

12

White Outdoor 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

13

White Outdoor 746-0946

Control Cable 48.25"
(Superseded to 946-0946)

$19.99

$

In Stock, only 1 left!

0

14

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

16

White Outdoor 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

17

White Outdoor 682-0139

20" Cutting Deck Assembly

Variations

White Outdoor 682-0139-0606

DECK ASSY-20" MAJE - MAJESTIC ORANGE (0606)

$

$

Not available

White Outdoor 682-0139-0665

DECK ASSY- 20" - YARDMAN GREEN (0665)

$

$

Not available

White Outdoor 682-0139-0629

DECK ASSY- 20" - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 682-0139-0638

DECK ASSY- 20" - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 682-0139-0650

DECK ASSY- 20" - RED METALLIC (0650)

$

$

Not available

White Outdoor 682-0139-0662

DECK ASSEMBLY-OYSTER GREY - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 682-0139-0668

DECK ASSY- 20" - MOSS GREEN (0668)

$

$

Not available

White Outdoor 682-0139-0689

DECK ASSY- 20" - POLO GREEN (0689)

$

$

Not available

White Outdoor 682-0139-0691

DECK ASSY- 20" - BLACK JACK (0691)

$

$

Not available

White Outdoor 682-0139-0709

DECK ASSY- 20" - MASTERCRAFT GREEN (0709)

$

$

Not available

White Outdoor 682-0139-0716

DECK ASSY- 20" - CUB YELLOW-99 (0716)

$

$

Not available

White Outdoor 682-0139-4021

DECK ASSY- 20" - CUB YELLOW 2 (4021)

$

$

Not available

$

$

18

White Outdoor 742-0740

20" Mulching Blade
(Superseded to 942-0740)

$23.99

$

In Stock, Qty 5

0

19

White Outdoor 720-0426

Height Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

20

White Outdoor 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

21

White Outdoor 734-2004A

Wheel Assembly
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

22

White Outdoor 736-0504

Wave Washer
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

23

White Outdoor 731-04859

Snap-On Bail Cover

$11.99

$

Usually ships in 3-6 days

0

24

White Outdoor 731-0981A

Hubcap: Radial Spoke Gray
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

25

White Outdoor 738-0507B

Shoulder Bolt

$4.49

$

In Stock, only 4 left!

0

26

White Outdoor 687-02077

Pivot Arm Assembly - RH
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

Front Pivot Arm Assembly - LH Rear

$

$

Not available

White Outdoor 687-02076

Pivot Arm Assembly - LH
(Superseded to 987-02076A)

$

$

Not available

Front Pivot Arm Assembly - RH Rear

$

$

Not available

27

White Outdoor 682-3024

Handle Bracket Assembly RH
(Superseded to 987-02106A)

Variations

White Outdoor 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

White Outdoor 682-3025

Handle Bracket Assembly LH
(Superseded to 987-02107A)

Variations

White Outdoor 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

28

White Outdoor 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

White Outdoor 753-0588

Blade Adapter Kit (for service)
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

29

White Outdoor 732-0731

Torsion Spring
(Superseded to 932-0731)

$10.99

$

Usually ships in 3-6 days

0

30

White Outdoor 687-02075

Height Adjust. Assembly LH
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

White Outdoor 687-02074

Height Adjust. Assembly RH
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

31

White Outdoor 782-7006

Mounting Bracket

Variations

White Outdoor 782-7006-0637

BRACKET-MOUNTING H - POWDER BLACK (0637)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

32

White Outdoor 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

33

White Outdoor 710-0599

Hex Washer Hd. TT Screw

$4.49

$

In Stock, Qty 20+

0

34

White Outdoor 710-0654A

TT Sems Screw

$4.49

$

In Stock, only 4 left!

0

35

White Outdoor 731-1409B

Chute Deflector

$28.99

$

In Stock, Qty 5

0

36

White Outdoor 682-7002

Mulching Plug Assembly

$

$

Not available

37

White Outdoor 712-0431

Hex Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

38

15261C

Height Adjustment Plate

$

$

Not available

39

MTD 782-5012

Rear Baffle 10.62 X 2.66

Variations

White Outdoor 782-5012-0637

No Longer Available REAR BAFFLE - POWDER BLACK (0637)

$

$

Not available

$

$

40

White Outdoor 17033A

Front Baffle 10.62 RAD X 3.03

Variations

White Outdoor 17033A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$
