11A-08M5229 - Yard Machines Walk-Behind Mower (2008) (Home Depot) General Assembly Parts Diagram

Walk-Behind Mower

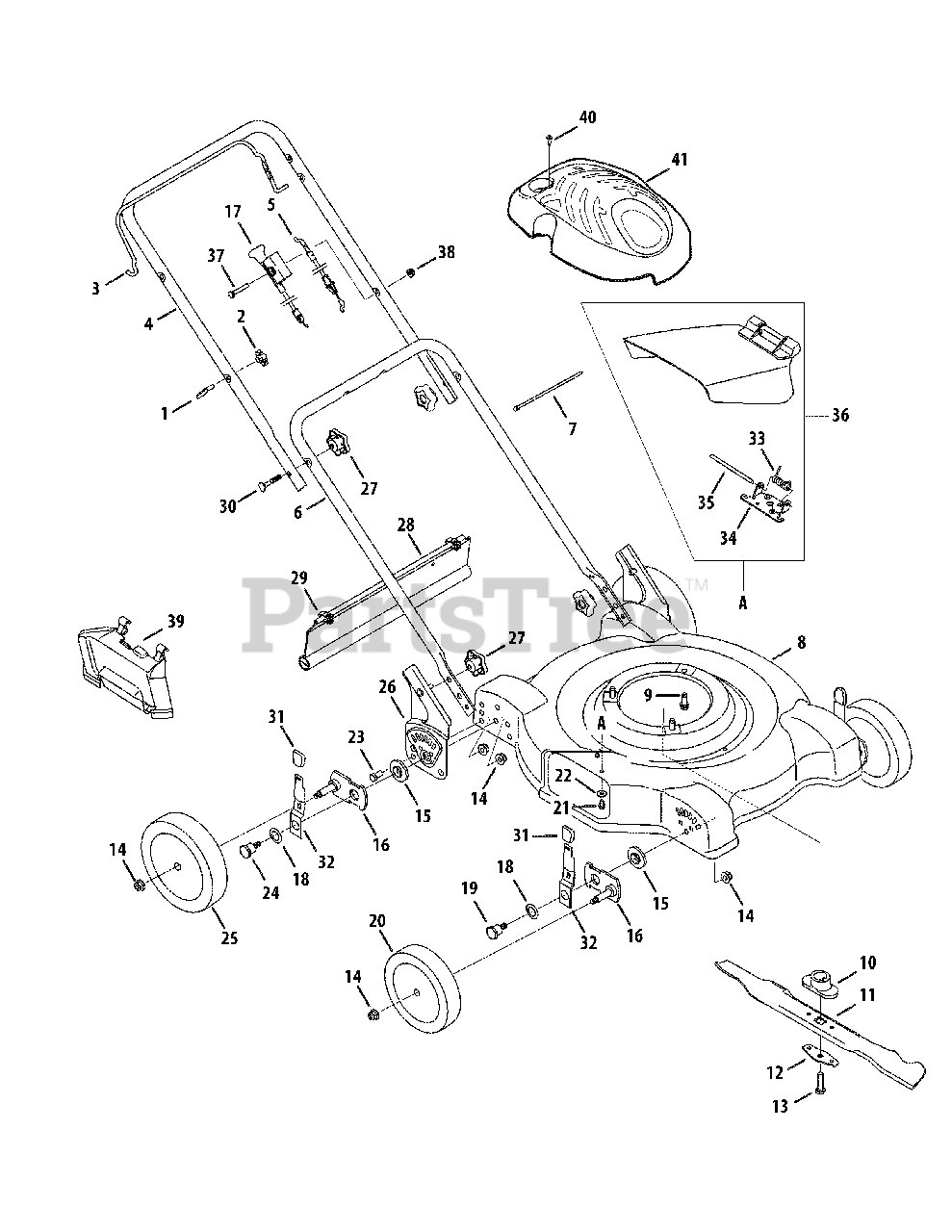

General Assembly Parts Diagram

  • Title

1

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

2

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

3

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 1 left!

0

4

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

5

MTD 746-04300

Control Cable
(Superseded to 946-04300)

$34.99

$

In Stock, only 1 left!

0

6

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

7

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

8

MTD 687-02048

Deck Assembly, 22"

Variations

MTD 687-02048-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 687-02048-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02048-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-02048-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

MTD 687-02048-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

9

MTD 710-0654A

TT Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

10

MTD 748-0376A

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

11

MTD 742-0642A

Standard Blade, 22"
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0

11

MTD 742-0742A

Mulching Blade, 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

12

MTD 736-0524

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

13

MTD 710-1044

Screw, 3/8-24 x 1.5

$3.99

$

In Stock, only 2 left!

0

14

MTD 712-04065

Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 741-04242

Height Adjuster Bearing

$7.49

$

Usually ships in 3-6 days

0

16

MTD 687-02342

Pivot Arm

$15.99

$

In Stock, only 2 left!

0

17

MTD 746-04295A

Choke Cable
(Superseded to 946-04295A)

$54.99

$

Usually ships in 3-6 days

0

18

MTD 736-0741

Bell Washer, .760 OD x 1.25 OD

$4.99

$

Usually ships in 3-6 days

0

19

MTD 738-1172

Shoulder Screw

$5.99

$

Usually ships in 3-6 days

0

20

MTD 734-1988

Front Wheel, 7 x 1.8, Bar

$20.99

$

In Stock, only 4 left!

0

21

MTD 710-0599

TT Screw, 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0270

Bell Washer, .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0216

Screw, 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

24

MTD 738-1173

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

25

MTD 734-1987

Rear Wheel, 8 x 1.8, Bar

$23.99

$

In Stock, Qty 5

0

26

MTD 682-3064

Handle Bracket Assembly, RH
(Superseded to 682-3064-0637)

Variations

MTD 682-3064-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$

$

Not available

$

$

26

MTD 682-3065

Handle Bracket Assembly, LH
(Superseded to 682-3065-0637)

Variations

MTD 682-3065-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

27

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 9

0

28

MTD 731-04019

Trailshield

$21.99

$

In Stock, Qty 12

0

29

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

30

MTD 710-1174

Carriage Bolt, 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

31

MTD 720-0426

Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

32

MTD 732-1026

Lever

$6.99

$

In Stock, only 1 left!

0

33

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

34

MTD 17032A

Chute Hinge

$10.99

$

In Stock, only 2 left!

0

35

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

36

MTD 731-1034B

Hinged Chute Deflector Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

37

MTD 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

38

MTD 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

39

MTD 631-04045

Mulching Baffle

Note: If Equipped

$19.99

$

In Stock, Qty 10

0

40

MTD 710-04577

Screw, Machine, M4-.7
(Superseded to 710-04744)

Note: If Equipped

$5.49

$

In Stock, Qty 11

0

41

MTD 731-06265

Engine Shroud
(Superseded to 731-06265A)

Note: If Equipped

$33.99

$

Usually ships in 3-6 days

0
