11A-083F800 - Yard Machines Walk-Behind Mower (2005) General Assembly Parts Diagram

Walk-Behind Mower

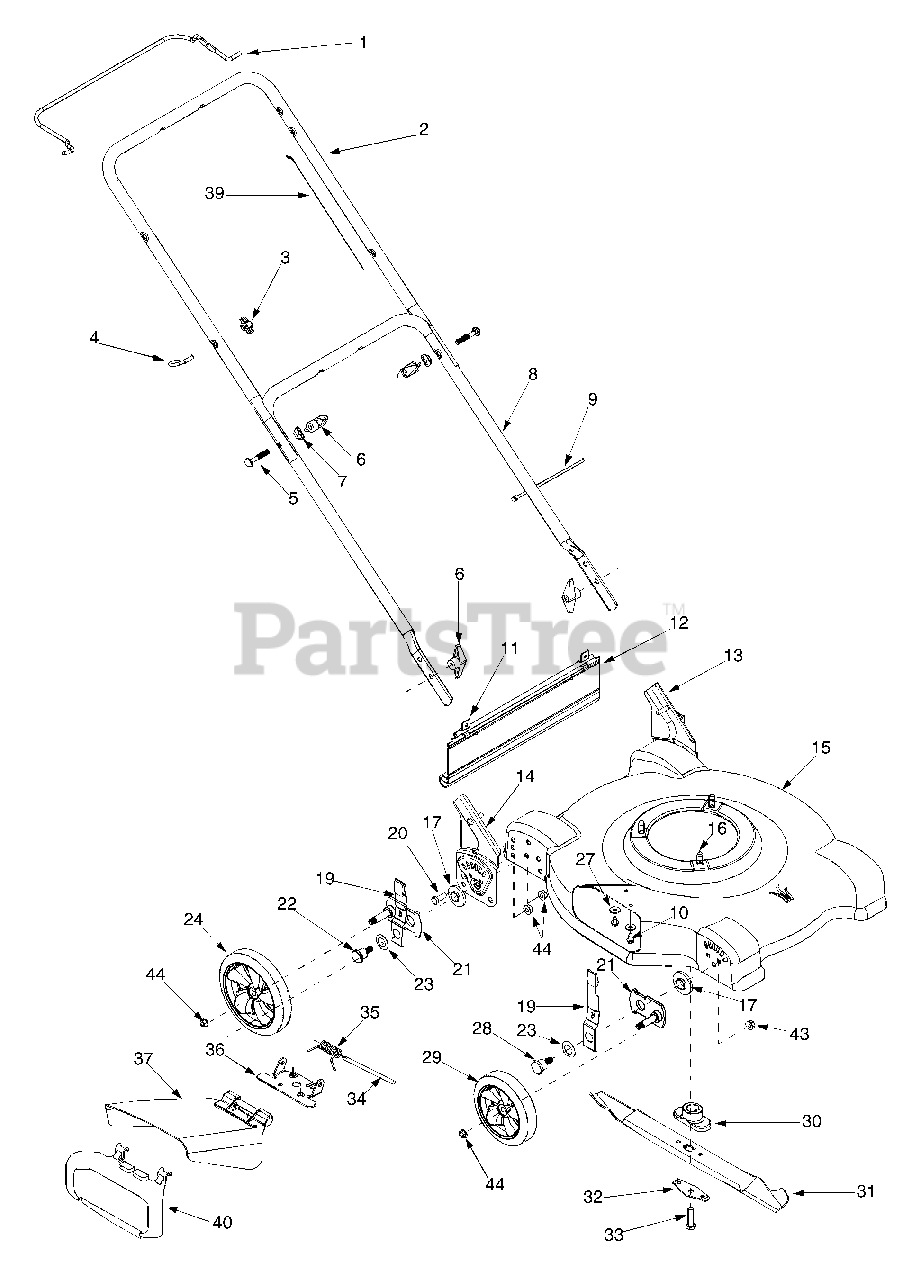

General Assembly Parts Diagram

  • Title

1

MTD 747-1161A

Blade Control Handle

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 1 left!

0

2

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 720-0279

Knob - ERS Guide 1/4-20

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

6

MTD 720-0284

Handle Knob Assembly

$6.99

$

In Stock, Qty 9

0

7

MTD 736-0451

Saddle Wash. .320 ID x .937 OD

$4.49

$

In Stock, Qty 7

0

8

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0599

Hex Wash S-Tapp Scr 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

11

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

12

MTD 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

13

MTD 682-3065

Handle Bracket Assembly LH
(Superseded to 682-3065-0637)

Variations

MTD 682-3065-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

14

MTD 682-3064

Handle Bracket Assembly RH
(Superseded to 682-3064-0637)

Variations

MTD 682-3064-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 687-02045

Deck Assembly 22" (with logo)
(Superseded to 687-02048)

Variations

MTD 687-02045-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 687-02045-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02045-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-02045-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

15

MTD 687-02048

Deck Assembly 22" (without logo)

Variations

MTD 687-02048-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 687-02048-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 687-02048-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

MTD 687-02048-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

MTD 687-02048-0709

DECK ASM-22" SIDE DISCHARGE - MASTERCRAFT GREEN (0709)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

16

MTD 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, Qty 20+

0

17

MTD 741-0751

Height Adjuster Bearing

$8.99

$

Usually ships in 3-6 days

0

19

MTD 687-02051

Lever Assembly

Note: (includes Ref. #18)

$9.49

$

Usually ships in 3-6 days

0

20

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

21

MTD 687-02094

Pivot Bar
(Superseded to 987-02094)

$29.99

$

Usually ships in 3-6 days

0

22

MTD 738-1173

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

23

MTD 736-0741

Cupped Washer .401 ID x .870 OD

$4.99

$

Usually ships in 3-6 days

0

24

MTD 734-1987

Wheel Ass'y 8 x 1.8 Spoke Bar Grey

$23.99

$

In Stock, Qty 5

0

27

MTD 736-0270

Cup. Wash. .265 ID x .75 OD x .062

$3.99

$

In Stock, Qty 20+

0

28

MTD 738-1172

Shoulder Screw 3/8-16

$5.99

$

Usually ships in 3-6 days

0

29

MTD 734-1988

Wheel Assembly Complete 7 x 1.8

$20.99

$

In Stock, only 4 left!

0

30

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

31

MTD 742-0642A

Blade 22"
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0

31

MTD 742-0742A

Mulching Blade 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

32

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

33

MTD 710-1044

Hex Screw 3/8-24 x 1.5" Lg. (Gr. 8)

$3.99

$

In Stock, only 2 left!

0

34

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

35

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

36

MTD 17032A

Chute Hinge

$10.99

$

In Stock, only 2 left!

0

37

MTD 731-1035B

Chute Deflector
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

37

MTD 731-1034B

Side Dis. Chute Ass'y
(Superseded to 931-1034B)

Note: (incl. #34-37)

$72.99

$

In Stock, Qty 5

0

39

MTD 746-0957

Control Cable 37.25" Lg.
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

39

MTD 746-1130

Blade Control Cable 40"
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 7

0

39

MTD 746-0946

Control Cable 48.25" Lg.
(Superseded to 946-0946)

$19.99

$

In Stock, only 1 left!

0

40

MTD 631-04045

Mulch Plug

Note: (if equipped)

$19.99

$

In Stock, Qty 10

0

44

MTD 712-0431

Flanged Lock Nut
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

45

MTD 751168114

Shroud

$

$

Currently unavailable
