11A-082A000 - Yard Machines Walk-Behind Mower (2000) General Assembly Parts Diagram

Walk-Behind Mower

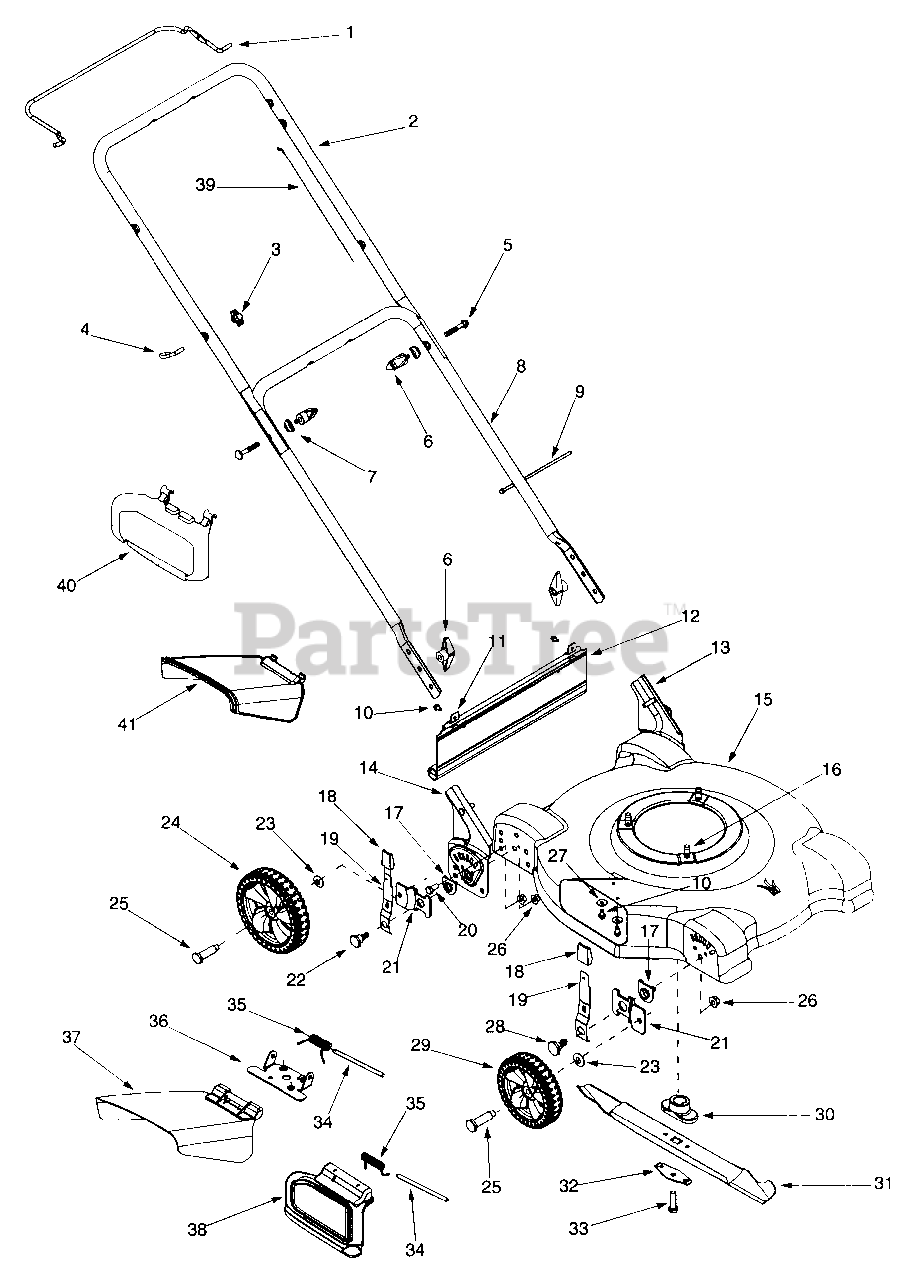

General Assembly Parts Diagram

  • Title
1

MTD 747-1161

Blade Control Handle
(Superseded to 747-1161A-0637)

$13.99

$

In Stock, only 1 left!

0

2

MTD 749-1092

Upper Handle
(Superseded to 749-1092A)

Variations

MTD 749-1092-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

$48.99

$

Usually ships in 3-6 days

0

3

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

5

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

6

MTD 720-0241

Wing Nut
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

7

MTD 736-0451

Shoulder Washer .320 ID x .93 OD

$4.49

$

In Stock, Qty 11

0

8

MTD 749-1093

Lower Handle
(Superseded to 749-04037)

Variations

MTD 749-1093-0637

Long Lower Handle - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

MTD 710-0896

Hex Screw 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

11

MTD 782-9065

Hinge Clip

$4.49

$

In Stock, only 3 left!

0

12

MTD 731-2322

Trail Shield
(Superseded to 731-04019)

$21.99

$

In Stock, Qty 12

0

13

MTD 682-3065

Handle Bracket Asm LH
(Superseded to 682-3065-0637)

Variations

MTD 682-3065-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$39.99

$

Usually ships in 3-6 days

0

14

MTD 682-3064

Handle Bracket Asm RH
(Superseded to 682-3064-0637)

Variations

MTD 682-3064-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$

$

Not available

$

$

15

MTD 682-0094

Deck Assembly 22"
(Superseded to 687-02048)

Variations

MTD 682-0094-0629

DECK ASM-22" SIDE DISCHARGE - SILVER FLAKE (0629)

$

$

Not available

MTD 682-0094-0638

DECK ASM-22" SIDE DISCHARGE - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0094-0665

DECK ASM-22" SIDE DISCHARGE - YARDMAN GREEN (0665)

$

$

Not available

MTD 682-0094-0691

DECK ASM-22" SIDE DISCHARGE - BLACK JACK (0691)

$

$

Not available

$140.99

$

Usually ships in 3-6 days

0

16

MTD 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

17

MTD 741-1102

Height Adjuster Bearing

$

$

Not available

18

MTD 720-0190

Height Adjuster Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

19

MTD 732-0969

Spring Lever

$

$

Not available

20

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

21

MTD 682-0143

Pivot Arm

$

$

Not available

22

MTD 738-1127

Shoulder Screw
(Superseded to 738-1127B)

$7.49

$

In Stock, Qty 11

0

23

MTD 736-0105

Bell Washer .401 ID x .870 OD

$4.49

$

In Stock, Qty 20+

0

24

MTD 734-1987

Wheel Comp 8 x 1.8

$23.99

$

In Stock, Qty 5

0

25

MTD 738-0102

Shoulder Screw

$9.99

$

In Stock, Qty 10

0

26

MTD 712-3005

Flange Lock Nut 3/8-16

$6.99

$

Usually ships in 3-6 days

0

27

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

28

MTD 738-1126

Shoulder Screw

$12.99

$

Usually ships in 3-6 days

0

29

MTD 734-1988

Wheel Comp 7 x 1.8

$20.99

$

In Stock, only 4 left!

0

30

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

31

MTD 742-0642

Blade 22"
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0

MTD 742-0742

Mulching Blade 22"
(Superseded to 942-0742A)

$24.99

$

In Stock, only 1 left!

0

32

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 3 left!

0

33

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, only 3 left!

0

34

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

35

MTD 732-0593

Torsion Spring - Side Discharge
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

MTD 732-0981

Torsion Spring - Mulching Baffle

$

$

Currently unavailable

36

MTD 731-1035A

Chute Hinge
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

37

MTD 731-1034A

Side Discharge Chute Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

38

MTD 631-0098

Mulching Baffle

Note: (If Equipped)

$

$

Currently unavailable

39

MTD 746-0957

Control Cable - B&S
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

MTD 746-1091

Control Cable - Tec
(Superseded to 946-1091)

$25.99

$

In Stock, only 4 left!

0

40

MTD 731-1386A

Snap Mulching Plug
(Superseded to 731-1386D)

Note: (If Equipped)

$

$

Not available

41

MTD 731-2230

Snap Discharge Chute

Note: (If Equipped)

$

$

Not available
