11A-074E065 - Bolens Walk-Behind Mower (2009) General Assembly Parts Diagram

Walk-Behind Mower

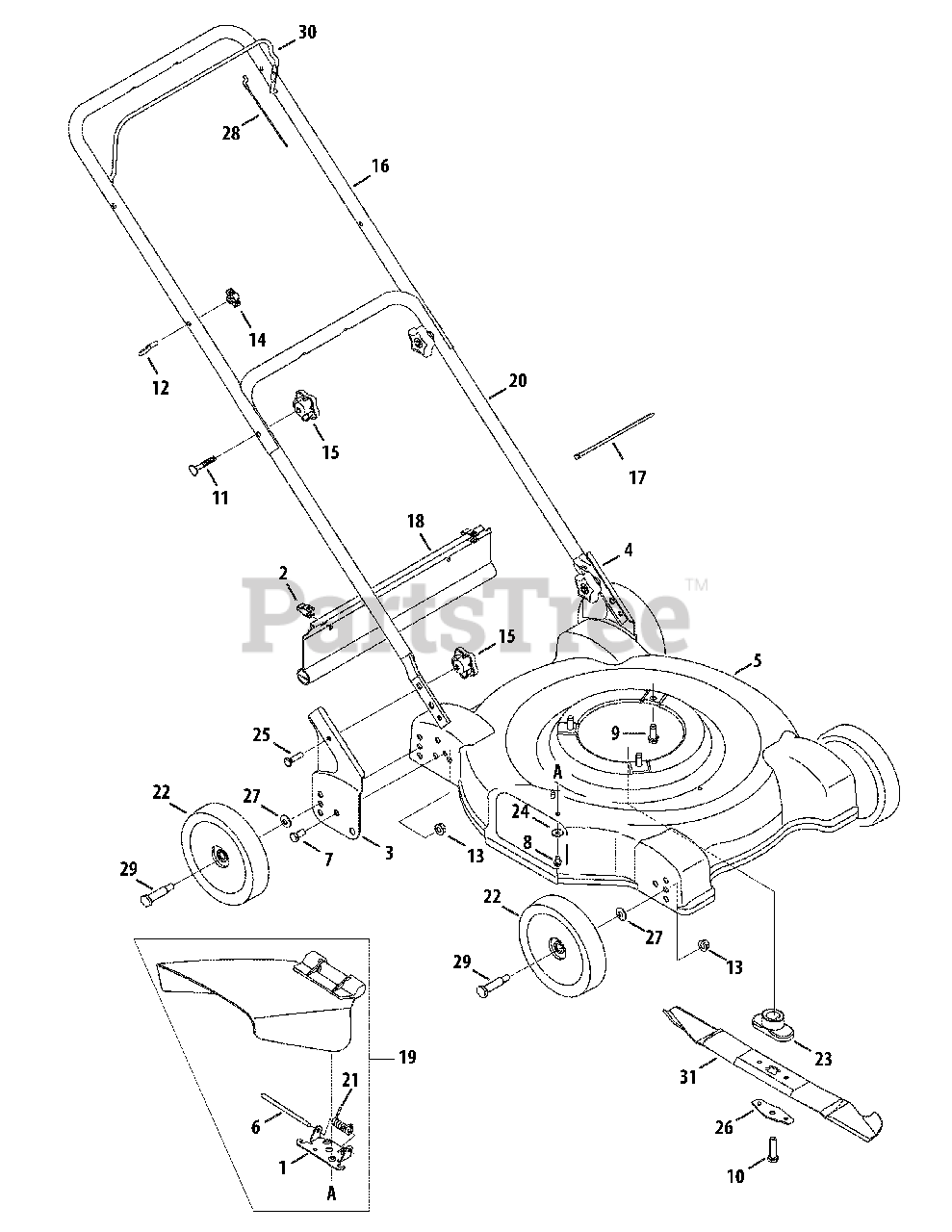

General Assembly Parts Diagram

  • Title

1

MTD 17032A

Chute Hinge

$10.99

$

In Stock, only 2 left!

0

2

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

3

MTD 687-02145-0637

Handle Bracket Assembly - RH

$

$

Not available

4

MTD 687-02144-0637

Handle Bracket Assembly - LH

$

$

Not available

5

MTD 787-01084A-0709

Deck Assembly, 22"
(Superseded to 987-01084B-0709)

$

$

Not available

6

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

7

MTD 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

8

MTD 710-0599

TT Screw 1/4-20 x 0.5"

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-0654A

TT Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

10

MTD 710-1044

Hex Cap Screw 3/8-24 x 1.5

$3.99

$

In Stock, only 1 left!

0

11

MTD 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

12

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

13

MTD 712-04065

Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

14

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

15

MTD 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

16

MTD 749-1092A-0637

Upper Handle

$48.99

$

In Stock, only 1 left!

0

17

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

18

MTD 731-04019

Trail Shield

$21.99

$

In Stock, Qty 12

0

19

MTD 731-1034B

Hinged Chute Deflector Assembly
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

20

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

21

MTD 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

22

MTD 734-04063

Wheel
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

23

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

24

MTD 736-0270

Bell Washer .265 ID x .75 OD

$3.99

$

In Stock, Qty 20+

0

25

MTD 710-1694

Clinch Stud

$3.49

$

Usually ships in 3-6 days

0

26

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

27

MTD 736-0105

Bell Washer, .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

28

MTD 746-0957

Blade Control Cable - 37.25"
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

29

MTD 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

30

MTD 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 1 left!

0

31

MTD 742-0642A

Standard Blade, 22"
(Superseded to 942-0642A)

$26.99

$

In Stock, only 1 left!

0
