11A-072A000 - Yard Machines Walk-Behind Mower (2002) General Assembly Parts Diagram

Walk-Behind Mower

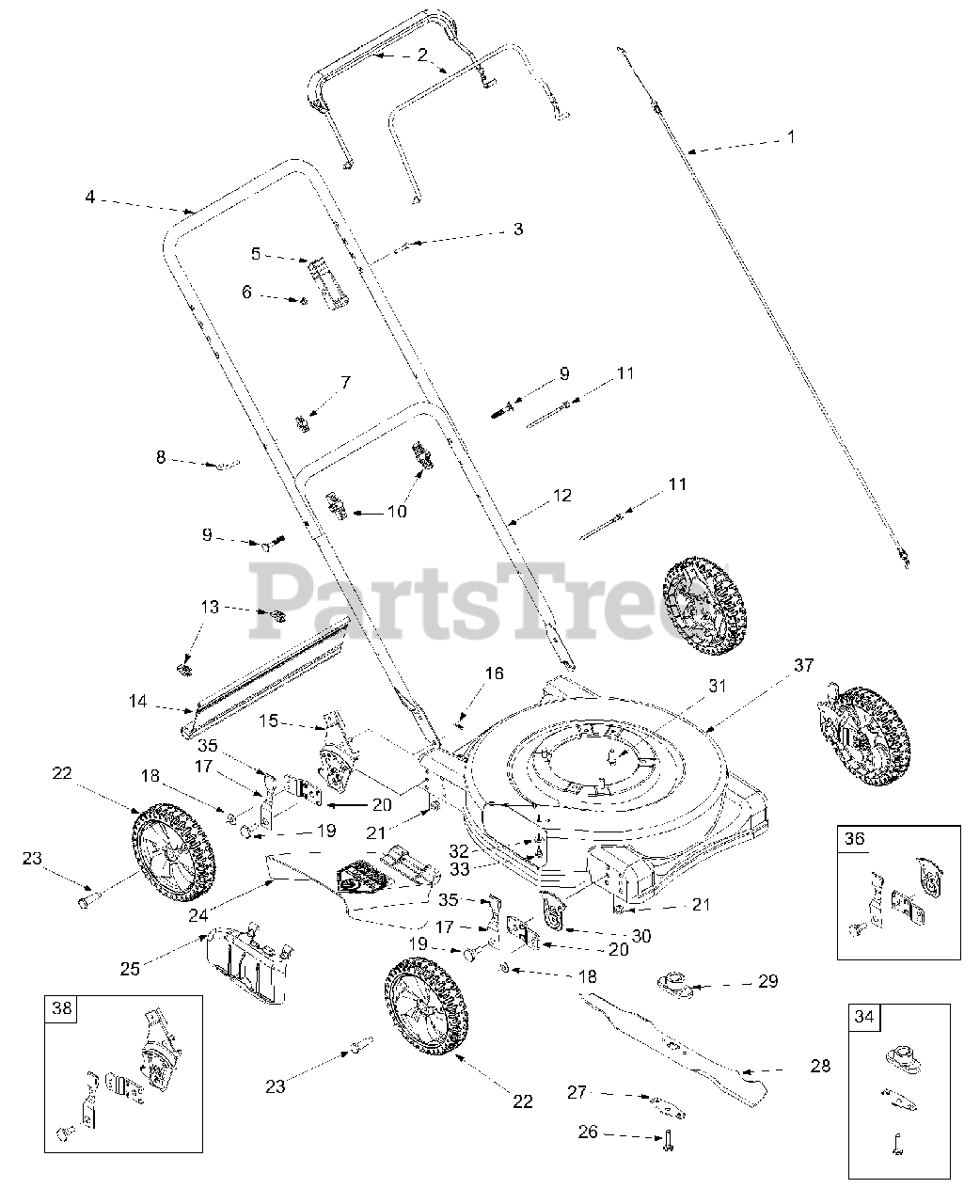

General Assembly Parts Diagram

  • Title

1

MTD 746-0554

Control Cable - 40.5"
(Superseded to 946-0554)

$21.99

$

In Stock, only 4 left!

0

2

MTD 747-0824

Standard Control Lever
(Superseded to 747-0824B-0637)

Variations

MTD 747-0824-0637

Control Handle Assembly - POWDER BLACK (0637)

$65.99

$

In Stock, only 1 left!

0

$65.99

$

In Stock, only 1 left!

0

MTD 647-0004

Deluxe Plastic Control Lever
(Superseded to 747-0824B-0637)

$65.99

$

In Stock, only 1 left!

0

3

MTD 710-1270

Oval C-sunk Machine Screw

$4.49

$

Usually ships in 3-6 days

0

4

MTD 749-0705

Upper Handle

Variations

MTD 749-0705-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 720-0295

Foam Grip (If Equipped)

$33.99

$

Usually ships in 3-6 days

0

5

MTD 746-0883

Control Cable Housing

$16.99

$

In Stock, only 3 left!

0

6

MTD 712-0324

Hex Lock Nut, Nylon, 1/4-20 GR8

$3.99

$

In Stock, Qty 16

0

7

MTD 720-0279

WIng Knob

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

9

MTD 710-1174

Carriage Bolt

$7.49

$

In Stock, Qty 20+

0

10

MTD 720-0314

Wing Knob

$6.49

$

In Stock, only 1 left!

0

11

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

12

MTD 749-0928

Lower Handle
(Superseded to 749-0928A)

Variations

MTD 749-0928-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

13

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

14

MTD 731-0872A

Rear Trail Shield
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

15

MTD 782-3024

Height Adjustment Bracket, RH
(Superseded to 987-02106A)

$52.99

$

Usually ships in 3-6 days

0

MTD 782-3025

Height Adjustment Bracket, LH
(Superseded to 987-02107A)

$45.99

$

In Stock, only 3 left!

0

16

MTD 714-0104

Internal Cotter Pin

$4.49

$

In Stock, Qty 20+

0

17

MTD 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

18

MTD 736-0105

Bell Washer, .400 ID x .88"

$4.49

$

In Stock, Qty 20+

0

19

MTD 738-0507B

Shoulder Bolt, 1/2 x .357"

$4.49

$

In Stock, only 4 left!

0

20

MTD 15262B

Wheel Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

21

MTD 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

22

Wheel Assembly

$

$

Not available

MTD 634-0020

8" x 1.75" Bar Tread, Disk Hub Grey

$39.99

$

In Stock, Qty 6

0

MTD 734-1987

8" x 1.75" Bar Tread, Aero Mag Grey

$23.99

$

In Stock, Qty 5

0

MTD 734-1781

8" x 1.75" Bar Tread, Slot Hub Grey

$32.99

$

In Stock, Qty 7

0

MTD 734-1780

8" x 1.75" Diamond, Star Hub White
(Superseded to 734-04585)

$20.99

$

In Stock, only 1 left!

0

MTD 734-1978

8" x 2" Link Tread, Black

Note: Bearing P/N 741-0484

$48.99

$

Usually ships in 3-6 days

0

MTD 741-0484

Bearing
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

23

MTD 738-0102

Shoulder Screw, .498 x 1.445 : 3/8-16

$9.99

$

In Stock, Qty 10

0

24

MTD 731-1034B

Side Discharge Chute
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

25

MTD 731-1386D

Mulch Plug (If Equipped)

$

$

Not available

26

MTD 710-1044

Hex Head Cap Screw, 3/8-24 x 1.5 GR8

$3.99

$

In Stock, only 1 left!

0

27

MTD 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

28

MTD 942-0640

Standard Blade

$28.99

$

Usually ships in 3-6 days

0

MTD 942-0740

Mulching Blade w/Star (If Equipped)

$23.99

$

In Stock, Qty 5

0

29

MTD 748-0376C

Blade Adapter w/Star
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

30

MTD 15261A

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

31

MTD 710-0654A

Self Tapping Screw, 3/8-16 x 1"

$4.49

$

In Stock, only 4 left!

0

32

MTD 736-0270

Bell Washer

$3.99

$

In Stock, Qty 20+

0

33

MTD 710-0599

Self Tapping Screw, 1/4-20 x 1/2"

$4.49

$

In Stock, Qty 20+

0

34

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0

35

MTD 720-0190

Height Adjuster Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

36

MTD 14578

Front Height Adjuster Assy, RH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 14579

Front Height Adjuster Assy, LH
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

37

MTD 682-0140

Deck Housing Assembly

Variations

MTD 682-0140-0638

No Longer Available DECK ASM-2 - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 682-0140-0665

No Longer Available DECK ASM-2 - YARDMAN GREEN (0665)

$

$

Not available

$

$

38

MTD 682-3024

Rear Wheel Height Adj. Assy, RH
(Superseded to 987-02106A)

Variations

MTD 682-3024-0637

Handle Bracket Assembly, RH - POWDER BLACK (0637)

$52.99

$

Usually ships in 3-6 days

0

$52.99

$

Usually ships in 3-6 days

0

MTD 682-3025

Rear Wheel Height Adj. Assy, LH
(Superseded to 987-02107A)

Variations

MTD 682-3025-0637

Handle and Height Bracket Assembly - POWDER BLACK (0637)

$45.99

$

In Stock, only 3 left!

0

$45.99

$

In Stock, only 3 left!

0

MTD 720-0249

Hub Caps Grey (3-1/2" Dia.)
(Superseded to 920-0249)

Note: Optional

$

$

Not available

MTD 731-0981A

Hub Caps Grey (5-1/2" Dia.)
(Superseded to 731-0981C)

Note: Optional

$10.99

$

In Stock, only 2 left!

0

MTD 731-0982A

Hub Caps Beige (5-1/2" Dia.)
(Superseded to 731-0982C)

Note: Optional

$11.99

$

In Stock, Qty 18

0

MTD 751B281857

Engine Shroud, Briggs & Stratton, Quattro, Black

Note: Hardware P/N 751B095225

$

$

Not available

MTD 7511681311

Engine Shroud, Tecumseh, Tecumseh Black

$

$

Not available

MTD 7511681911

Engine Shroud, Tecumseh, Tecumseh Red

$

$

Currently unavailable

MTD 7511682011

Engine Shroud, Tecumseh, Tecumseh Gray

$

$

Not available

MTD 751B095225

Hardware

$

$

Not available
