11A-031B700 - Yard Machines Walk-Behind Mower (2006) General Assembly Parts Diagram

Walk-Behind Mower

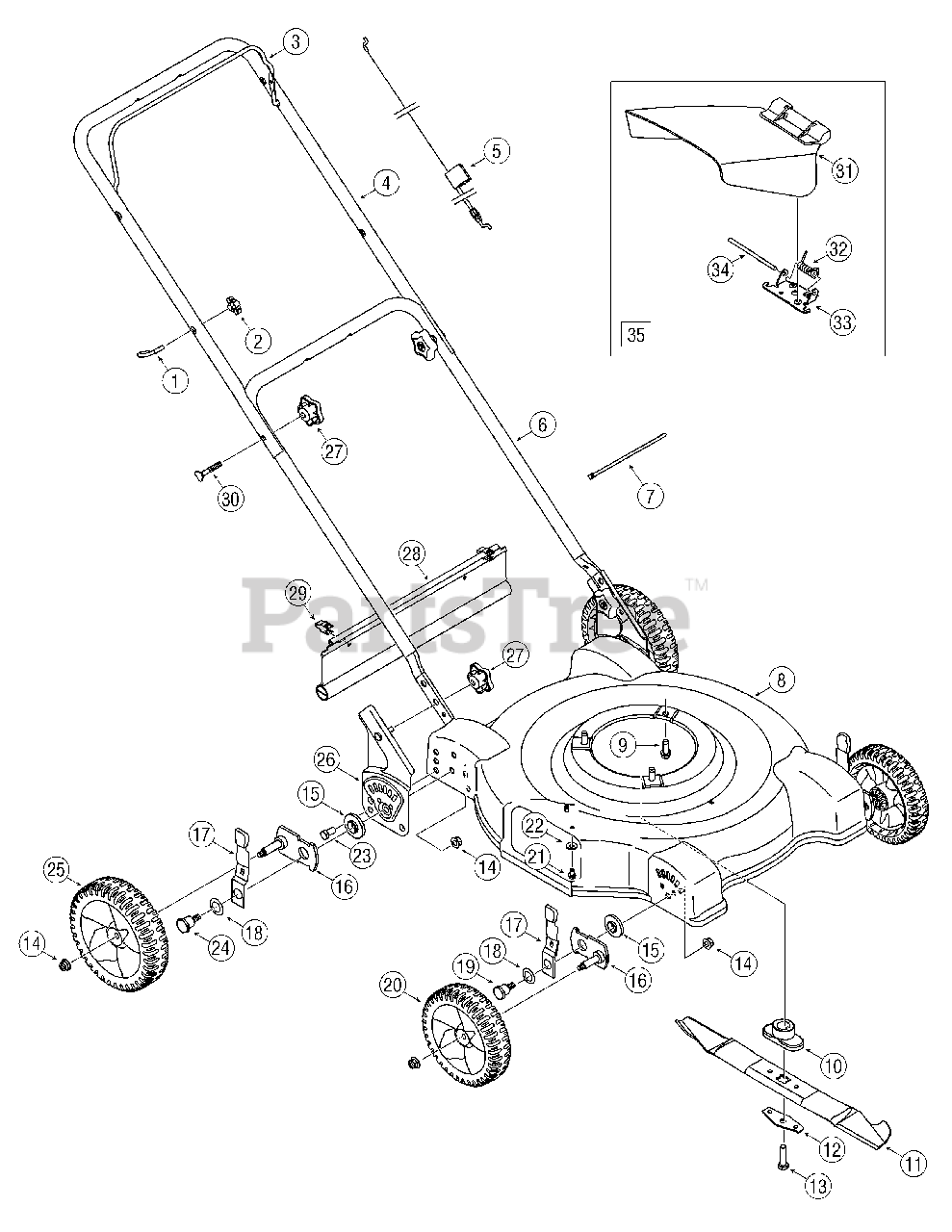

General Assembly Parts Diagram

  • Title

1

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

2

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

3

MTD 747-1161A-0637

Blade Control Handle

$13.99

$

In Stock, only 4 left!

0

4

MTD 749-1092A

Upper Handle

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

5

MTD 946-0957

Blade Control Cable - 37.25

Note: Series 034

$17.99

$

In Stock, Qty 20+

0

5

MTD 946-0946

Blade Control Cable - 48.25

Note: Series 031

$19.99

$

In Stock, only 1 left!

0

5

MTD 946-1130

Blade Control Cable - 40.00

Note: Series 038

$17.99

$

In Stock, Qty 7

0

6

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

7

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

8

MTD 787-01097A

Deck Assembly 22-inch
(Superseded to 753-08124)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 787-01097A-0629

KIT-DECK REPLACE F - SILVER FLAKE (0629)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097A-0638

KIT-DECK REPLACE F - MTD/TROY-BILT RED (0638)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097A-0665

KIT-DECK REPLACE F - YARDMAN GREEN (0665)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097A-0691

KIT-DECK REPLACE F - BLACK JACK (0691)

$121.99

$

Usually ships in 3-6 days

0

MTD 787-01097A-0709

KIT-DECK REPLACE F - MASTERCRAFT GREEN (0709)

$121.99

$

Usually ships in 3-6 days

0

$121.99

$

Usually ships in 3-6 days

0

9

MTD 710-0654A

TT Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

10

MTD 748-04096

Blade Adapter 25MM X 1.19

Note: Used on 11A-031B700 Model Only

$22.99

$

In Stock, Qty 20+

0

10

MTD 748-0376C

Blade Adapter #6 X 1.19 W/STAR
(Superseded to 748-0376E)

Note: Used on Series 034 & 038

$20.99

$

In Stock, only 3 left!

0

11

MTD 942-0642A

Standard Blade 22-inch

$26.99

$

In Stock, only 1 left!

0

12

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

13

MTD 710-1044

Screw 3/8-24 x 1.5

$3.99

$

In Stock, Qty 8

0

14

MTD 712-04065

Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

15

MTD 741-0751

Height Adjuster Bearing

$8.99

$

Usually ships in 3-6 days

0

16

MTD 987-02094

Pivot Arm

$29.99

$

Usually ships in 3-6 days

0

17

MTD 987-02051

Lever Assembly
(Superseded to 687-02051)

$

$

Not available

18

MTD 736-0741

Bell Washer .760 ID x 1.25

$4.99

$

Usually ships in 3-6 days

0

19

MTD 738-1172

Shoulder Screw

$5.99

$

Usually ships in 3-6 days

0

20

MTD 734-1988

Front Wheel 7 x 1.8

$20.99

$

In Stock, only 4 left!

0

21

MTD 710-0599

TT Screw 1/4-20 x .5

$4.49

$

In Stock, Qty 20+

0

22

MTD 736-0270

Bell Washer .265 ID x .75

$3.99

$

In Stock, Qty 20+

0

23

MTD 710-0216

Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

24

MTD 738-1173

Shoulder Screw

$6.99

$

Usually ships in 3-6 days

0

25

MTD 734-1987

Rear Wheel 8 x 1.8

$23.99

$

In Stock, Qty 5

0

26

MTD 682-3064-0637

Handle Bracket Assembly RH

$

$

Not available

26

MTD 682-3065-0637

Handle Bracket Assembly LH

$39.99

$

Usually ships in 3-6 days

0

27

MTD 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

28

MTD 731-04019

Trailshield

$21.99

$

In Stock, Qty 12

0

29

MTD 17098P

Hinge Clip

$

$

Not available

30

MTD 710-1174

Carriage Bolt 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

31

MTD 931-1034B

Chute Deflector

$72.99

$

In Stock, Qty 5

0

32

MTD 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

33

MTD 17032A

Chute Hinge

$10.99

$

In Stock, only 2 left!

0

34

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

35

MTD 931-1034B

Hinged Chute Deflector Assembly

$72.99

$

In Stock, Qty 5

0
