11A-02SB700 - Yard Machines Walk-Behind Mower (2016) General Assembly Parts Diagram

Walk-Behind Mower

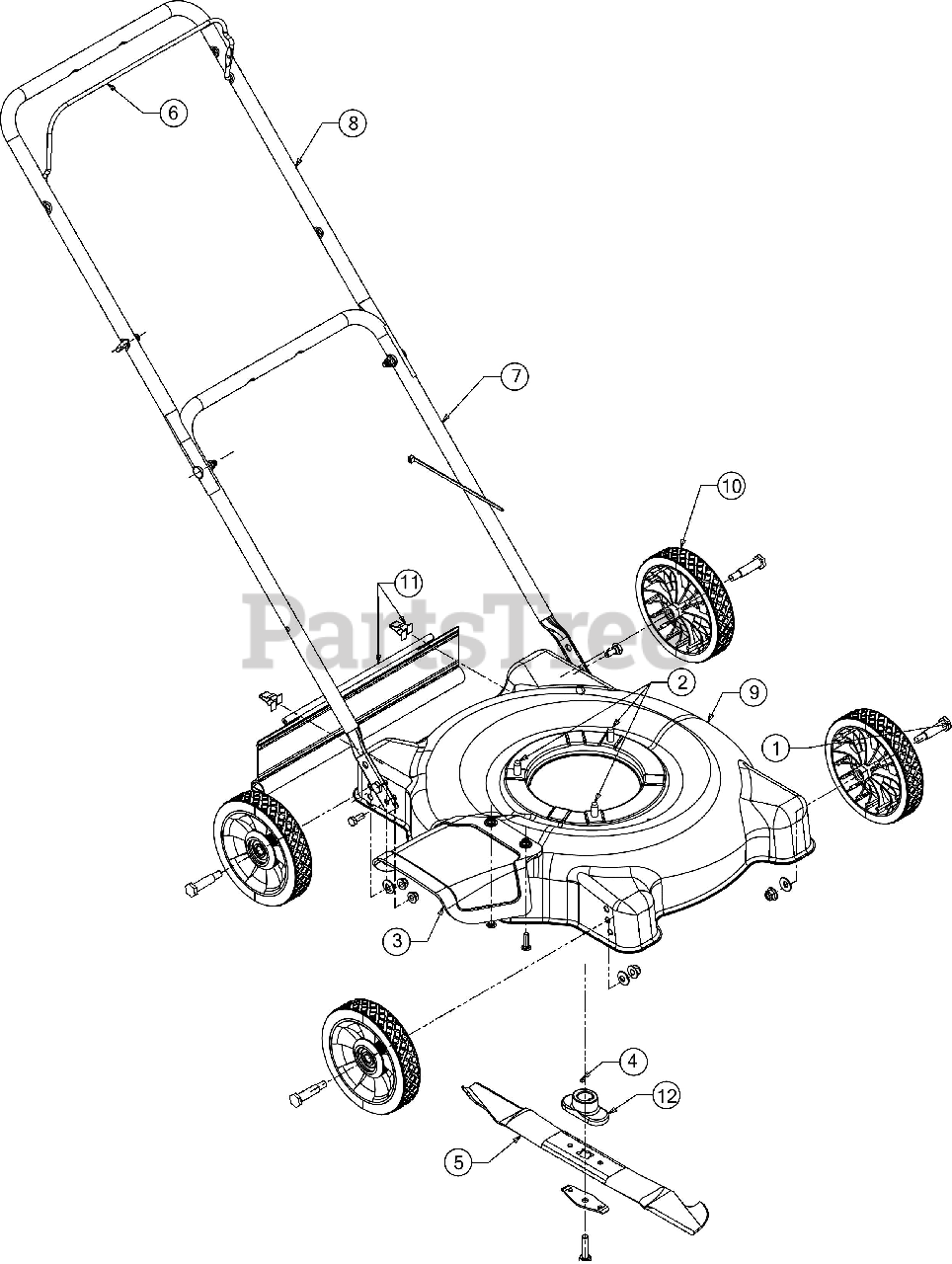

General Assembly Parts Diagram

  • Title
1

MTD 687-02392

SCREWPACK ASSEMBLY

$47.99

$

In Stock, only 2 left!

0

1

MTD 710-0262

CARRIAGE BOLT 5/16-18 X 1.50

$3.99

$

In Stock, Qty 12

0

1

MTD 710-0932A

SCREW 1/4-20 X 1 GR1

$3.99

$

In Stock, only 4 left!

0

1

MTD 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, Qty 20+

0

1

MTD 710-3008

SCREW 5/16-18 X .75 GR5

$4.49

$

In Stock, Qty 20+

0

1

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

1

MTD 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 17

0

1

MTD 725-0157

CABLE TIE 7"

$3.99

$

In Stock, only 2 left!

0

1

MTD 736-0105

BELL WASHER .400 ID X .88 X .060

$4.49

$

In Stock, Qty 20+

0

1

MTD 736-0173

FLAT WASHER .28 ID X .74 OD X .063

$4.49

$

In Stock, Qty 20+

0

1

MTD 938-04033

SHOULDER SCREW
(Superseded to 738-04033)

$

$

Not available

1

MTD 938-0533

SHOULDER BOLT .498 X 1.635:3/8-16
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

1

MTD 710-0932A

SCREW 1/4-20 X 1 GR5

$3.99

$

In Stock, only 4 left!

0

2

MTD 710-0654A

SCREW 3/8-16 X 1

$4.49

$

In Stock, only 3 left!

0

3

MTD 731-0064

FIXED CHUTE
(Superseded to 731-0064A)

$22.99

$

In Stock, only 1 left!

0

4

N/A

GREASE

Note: (Purchase Locally)

$

$

Not available

5

MTD 942-0640

20" BLADE

$28.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 3 left!

0

7

MTD 749-04037

LONG LOWER HANDLE

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

8

MTD 749-1092A-0637

UPPER HANDLE

$48.99

$

Usually ships in 3-6 days

0

9

MTD 787-01759

20" DECK

Variations

MTD 787-01759-0638

DECK-20" SIDE DISC - MTD/TROY-BILT RED (0638)

$141.99

$

In Stock, only 1 left!

0

MTD 787-01759-0606

Orange DECK-20" SIDE DISC - MAJESTIC ORANGE (0606)

$141.99

$

Usually ships in 3-6 days

0

MTD 787-01759-0640

DECK-20" SIDE DISC - CO-OP GREEN (0640)

$131.99

$

Usually ships in 3-6 days

0

MTD 787-01759-0650

DECK-20" SIDE DISC - RED METALLIC (0650)

$122.99

$

Usually ships in 3-6 days

0

MTD 787-01759-0691

DECK-20" SIDE DISC - BLACK JACK (0691)

$131.99

$

Usually ships in 3-6 days

0

MTD 787-01759-0709

DECK-20" SIDE DISC - MASTERCRAFT GREEN (0709)

$141.99

$

In Stock, only 1 left!

0

$101.99

$

Usually ships in 3-6 days

0

10

MTD 734-04063B

COMPLETE WHEEL

$18.99

$

In Stock, only 3 left!

0

11

MTD 731-06953

TRAILSHIELD-4.54 X 16.69

$12.99

$

In Stock, only 1 left!

0

11

MTD 732-04631A

TRAILSHIELD CLIP

$4.49

$

In Stock, only 1 left!

0

12

MTD 710-1044

SCREW 3/8-24 X 1.50 GR8

$3.99

$

Usually ships in 3-6 days

0

12

MTD 736-0524B

BLADE BELL SUPPORT
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 8

0

12

MTD 748-0376E

BLADE ADAPTER-W/STAR

$20.99

$

In Stock, only 2 left!

0
