11A-02SB700 - Yard Machines Walk-Behind Mower (2015) General Assembly Parts Diagram

Walk-Behind Mower

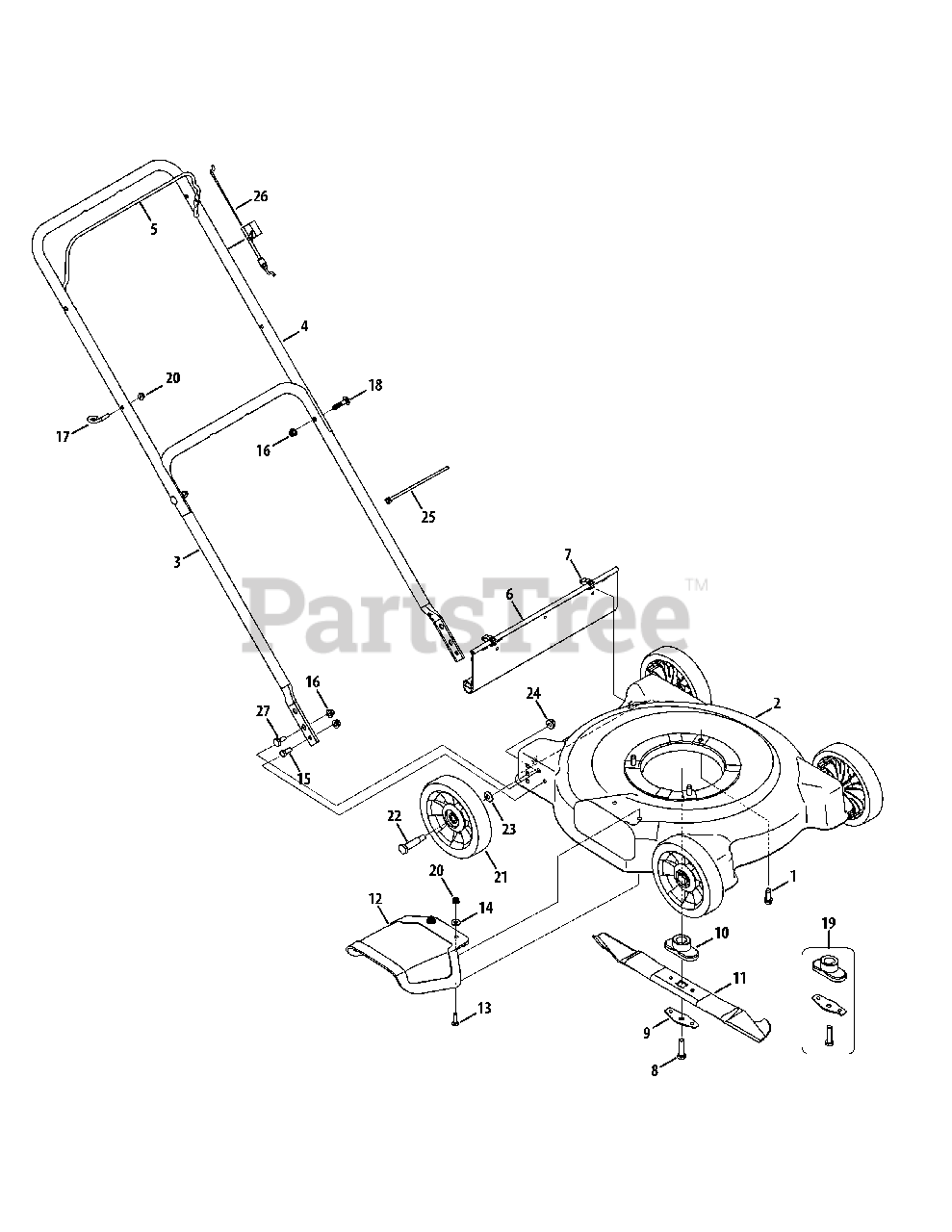

General Assembly Parts Diagram

  • Title
1

MTD 710-0654A

Hex Ind. Washer Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

2

MTD 787-01759A-0638

Cutting Deck, 20" - Red

$141.99

$

In Stock, only 1 left!

0

3

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 6

0

$53.99

$

In Stock, Qty 6

0

4

MTD 749-1092A-0637

Upper Handle

$48.99

$

Usually ships in 3-6 days

0

5

MTD 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 3 left!

0

6

MTD 731-06953

Rear Flap

$12.99

$

In Stock, only 1 left!

0

7

MTD 732-04631A

Hinge Clip

$4.49

$

In Stock, only 1 left!

0

8

MTD 710-1044

Screw, 3/8-24 x 1.5"

$3.99

$

Usually ships in 3-6 days

0

9

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 8

0

10

MTD 748-0376E

Blade Adapter

$20.99

$

In Stock, only 2 left!

0

11

MTD 942-0640

Cutting Blade

$28.99

$

In Stock, only 1 left!

0

12

MTD 731-0064

Discharge Chute
(Superseded to 731-0064A)

$22.99

$

In Stock, only 1 left!

0

13

MTD 710-0932A

Carriage Screw, 1/4-20 x 1.0"

$3.99

$

In Stock, only 4 left!

0

14

MTD 736-0173

Flat Washer

$4.49

$

In Stock, Qty 20+

0

15

MTD 710-3008

Hex Screw, 5/16-18 x .75"

$4.49

$

In Stock, Qty 20+

0

16

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

17

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-0262

Carriage Bolt, 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 12

0

19

MTD 753-06315

Blade Adapter Kit (Incl. Ref. 8-10)

$16.99

$

In Stock, only 1 left!

0

20

MTD 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

21

MTD 734-04063B

Wheel, 7" Star-Dia., Oys. Gray

$18.99

$

In Stock, only 3 left!

0

22

MTD 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

23

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

24

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 17

0

25

MTD 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

26

MTD 946-05144

Control Cable, (Mtd Engine)

$14.99

$

In Stock, only 1 left!

0

27

MTD 938-04033

Shoulder Screw, 5/16-18 x.428"
(Superseded to 738-04033)

$

$

Not available
