11A-02JV000 - Yard Machines Walk-Behind Mower (2012) 1P65N0A Cylinder Head Parts Diagram

Walk-Behind Mower

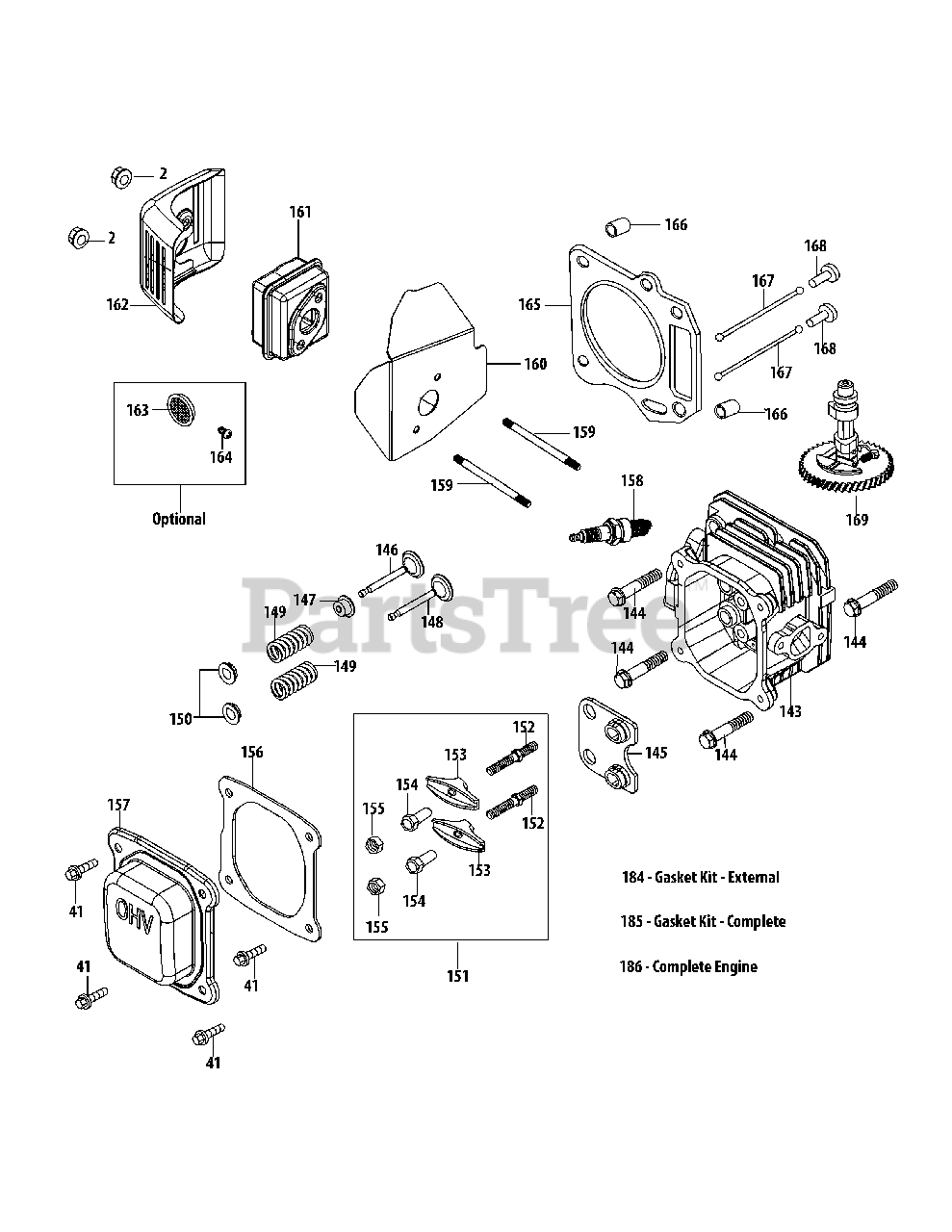

1P65N0A Cylinder Head Parts Diagram

  • Title

2

MTD 712-04212

Nut M6X10Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

41

MTD 710-04916

Bolt M6X14

$4.49

$

In Stock, Qty 11

0

143

MTD 951-10846A

Cylinder Head Svc Kit

Note: (Incl.144,147,156,165)

$19.99

$

Usually ships in 3-6 days

0

143

MTD 951-11746

Cylinder Head Asm

Note: (Incl.140,141,143,145-150,152-156,160,165)

$157.99

$

Usually ships in 3-6 days

0

144

MTD 710-04982

Bolt M8X54

$3.99

$

Usually ships in 3-6 days

0

145

MTD 951-11687

Push Rod Guide

$7.49

$

Usually ships in 3-6 days

0

146

MTD 951-10313

Valve Kit

$65.99

$

In Stock, only 1 left!

0

147

MTD 951-11818

Intake Valve Seal

$11.99

$

Usually ships in 3-6 days

0

148

MTD 951-10313

Valve Kit

$65.99

$

In Stock, only 1 left!

0

149

MTD 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

150

MTD 951-11977

Valve Spring Retainer

$4.49

$

In Stock, only 2 left!

0

151

MTD 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

152

MTD 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

153

MTD 951-12001

Rocker Arm

$7.99

$

In Stock, only 1 left!

0

154

MTD 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

155

MTD 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

156

MTD 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

157

MTD 951-11548

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

158

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

159

MTD 951-11740

Muffler Stud M6X68

$4.49

$

Usually ships in 3-6 days

0

159

MTD 951-11745

Muffler Stud Asm

$

$

Not available

160

MTD 951-11739

Muffler Gasket

$10.99

$

Usually ships in 3-6 days

0

161

MTD 951-10734

Muffler Assembly
(Superseded to 951-11742)

$76.99

$

Usually ships in 3-6 days

0

162

MTD 951-10735

Muffler Shield
(Superseded to 951-11743)

$

$

Not available

163

MTD 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

164

MTD 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

165

MTD 951-11555

Cylinder Head Gasket

$11.99

$

Usually ships in 3-6 days

0

166

MTD 715-04090

Cylinder Head Dowel Pin 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

167

MTD 951-10314

Push Rod Kit

$17.99

$

Usually ships in 3-6 days

0

168

MTD 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

169

MTD 951-11741

Camshaft Assembly

$66.99

$

Usually ships in 3-6 days

0

184

MTD 951-11710

Gasket - External

Note: (Incl.43,98,100,139-141,156,160)

$43.99

$

Usually ships in 3-6 days

0

185

MTD 951-11709

Gasket Kit - Complete

Note: (Incl.40,43,72,78,98,100,105,139-141,156,160,165)

$66.99

$

Usually ships in 3-6 days

0

186

MTD 952Z1P65N0A

Complete Engine
(Superseded to 952Z1P65NU)

$554.99

$

Usually ships in 3-6 days

0
