11A-02BT752 - Remington Walk-Behind Mower (2022) Handle Hardware Parts Diagram

Walk-Behind Mower

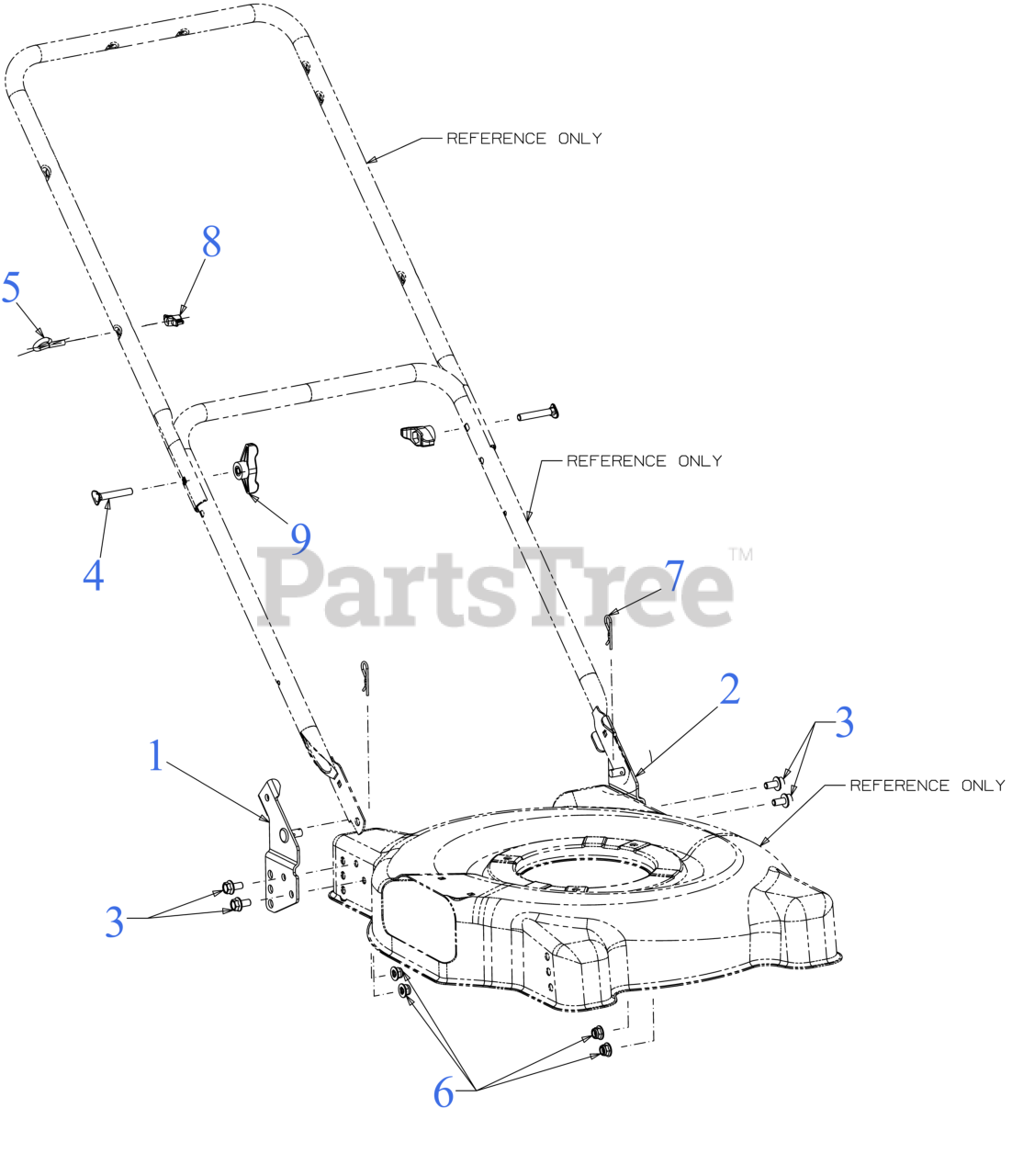

Handle Hardware Parts Diagram

  • Title
1

MTD 687Z05078

HANDLE BRACKET ASSEMBLY (RH)

$10.99

$

Usually ships in 3-6 days

0

2

MTD 687Z05079

HANDLE BRACKET ASSEMBLY (LH)

$10.99

$

Usually ships in 3-6 days

0

3

MTD 710-0759

SCREW 5/16-18 x .625 GR5

$6.99

$

Usually ships in 3-6 days

0

4

MTD 710-1174

SCREW .312-18X2.0

$7.49

$

In Stock, Qty 20+

0

5

MTD 710-1205

EYEBOLT 1/4-20

$3.99

$

In Stock, Qty 20+

0

6

MTD 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

MTD 714-0145

INTERNAL COTTER PIN

$4.99

$

In Stock, Qty 20+

0

8

MTD 720-0279

HANDLE KNOB

$4.49

$

In Stock, Qty 20+

0

9

MTD 720-04124

WING KNOB 5/16-18

$4.99

$

In Stock, Qty 7

0
