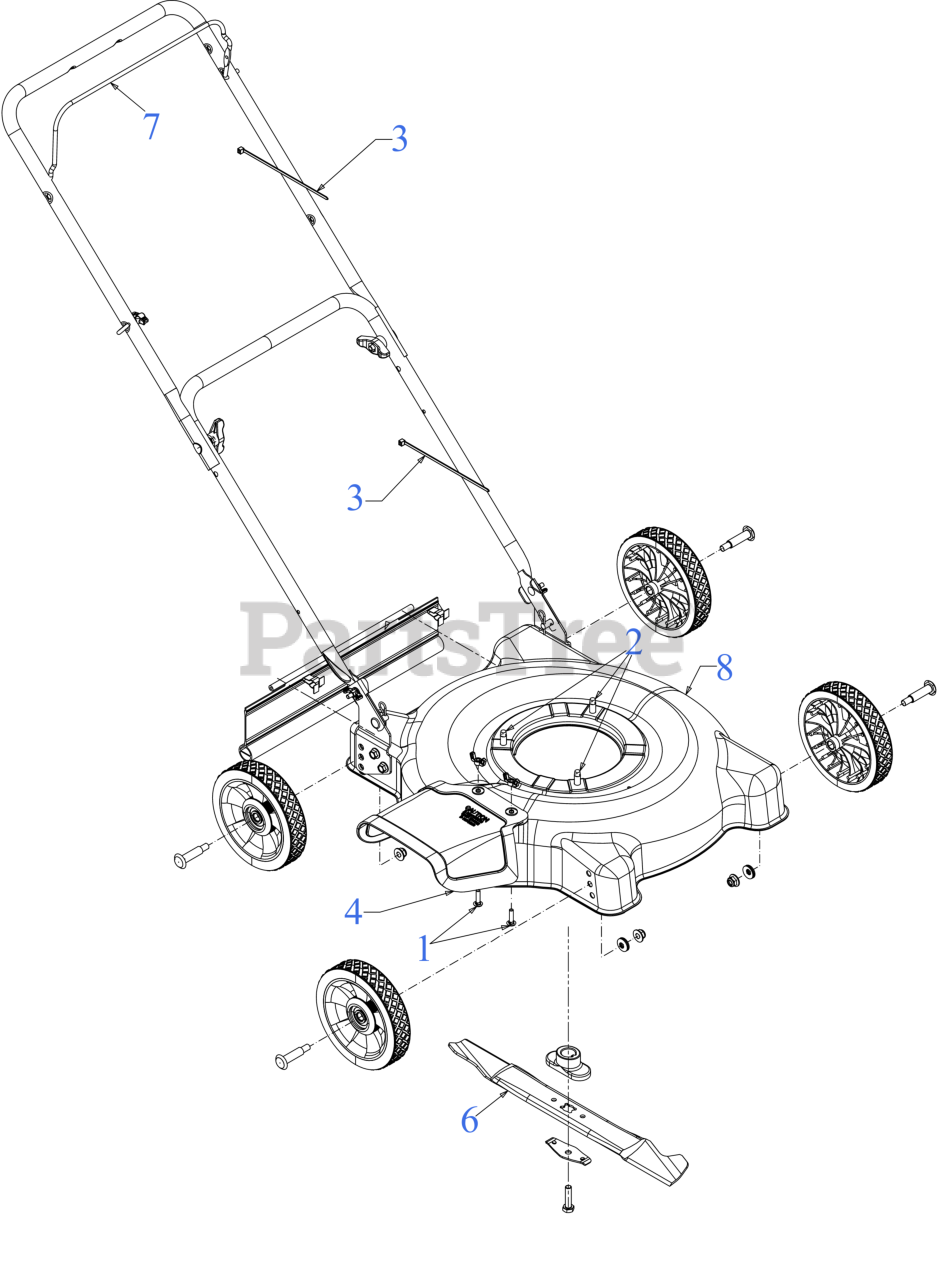

11A-02BT752 - Remington Walk-Behind Mower (2022) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

MTD 687-05080

SCREWPACK ASSEMBLY

Note: (See Separate Breakdown)

$12.99

$

Usually ships in 3-6 days

0

2

MTD 710-04683C

SCREW 3/8-16 x 1

$6.49

$

In Stock, only 3 left!

0

3

MTD 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

4

MTD 731-0064A

20" FIXED DISCHARGE CHUTE

$22.99

$

In Stock, only 1 left!

0

6

MTD 942-0640

20" BLADE

$28.99

$

In Stock, only 1 left!

0

6

MTD 490-100-M115

Genuine Factory Parts 20" MULCHING BLADE (STAR)

Note: Retail Packaged Part

$28.99

$

In Stock, only 1 left!

0

7

MTD 747-11709

OPERATOR BAIL

Note: *CHOOSE COLOR WHEN ORDERING*

$11.99

$

Usually ships in 3-6 days

0

8

MTD 787-01759A

20" DECK

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 787-01759A-0638

DECK-20" SIDE DISC - MTD/TROY-BILT RED (0638)

$141.99

$

In Stock, only 1 left!

0

MTD 787-01759A-0606

Orange DECK-20" SIDE DISC - MAJESTIC ORANGE (0606)

$141.99

$

Usually ships in 3-6 days

0

MTD 787-01759A-0640

DECK-20" SIDE DISC - CO-OP GREEN (0640)

$131.99

$

Usually ships in 3-6 days

0

MTD 787-01759A-0650

DECK-20" SIDE DISC - RED METALLIC (0650)

$122.99

$

Usually ships in 3-6 days

0

MTD 787-01759A-0691

DECK-20" SIDE DISC - BLACK JACK (0691)

$131.99

$

Usually ships in 3-6 days

0

MTD 787-01759A-0709

DECK-20" SIDE DISC - MASTERCRAFT GREEN (0709)

$141.99

$

In Stock, only 1 left!

0

$114.99

$

Usually ships in 3-6 days

0
