11A-02BT706 - MTD Walk-Behind Mower (2014) General Assembly Parts Diagram

Walk-Behind Mower

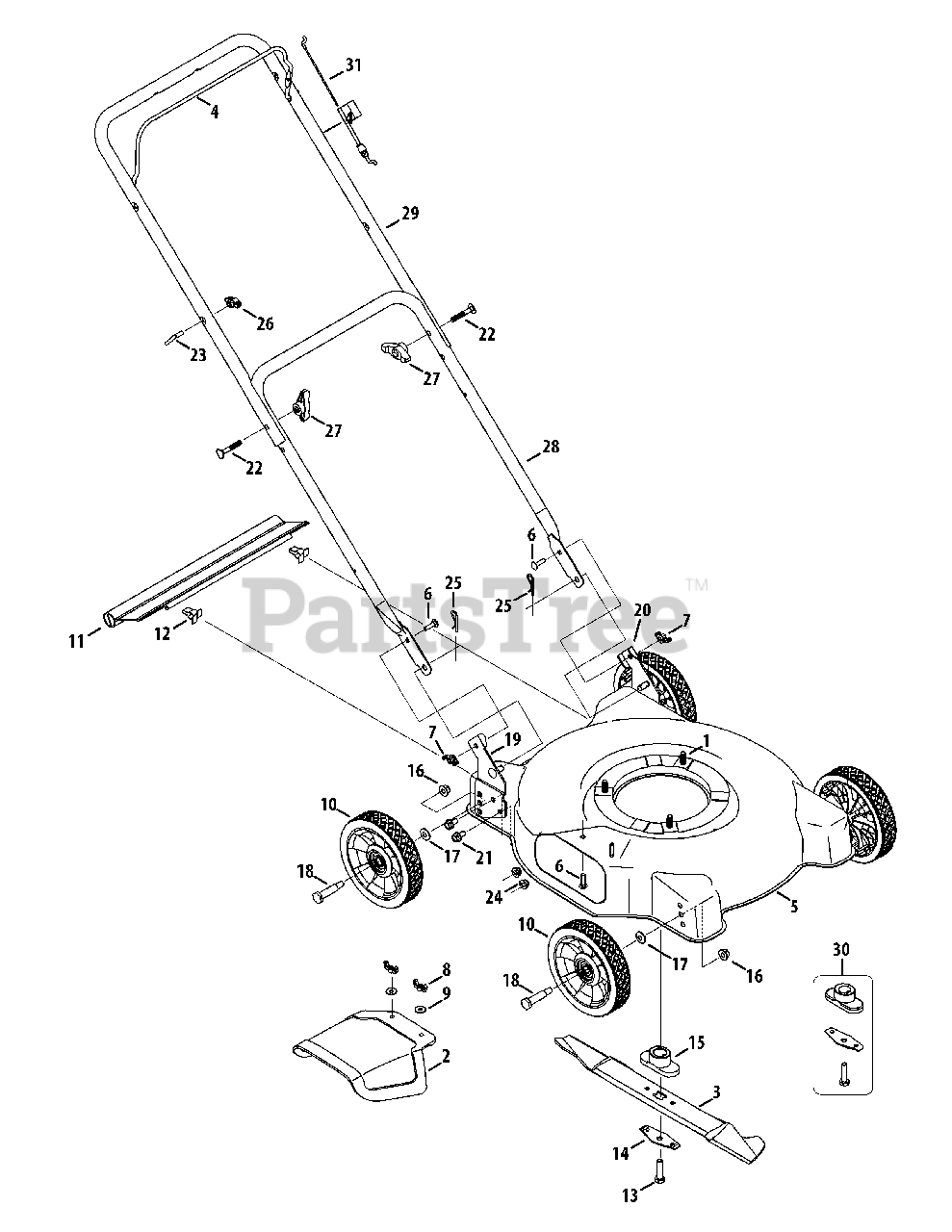

General Assembly Parts Diagram

  • Title

1

MTD 710-0654A

Hex Ind. Washer Screw, 3/8-16 x 1.0

$4.49

$

In Stock, only 3 left!

0

2

MTD 731-0064

Discharge Chute
(Superseded to 731-0064A)

$22.99

$

In Stock, only 1 left!

0

3

MTD 942-0640

Cutting Blade

$28.99

$

In Stock, only 1 left!

0

4

MTD 747-1161A

Blade Control

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 3 left!

0

$13.99

$

In Stock, only 3 left!

0

5

MTD 787-01759A-0638

Cutting Deck, 20"

$141.99

$

In Stock, only 1 left!

0

6

MTD 710-0932A

Carriage Screw, 1/4-20 x 1.0"

$3.99

$

In Stock, only 4 left!

0

7

MTD 712-0397A

Wing Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

8

MTD 712-05057

Wing Nut, 1/4-20

$5.49

$

In Stock, Qty 5

0

9

MTD 736-0173

Flat Washer

$4.49

$

In Stock, Qty 20+

0

10

MTD 734-04063A

Wheel, 7" Star-Dia., Oys. Gray
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

11

MTD 731-06953

Rear Flap

$12.99

$

In Stock, only 1 left!

0

12

MTD 732-04631A

Hinge Clip

$4.49

$

In Stock, only 1 left!

0

13

MTD 710-1044

Screw, 3/8-24 x 1.5"

$3.99

$

Usually ships in 3-6 days

0

14

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 8

0

15

MTD 748-0376E

Blade Adapter

$20.99

$

In Stock, only 2 left!

0

16

MTD 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 17

0

17

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

18

MTD 938-0533

Shoulder Screw, .498 x 1.635
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

19

MTD 687-05078

Handle Bracket Assembly, RH
(Superseded to 687Z05078)

$10.99

$

Usually ships in 3-6 days

0

20

MTD 687-05079

Handle Bracket Assembly, LH
(Superseded to 687Z05079)

$10.99

$

Usually ships in 3-6 days

0

21

MTD 710-0759

Hex Screw, 5/16-18 x .625"

$6.99

$

Usually ships in 3-6 days

0

22

MTD 710-1174

Carriage Bolt, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

23

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

24

MTD 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

25

MTD 914-0145

Click Pin, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

26

MTD 720-0279

Wing Nut

$4.49

$

In Stock, Qty 20+

0

27

MTD 720-04122

Wing Knob

$6.99

$

In Stock, only 4 left!

0

28

MTD 749-0928A

Lower handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

29

MTD 749-1092A-0637

Upper Handle

$48.99

$

Usually ships in 3-6 days

0

30

MTD 753-06315

Blade Adapter Kit (Incl. Ref. 13-15)

$16.99

$

In Stock, only 1 left!

0

31

MTD 946-04661A

Control Cable

$13.99

$

In Stock, only 2 left!

0
