11A-020B897 - Columbia 20" Walk-Behind Mower (2011) Model Series 020 Parts Diagram

20" Walk-Behind Mower

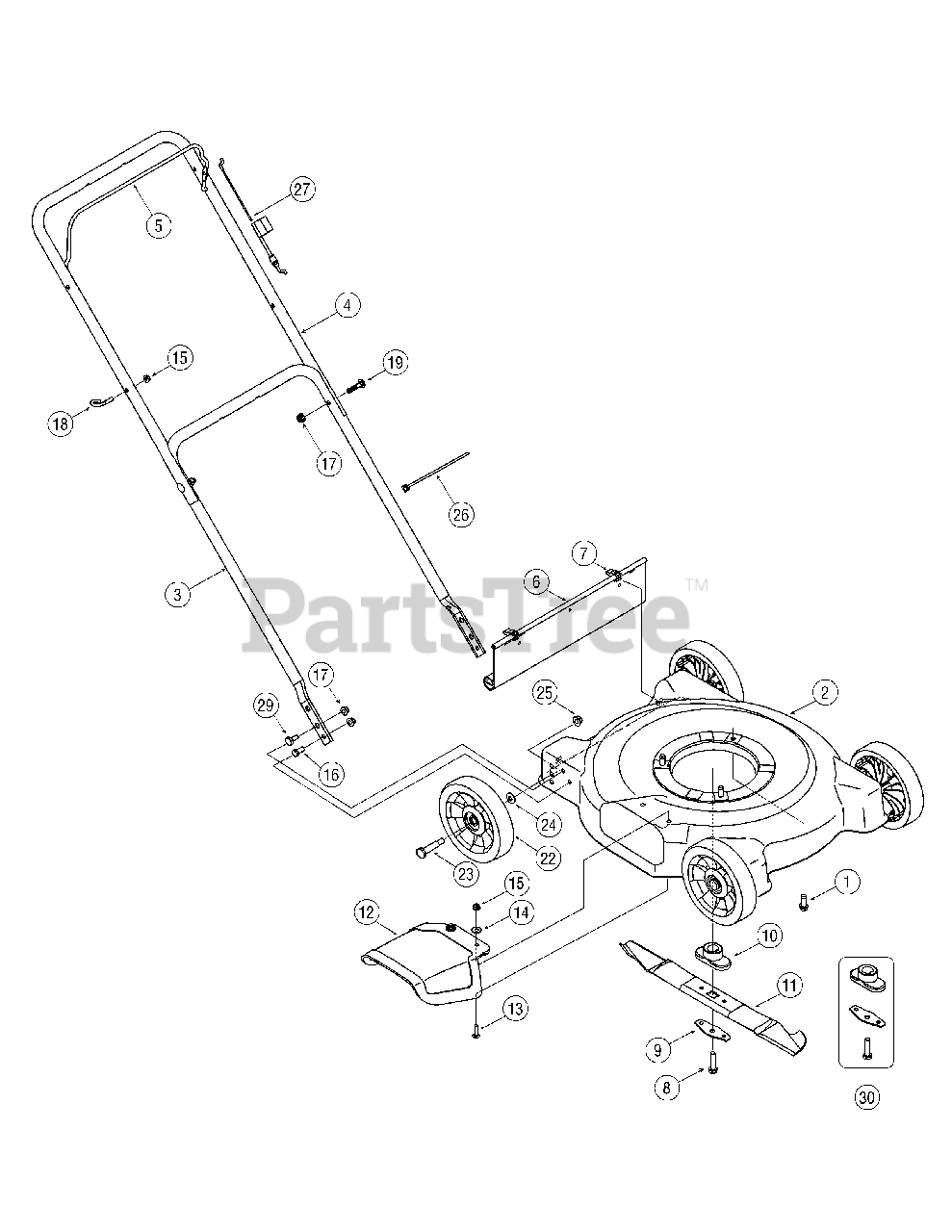

Model Series 020 Parts Diagram

  • Title

1

MTD 710-0654A

Hex Wash HD Tap Screw 3/8-16 x .88

$4.49

$

In Stock, only 4 left!

0

2

MTD 787-01759

20" Deck w/o sprig logo

Variations

MTD 787-01759-0638

DECK-20" SIDE DISC - MTD/TROY-BILT RED (0638)

$141.99

$

In Stock, only 1 left!

0

MTD 787-01759-0606

Orange DECK-20" SIDE DISC - MAJESTIC ORANGE (0606)

$141.99

$

Usually ships in 3-6 days

0

MTD 787-01759-0640

DECK-20" SIDE DISC - CO-OP GREEN (0640)

$131.99

$

Usually ships in 3-6 days

0

MTD 787-01759-0650

DECK-20" SIDE DISC - RED METALLIC (0650)

$122.99

$

Usually ships in 3-6 days

0

MTD 787-01759-0691

DECK-20" SIDE DISC - BLACK JACK (0691)

$131.99

$

Usually ships in 3-6 days

0

MTD 787-01759-0709

DECK-20" SIDE DISC - MASTERCRAFT GREEN (0709)

$141.99

$

In Stock, only 1 left!

0

$101.99

$

Usually ships in 3-6 days

0

3

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

4

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

5

MTD 747-1161A-0637

Blade Control Handle

$13.99

$

In Stock, only 1 left!

0

6

MTD 731-06953

Rear Flap

$12.99

$

In Stock, only 1 left!

0

7

MTD 732-04631

Hinge Clip
(Superseded to 732-04631A)

$4.49

$

Usually ships in 3-6 days

0

8

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Gr 8)

$3.99

$

In Stock, only 1 left!

0

9

MTD 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

10

MTD 748-0376E

Blade Adapter

$20.99

$

In Stock, only 1 left!

0

11

MTD 942-0640

Blade, Centre Star, 20"

$28.99

$

Usually ships in 3-6 days

0

12

MTD 731-0064

Fixed Side Chute
(Superseded to 731-0064A)

$22.99

$

In Stock, only 1 left!

0

13

MTD 710-0932

Carriage Bolt 1/4-20 x 1.00" Lg.
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

14

MTD 736-0173

Flat Washer .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-04064

Flanged Lock Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

16

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-04063

Flanged Lock Nut 5/16-18 Gr. F Nylon

$3.99

$

In Stock, Qty 5

0

18

MTD 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0262

Carriage Bolt 5/16-18 x 1.50 Gr. 2

$3.99

$

In Stock, Qty 11

0

22

MTD 734-04063A

Front Wheel Ass’y 7" Star Diamond Grey
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

23

MTD 938-0533

Shoulder Screw .498" DIA. x 1.64
(Superseded to 738-0533)

$7.99

$

Usually ships in 3-6 days

0

24

MTD 736-0105

Cupped Washer .375 ID x .870 OD x .063

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-04065

Flanged Lock Nut 3/8-16 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

26

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

27

MTD 946-0957

Control Cable 139 cc (B&S)

$17.99

$

In Stock, Qty 20+

0

27

MTD 946-04703

Control Cable 148 cc (Powermore)
(Superseded to 946-04703A)

$21.99

$

In Stock, only 3 left!

0

29

MTD 938-04033

Shoulder Screw, 3/8-16 x .428
(Superseded to 738-04033)

$

$

Not available

30

MTD 753-06315

Blade Adapter Kit

$16.99

$

In Stock, only 1 left!

0
