11A-020B752 - Yard Machines 20" Walk-Behind Mower (2004) (Walmart) General Assembly Parts Diagram

20" Walk-Behind Mower

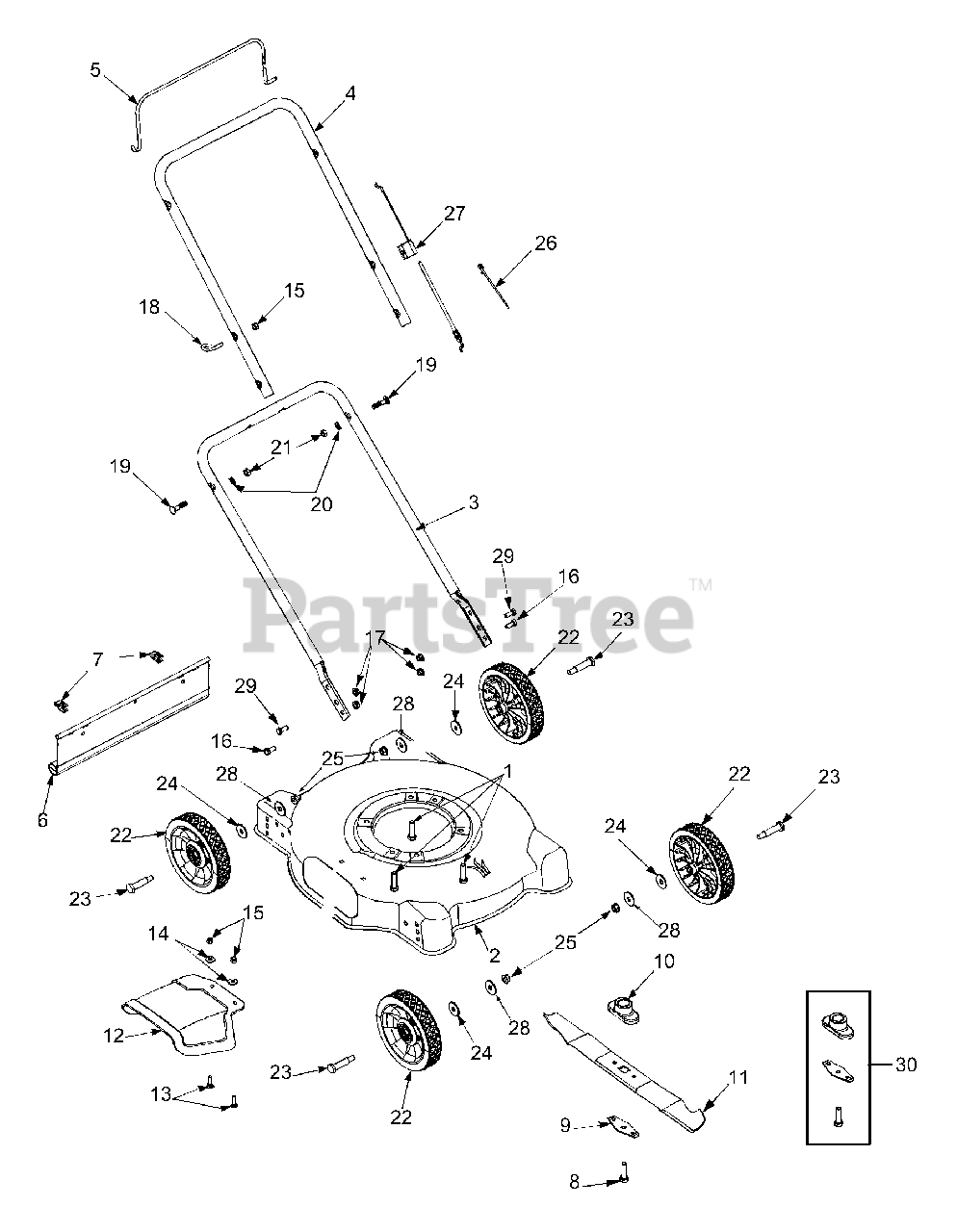

General Assembly Parts Diagram

  • Title

1

MTD 710-0654A

Hex Ind. Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, only 4 left!

0

2

MTD 782-0048

Cutting Deck: 20"

Variations

MTD 782-0048-0483

DECK ASSEMBLY-20IN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 782-0048-0638

DECK ASSEMBLY-20IN - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 782-0048-0606

20" Deck w/sprig logo - MAJESTIC ORANGE (0606)

$

$

Not available

MTD 782-0048-0691

DECK ASSEMBLY-20IN - BLACK JACK (0691)

$

$

Not available

$

$

3

MTD 749-04037

Lower Handle

Variations

MTD 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

4

MTD 749-1092A

Upper Handle

Variations

MTD 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

MTD 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

5

MTD 747-1161A

Control Handle (Bail)

Variations

MTD 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

6

MTD 731-0872A

Rear Flap
(Superseded to 731-0872B)

$39.99

$

In Stock, Qty 6

0

7

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

8

MTD 710-1044

Screw 3/8-24 x 1.5" Group 8

$3.99

$

In Stock, only 1 left!

0

9

MTD 936-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

10

MTD 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

11

MTD 742-0640

Cutting Blade
(Superseded to 942-0640)

$28.99

$

Usually ships in 3-6 days

0

12

MTD 731-0064

Discharge Chute
(Superseded to 731-0064A)

$22.99

$

In Stock, only 1 left!

0

13

MTD 710-0932

Carriage Screw 1/4-20 x 1.0"
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

14

MTD 736-0173

Flat Washer

$4.49

$

In Stock, Qty 20+

0

15

MTD 712-0324

Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

16

MTD 710-3008

Hex Bolt 5/16-18

$4.49

$

In Stock, Qty 20+

0

17

MTD 712-3004A

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

MTD 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

19

MTD 710-0262

Carriage Bolt 5/16-18 x 1.5"

$3.99

$

In Stock, Qty 11

0

20

MTD 736-0119

Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0267

Nut 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 734-1779

Wheel
(Superseded to 734-1779A)

$20.99

$

In Stock, only 3 left!

0

23

MTD 738-0533

Shoulder Screw .498 x 1.635

$7.99

$

Usually ships in 3-6 days

0

24

MTD 736-0105

Bell Washer

$4.49

$

In Stock, Qty 20+

0

25

MTD 712-0798

Flange Lock Nut

$4.49

$

In Stock, Qty 12

0

26

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

27

MTD 746-0946

Control Cable (Model 021)
(Superseded to 946-0946)

$19.99

$

In Stock, only 1 left!

0

MTD 746-0957

Control Cable (Models 020 & 022)
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

28

MTD 736-0331

Bell Washer

$3.99

$

In Stock, Qty 20+

0

29

MTD 738-04033

Shoulder Screw, 3/8-16x.428
(Superseded to 938-04033)

$

$

Not available

30

MTD 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

Note: (Incl. Ref. 8- 10)

$16.99

$

In Stock, only 1 left!

0
