11A-020B597 - Columbia 20" Walk-Behind Mower (2008) General Assembly Parts Diagram

20" Walk-Behind Mower

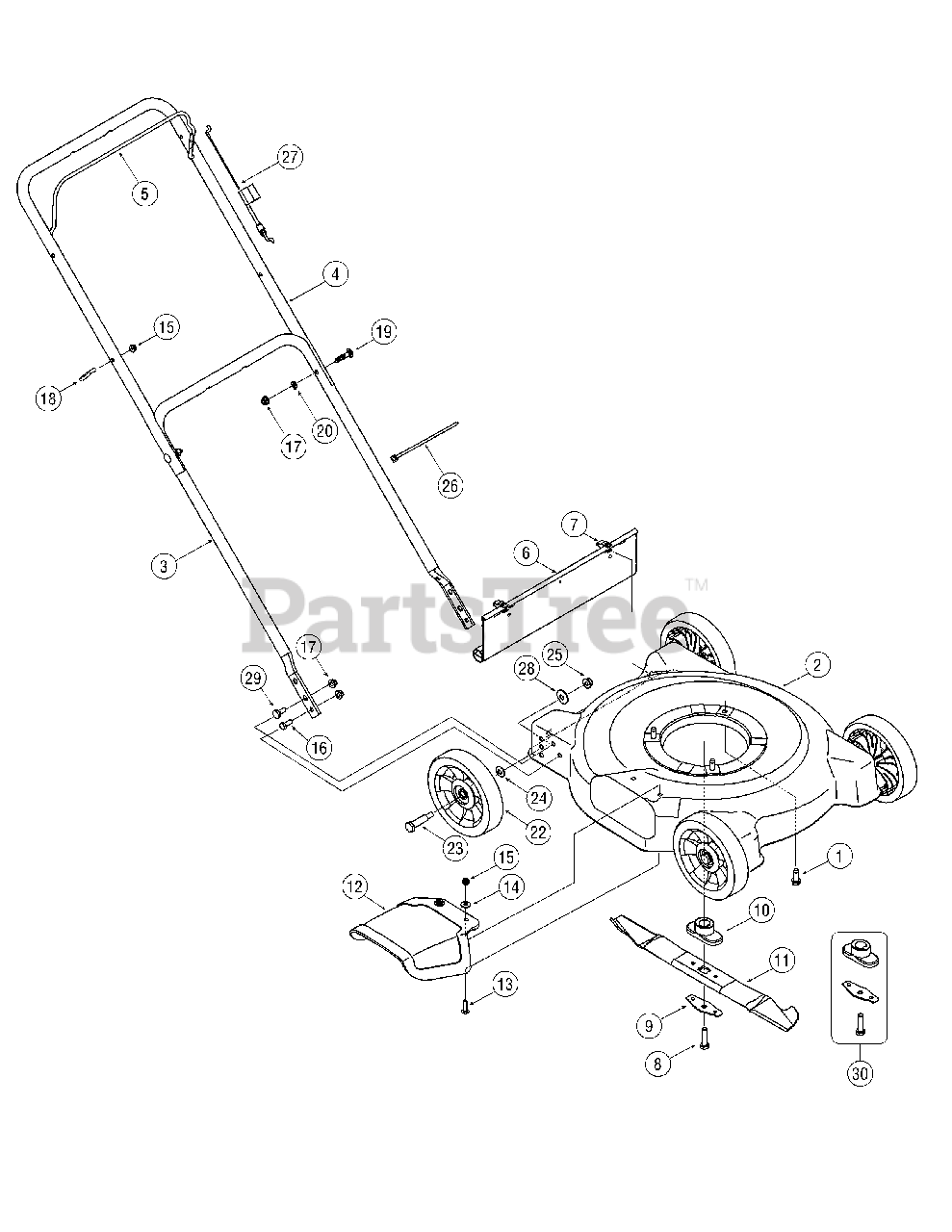

General Assembly Parts Diagram

  • Title

1

White Outdoor 710-0654A

Hex Wash HD Tap Scr 3/8-16 x .88

$4.49

$

In Stock, only 4 left!

0

2

White Outdoor 787-01602

20"Deck
(Superseded to 787-01759A)

Variations

White Outdoor 787-01602-0638

DECK-20" SD NO SPR - MTD/TROY-BILT RED (0638)

$141.99

$

In Stock, only 1 left!

0

White Outdoor 787-01602-0606

DECK-20" SD NO SPRIG - MAJESTIC ORANGE (0606)

$141.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01602-0650

DECK-20" SD NO SPRIG - RED METALLIC (0650)

$122.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01602-0691

DECK-20" SD NO SPRIG - BLACK JACK (0691)

$131.99

$

Usually ships in 3-6 days

0

White Outdoor 787-01602-0709

DECK-20" SD NO SPRIG - MASTERCRAFT GREEN (0709)

$141.99

$

In Stock, only 1 left!

0

$114.99

$

Usually ships in 3-6 days

0

3

White Outdoor 749-04037

Lower Handle

Variations

White Outdoor 749-04037-0637

Long Lower Handle, Black - POWDER BLACK (0637)

$53.99

$

In Stock, Qty 5

0

$53.99

$

In Stock, Qty 5

0

4

White Outdoor 749-1092A

Upper Handle

Variations

White Outdoor 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

White Outdoor 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

5

White Outdoor 747-1161A

Blade Control Handle

Variations

White Outdoor 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

6

White Outdoor 731-0872B

Rear Flap

$39.99

$

In Stock, Qty 6

0

7

White Outdoor 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

8

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5"Lg. (Gr 8)

$3.99

$

In Stock, only 1 left!

0

9

White Outdoor 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

10

White Outdoor 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

11

White Outdoor 742-0640

Blade, Centre Star, 20"
(Superseded to 942-0640)

$28.99

$

Usually ships in 3-6 days

0

12

White Outdoor 731-0064

Fixed Side Chute
(Superseded to 731-0064A)

$22.99

$

In Stock, only 1 left!

0

13

White Outdoor 710-0932

Carriage Bolt 1/4-20 x 1.00"Lg.
(Superseded to 710-0932A)

$3.99

$

In Stock, only 4 left!

0

14

White Outdoor 736-0173

Flat Washer .28 ID x .74 OD x .063

$4.49

$

In Stock, Qty 20+

0

15

White Outdoor 712-04064

Flanged Lock Nut 1/4-20 Gr.F Nylon

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-3008

Hex Bolt 5/16-18 x .75" Lg.Gr. 5

$4.49

$

In Stock, Qty 20+

0

17

White Outdoor 712-04063

Flanged Lock Nut 5/16-18 Gr.F Nylon

$3.99

$

In Stock, Qty 5

0

18

White Outdoor 710-1205

Rope Guide Bolt

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 710-0262

Carriage Bolt 5/16-18 x 1.50 Gr.2

$3.99

$

In Stock, Qty 11

0

20

White Outdoor 736-0119

L-Wash 5/16 ID
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

22

White Outdoor 734-04063

Front Wheel Ass’y 7 Star Diamond, Grey
(Superseded to 734-04063B)

$18.99

$

In Stock, only 3 left!

0

23

White Outdoor 738-0533

Shoulder Screw .498"DIA. x 1.64

$7.99

$

Usually ships in 3-6 days

0

24

White Outdoor 736-0105

Cupped Washer .375 ID x .870 OD x .063

$4.49

$

In Stock, Qty 20+

0

25

White Outdoor 712-04065

Flanged Lock Nut 3/8-16 Gr.F Nylon

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 746-0957

Control Cable 37.25"Lg. (B&S)
(Superseded to 946-0957)

$17.99

$

In Stock, Qty 20+

0

28

White Outdoor 736-0331

Cupped Washer .39 ID x 1,12 OD

$3.99

$

In Stock, Qty 20+

0

29

White Outdoor 738-04033

Shoulder Screw, 3/8-16 x .428
(Superseded to 938-04033)

$

$

Not available

30

White Outdoor 753-0588

Blade Adapter Kit
(Superseded to 753-06315)

$16.99

$

In Stock, only 1 left!

0
