119-809R190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1989) Rotary Mower Parts Diagram

Lawn Boss 21" Walk-Behind Mower

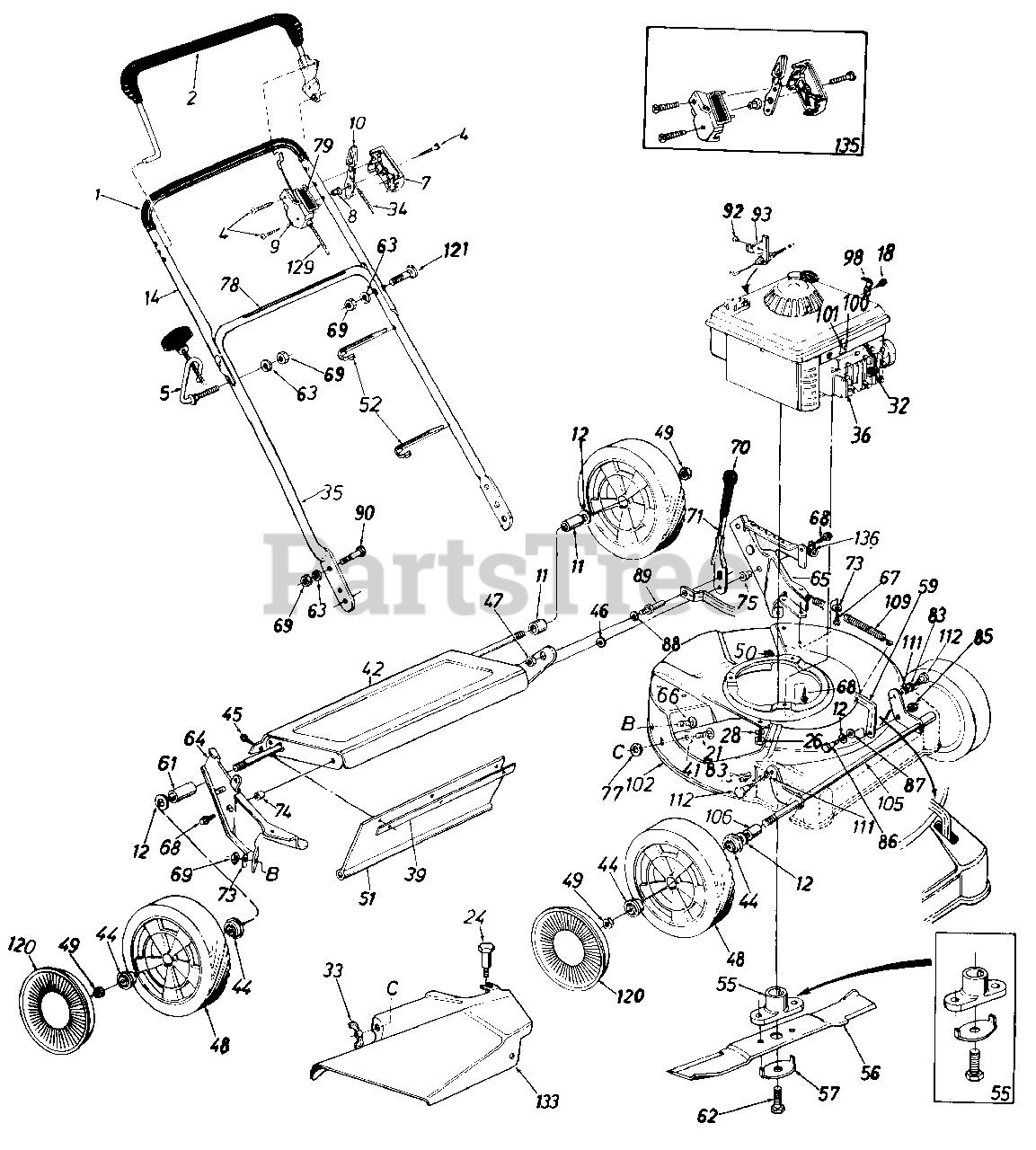

Rotary Mower Parts Diagram

  • Title

1

White Outdoor 720-0226

Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

2

White Outdoor 731-0609

Control Handle Ass'y.-L.H.

$

$

Not available

4

White Outdoor 710-0796

Truss Mach. Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

5

White Outdoor 710-0842B

Rope Guide Bolt

$

$

Not available

7

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

8

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

9

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

10

White Outdoor 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

11

White Outdoor 711-0500

Spacer .526" I.D. x .690" O.D x .640" Lg.
(Superseded to 911-0500)

$

$

Not available

12

White Outdoor 736-0108

Fl-Wash. .510" I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

14

White Outdoor 749-0438A

Upper Handle
(Superseded to 749-0438D-0637)

$

$

Not available

18

White Outdoor 710-0429

Hex B-Tap Scr. #10 x .38"
(Superseded to 910-0429)

$3.99

$

Usually ships in 3-6 days

0

21

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62"

$4.49

$

In Stock, Qty 20+

0

24

White Outdoor 738-0704

Shoulder Bolt .312 Dia. x .18 Lg. Special

$17.99

$

Usually ships in 3-6 days

0

26

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

28

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

32

White Outdoor 735-0639

Spark Plug Insulator

$

$

Not available

33

White Outdoor 712-0388

Wing Nut w/Washer
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

White Outdoor 746-0672

Throttle Control Wire 58"
(Superseded to 946-0674A)

$18.99

$

In Stock, only 1 left!

0

35

White Outdoor 749-0725

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

36

Engine

$

$

Not available

39

White Outdoor 14835

Retaining Strip

$

$

Not available

41

White Outdoor 736-0204

Fl-Wash. .344" I.D. x .62"

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 16131A

Rear Axle Ass'y.

Variations

White Outdoor 16131A-0483

No Longer Available Axle Assy-rr - CHARCOAL GRAY (0483)

$

$

Not available

White Outdoor 16131A-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

White Outdoor 16131A-0629

No Longer Available axle - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 16131A-0637

No Longer Available Axle - POWDER BLACK (0637)

$

$

Not available

White Outdoor 16131A-0638

No Longer Available Axle - MTD/TROY-BILT RED (0638)

$

$

Not available

White Outdoor 16131A-0662

No Longer Available axle - OYSTER GRAY (0662)

$

$

Not available

White Outdoor 16131A-0665

No Longer Available Axle - YARDMAN GREEN (0665)

$

$

Not available

$

$

44

White Outdoor 741-0180

Flange Ball Bearing 1/2" I.D.
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

White Outdoor 710-0776A

Hex AB-Tap Scr. 1/4 x .62"
(Superseded to 710-0896)

$4.49

$

In Stock, Qty 20+

0

46

White Outdoor 736-0258

Fl-Wash. .38" I.D. x 1.0"

$4.49

$

Usually ships in 3-6 days

0

47

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

48

White Outdoor 734-1513A

Wheel Ass'y.-Comp. 8" x 2"
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

49

White Outdoor 712-0346

Hex L-Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 6

0

50

White Outdoor 731-0564

Plug

$

$

Not available

51

White Outdoor 731-0671A

Rear Flap 3.75" x 17.30" Lg.
(Superseded to 731-1484)

$

$

Not available

52

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

55

White Outdoor 753-0462

Blade Adapter Kit

$

$

Not available

56

White Outdoor 742-0306

21n Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

57

White Outdoor 736-0415

Blade Bell-Wash. .44" I.D. x 2.38"
(Superseded to 753-0525)

$

$

Not available

59

White Outdoor 16863

Height Adj. Connecting Arm

$

$

Not available

61

White Outdoor 711-0313

Sleeve .526" I.D. x .69"
(Superseded to 911-0313)

$

$

Not available

62

White Outdoor 710-1044

Hex Bolt 3/8-24 x 1.5" Lg. (Grade 5)

$3.99

$

In Stock, only 1 left!

0

63

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

64

White Outdoor 16136A

R.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16136C-0637)

$

$

Not available

65

White Outdoor 16137B

L.H. Handle Wheel Brkt. Ass'y.
(Superseded to 16137C-0637)

$

$

Not available

66

White Outdoor 710-0260

Carriage Bolt 5/16-18 x .62"
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

67

White Outdoor 710-0603

Hex Wash. Hd. B-Tap Scr. 5/16-1 8

$4.99

$

Usually ships in 3-6 days

0

68

White Outdoor 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-1 6

$4.49

$

In Stock, only 4 left!

0

69

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

70

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

71

White Outdoor 732-0606

Height Adj. Lever

$

$

Not available

73

White Outdoor 736-0242

Bell-Wash. 5/16" I.D.

$4.49

$

In Stock, Qty 20+

0

74

White Outdoor 750-0736

Spacer .383" I.D. x .503" O.D.
(Superseded to 950-0736)

$5.49

$

Usually ships in 3-6 days

0

75

White Outdoor 750-0624

Shld. Spacer .500" Dia.

$

$

Not available

77

White Outdoor 726-0233

Bolt Retainer 1/4 X .50" O.D.

$4.49

$

In Stock, Qty 20+

0

78

777-5816

Instruction Label

$

$

Not available

79

MTD 777-5812

Control Label

$

$

Not available

83

White Outdoor 741-0491

Flanged Nyliner Brg.

$5.49

$

In Stock, only 3 left!

0

85

White Outdoor 712-0266

Hex Jam Nut 3/8-16 Thd.
(Superseded to 712-0266A)

$3.99

$

In Stock, Qty 11

0

86

White Outdoor 738-0234

Shld. Bolt .50" Dia. x .295"

$10.99

$

Usually ships in 3-6 days

0

87

White Outdoor 736-0253

Bell-Wash. .515" l.D. x 1.0" O.D.

$3.99

$

In Stock, Qty 20+

0

88

White Outdoor 736-0169

L-Wash. 3/8" I.D.*

$3.99

$

In Stock, Qty 20+

0

89

White Outdoor 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

90

White Outdoor 710-0323

Truss Mach. Scr. 5/16-18 x .75"

$4.99

$

In Stock, only 2 left!

0

92

White Outdoor 728-0171

Pop Rivet

$

$

Not available

93

White Outdoor 14924

Cable Bracket

$

$

Not available

98

White Outdoor 12894A

Cable Clamp

$

$

Not available

100

White Outdoor 710-0436

Hex B-Tap Scr. #10 x .62" Lg.
(Superseded to 710-0651)

$3.99

$

Usually ships in 3-6 days

0

101

White Outdoor 751-0463

Cable Clamp

$

$

Not available

102

White Outdoor 16858

N/483 0 21" Deck Ass'y.

Variations

White Outdoor 16858-0629

No Longer Available DECK ASSEMBLY-21IN - SILVER FLAKE (0629)

$

$

Not available

White Outdoor 16858-0638

No Longer Available DECK ASSEMBLY-21IN - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

105

White Outdoor 16856

Front Axle Ass'y.
(Superseded to 982-7509-0637)

$

$

Not available

106

White Outdoor 711-0313

Sleeve .526" I.D. x .690" O.D. x .880" Lg.
(Superseded to 911-0313)

$

$

Not available

109

White Outdoor 732-0362

Extension Spring 8" Lg.
(Superseded to 932-0362)

$

$

Not available

111

White Outdoor 736-0221

Intern. L-Wash. 3/8 I.D.

$

$

Not available

112

White Outdoor 738-0705

Shld. Bolt .575" Dia. x .42"
(Superseded to 938-0705)

$

$

Not available

120

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

121

White Outdoor 710-0671

Curved Carr. Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

129

White Outdoor 746-0480A

Control Cable 46" Lg.
(Superseded to 946-0480A)

$

$

Not available

133

White Outdoor 731-0884

Side Chute Deflector Ass'y.

$

$

Not available

135

White Outdoor 753-0430

Kit-Control Housing Comp.

$

$

Not available

136

White Outdoor 726-0175

Cable Clamp

$

$

Not available
