119-7380 - Toro Speed Control Removal Kit (2010 & Before) SPEED CONTROL REMOVAL ASSEMBLY NO. 119-7380 Parts Diagram

Speed Control Removal Kit

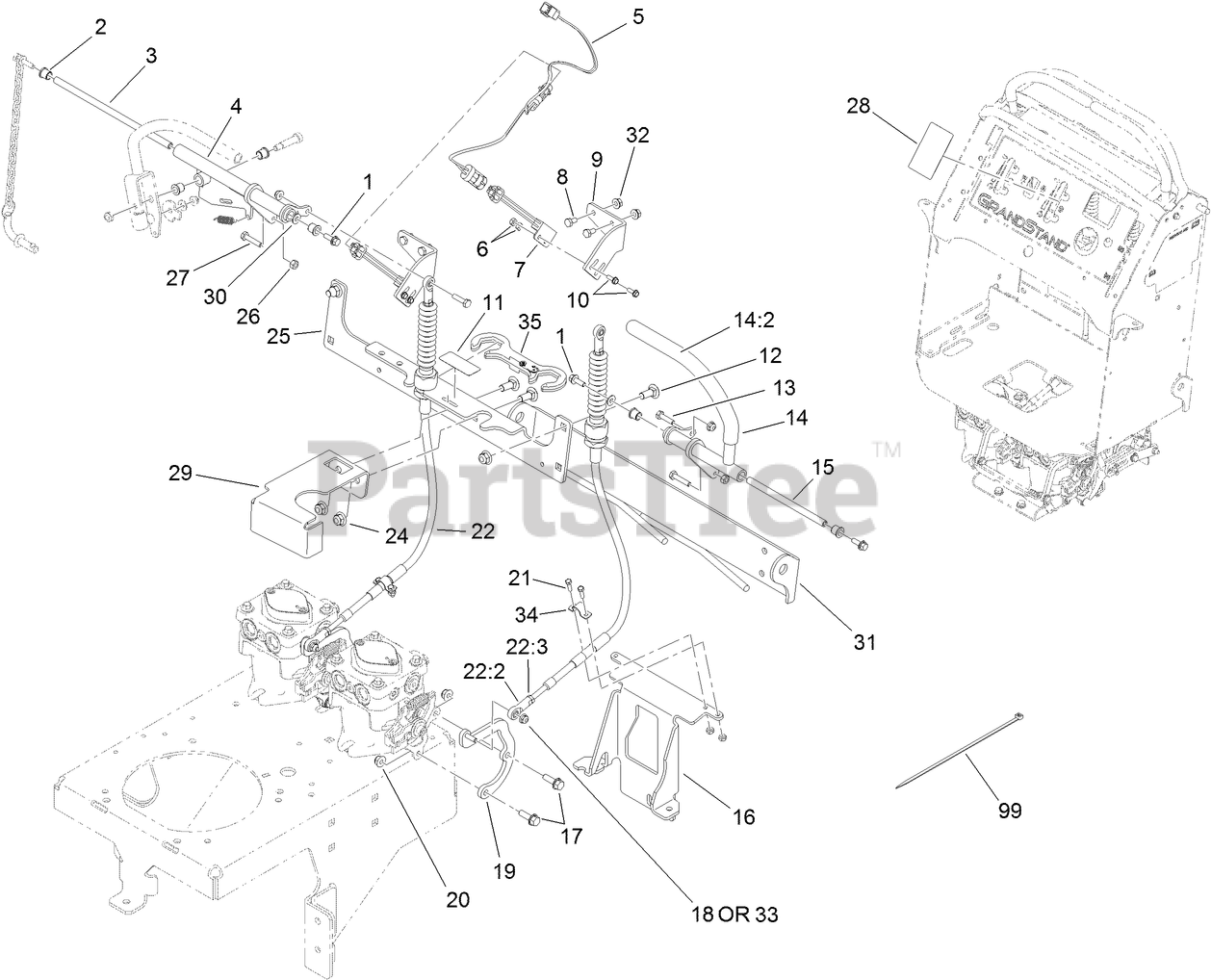

SPEED CONTROL REMOVAL ASSEMBLY NO. 119-7380 Parts Diagram

  • Title

1

Toro 3234-4

SCREW-HHF

$0.99

$

In Stock, Qty 13

0

2

Toro 103-9928

BEARING

$7.99

$

In Stock, Qty 20+

0

3

Toro 119-1886

SHAFT-PIVOT

$22.99

$

Usually ships in 3-6 days

0

4

Toro 119-7353

RH MOTION CONTROL ASM
(Superseded to 121-7992)

$239.99

$

Usually ships in 3-6 days

0

5

Toro 120-6408

HARNESS-WIRE

$92.99

$

Usually ships in 3-6 days

0

6

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 105-0023

SWITCH-PROXIMITY

$143.99

$

In Stock, only 1 left!

0

8

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

9

Toro 119-8503-01

BRACKET-MOUNT, SWITCH

$18.99

$

Usually ships in 3-6 days

0

10

Toro 32105-23

SCREW

$1.49

$

In Stock, only 4 left!

0

11

Toro 119-1854

DECAL-TRACKING, HYDRO

$12.99

$

Usually ships in 3-6 days

0

12

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

13

Toro 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

14

Toro 119-8743

LH LEVER ASM
(Superseded to 121-7993)

$212.99

$

Usually ships in 3-6 days

0

14:2

Toro 119-0222

GRIP

$9.49

$

Usually ships in 3-6 days

0

15

Toro 119-1885

SHAFT-PIVOT, MOTION CONTROL

$21.99

$

Usually ships in 3-6 days

0

16

Toro 119-8746-01

BRACKET-MOUNT, CABLE

$79.99

$

Usually ships in 3-6 days

0

17

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

18

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

19

Toro 121-6024

PUMP LEVER ASM

$49.99

$

Usually ships in 3-6 days

0

20

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 15

0

21

Toro 3290-134

SCREW

$0.99

$

In Stock, Qty 10

0

22

Toro 119-7366

CABLE ASM

$271.99

$

Usually ships in 3-6 days

0

22:2

Toro 119-7379

ROD END-BALL JOINT

$14.99

$

In Stock, only 3 left!

0

22:3

Toro 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 119-7359-01

BRACKET-CROSS

$66.99

$

Usually ships in 3-6 days

0

26

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

27

Toro 114-0282

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

28

Toro 119-7383

DECAL-COVER UP

$12.99

$

Usually ships in 3-6 days

0

29

Toro 119-7384-01

BRACKET-TANK

$46.99

$

Usually ships in 3-6 days

0

30

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

31

Toro 119-7369-03

HINGE-LOWER

$117.99

$

Usually ships in 3-6 days

0

32

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 20+

0

33

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

34

Toro 119-7370

CLAMP

$7.49

$

In Stock, only 2 left!

0

35

Toro 120-8372

LOCK-CABLE

$20.99

$

Usually ships in 3-6 days

0

99

Toro 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0
