119-7292 - Toro Operator-Controlled Discharge Chute Kit CHUTE GATE ASSEMBLY NO. 119-7292 Parts Diagram

Operator-Controlled Discharge Chute Kit

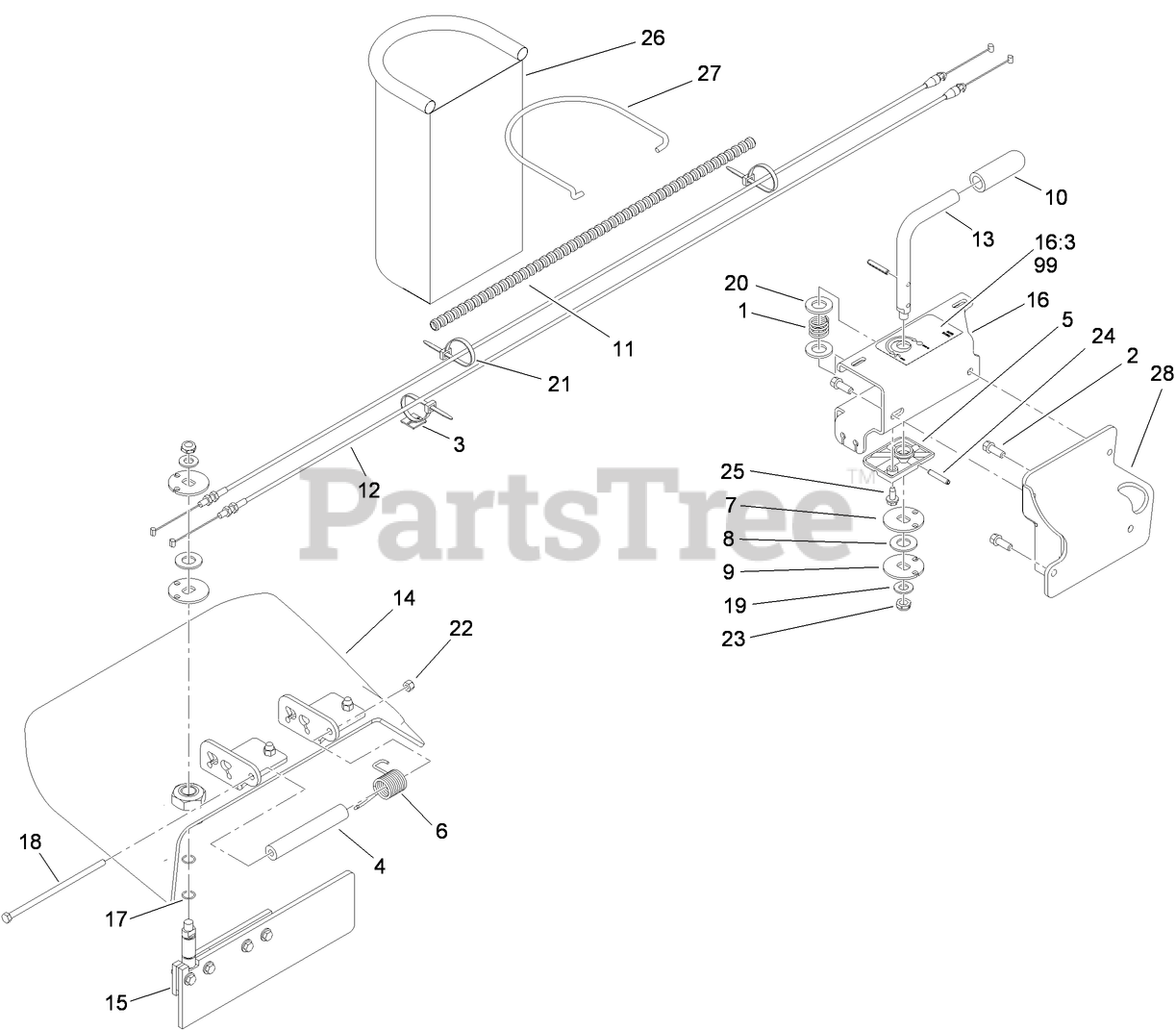

CHUTE GATE ASSEMBLY NO. 119-7292 Parts Diagram

  • Title

1

Toro 87-3660

SPRING-COMPRESSION

$16.99

$

Usually ships in 3-6 days

0

2

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

3

Toro 93-3922

MOUNT-TIE, CABLE

$24.99

$

Usually ships in 3-6 days

0

4

Toro 105-4622

SPACER

$10.99

$

In Stock, only 3 left!

0

5

Toro 108-2231

BLOCK-DETENT

$22.99

$

Usually ships in 3-6 days

0

6

Toro 108-4052

SPRING-TORSION

$25.99

$

In Stock, only 1 left!

0

7

Toro 108-7216

PULLEY-BOTTOM

$10.99

$

Usually ships in 3-6 days

0

8

Toro 108-7217

PULLEY-MIDDLE

$10.99

$

Usually ships in 3-6 days

0

9

Toro 108-7218

PULLEY-TOP

$10.99

$

Usually ships in 3-6 days

0

10

Toro 108-7221

GRIP

$14.99

$

Usually ships in 3-6 days

0

11

Toro 108-7247

TUBE-CONVOLUTED

$17.99

$

Usually ships in 3-6 days

0

12

Toro 119-7314

CABLE

$58.99

$

Usually ships in 3-6 days

0

13

Toro 114-1958

HANDLE

$75.99

$

Usually ships in 3-6 days

0

14

Toro 117-0469

RUBBER DEFLECTOR ASM

$338.99

$

Usually ships in 3-6 days

0

15

Toro 117-0471

DOOR ASM

$149.99

$

Usually ships in 3-6 days

0

16

Toro 117-0475

CONTROL BRACKET WITH DECAL ASM

$201.99

$

Usually ships in 3-6 days

0

16:3

Toro 108-7250

DECAL-GATE, CHUTE

$23.99

$

Usually ships in 3-6 days

0

17

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 8

0

18

Toro 322-50

SCREW-HH

$6.49

$

In Stock, only 4 left!

0

19

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

20

Toro 3256-28

WASHER-FLAT

$3.49

$

In Stock, Qty 20+

0

21

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

22

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

23

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

24

Toro 32121-15

PIN-ROLL

$1.99

$

In Stock, Qty 7

0

25

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

26

Toro 103-5971

BAG-TRASH

$68.99

$

In Stock, only 1 left!

0

27

Toro 117-0546

ROD-BAG, TRASH

$49.99

$

Usually ships in 3-6 days

0

28

Toro 119-7200-01

ADAPTER

$78.99

$

Usually ships in 3-6 days

0

99

Toro 108-4102

DECAL-GATE, CHUTE (CE)

$28.99

$

Usually ships in 3-6 days

0
