119-506R047 - MTD Walk-Behind Mower (1989) (Chase Pitkin) Parts Parts Diagram

Walk-Behind Mower

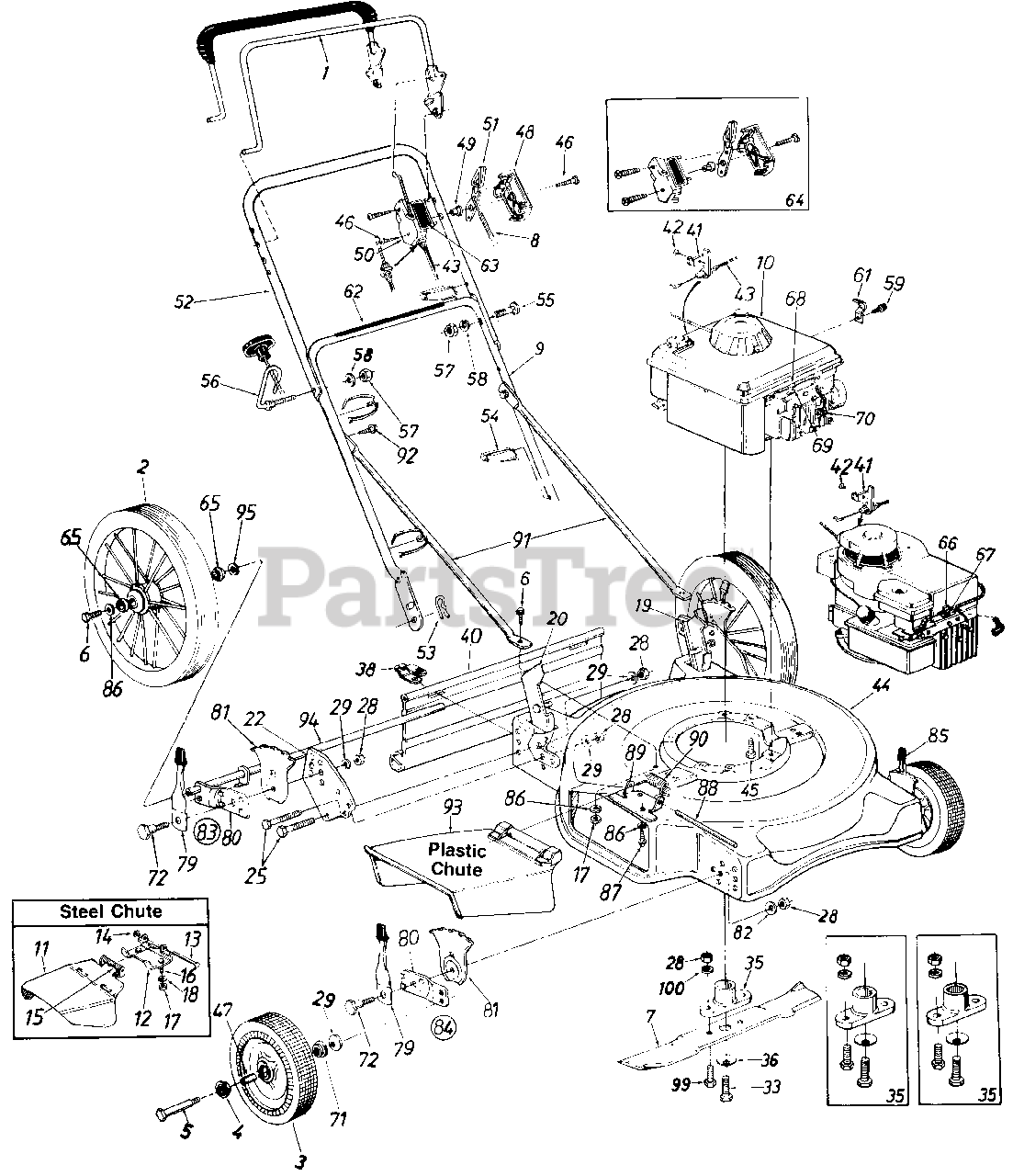

Parts Parts Diagram

  • Title

1

MTD 14321

Control Handle

Note: (Standard)

$

$

Not available

MTD 731-0609

Control Handle

Note: (Deluxe)

$

$

Not available

2

MTD 734-0244

14" Wheel Ass'y.-Comp.

$

$

Not available

MTD 734-1550

16" Wheel Ass'y.-Comp.

$

$

Not available

3

MTD 734-1259

Front Wheel Ass'y.-Comp. 8" x 1.75"

$

$

Not available

4

MTD 741-0484

Bearing 1/2" I.D.
(Superseded to 941-0484)

$7.49

$

In Stock, only 1 left!

0

5

MTD 710-1020

Front Axle Bolt

$

$

Not available

6

MTD 710-0258

Hex Bolt 1/4-20 x .62" Lg.*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

7

MTD 742-0522

22" Blade
(Superseded to 942-0622)

$

$

Not available

8

MTD 746-0632

Throttle Wire-53"
(Superseded to 946-0671A)

Note: (502R 506R)

$14.99

$

Usually ships in 3-6 days

0

MTD 746-0673

Throttle Wire-47"
(Superseded to 946-1115)

Note: (508R)

$28.99

$

In Stock, only 1 left!

0

9

MTD 749-0372B

Lower Handle (Painted)
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

MTD 749-0373B

Lower Handle (Chrome)
(Superseded to 749-0928A)

$33.99

$

In Stock, only 2 left!

0

10

Engine

$

$

Not available

11

MTD 14944

Chute Deflector Ass y. Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

12

MTD 11130

Adapter Plate

$

$

Not available

13

MTD 711-0555

Pivot Pin

$

$

Not available

14

MTD 726-0106

Push Nut 1/4" Rod

$3.99

$

Usually ships in 3-6 days

0

15

MTD 732-0253

Torsion Spring

$

$

Not available

16

MTD 710-0289

Hex Bolt 1/4-20 x .50" Lg.*
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

17

MTD 712-0287

Hex Nut 1/4-20 Thd.*
(Superseded to 912-0287)

$4.99

$

Usually ships in 3-6 days

0

18

MTD 736-0329

L-Wash. 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

19

MTD 17189

Handle Mount Brkt.-L.H.

$

$

Not available

20

MTD 17188

Handle Mount Brkt.-R.H.

$

$

Not available

22

MTD 16645C

Mounting Plate

$

$

Not available

25

MTD 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$4.49

$

In Stock, Qty 16

0

28

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

29

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

33

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

Note: (Used w/Splined Adapter)

$9.99

$

In Stock, only 1 left!

0

MTD 710-1044

Hex Bolt 3/8-24 x 1.5" Lg.

Note: (Used w/Keyed Adapter)

$3.99

$

In Stock, only 2 left!

0

35

MTD 753-0485

Blade Adapter Kit (Splined)

$46.99

$

Usually ships in 3-6 days

0

MTD 753-0484

Blade Adapter Kit (Keyed)

$23.99

$

In Stock, only 1 left!

0

36

MTD 736-0439

Bell-Wash. .46" I.D. x 1.12"

$3.49

$

Usually ships in 3-6 days

0

38

MTD 17098

Hinge Clip
(Superseded to 17098P)

$

$

Not available

40

MTD 731-1026

Rear Flap Ass'y.

$

$

Not available

41

MTD 14924

Cable Bracket

Note: (B&S)

$

$

Not available

42

MTD 728-0171

Pop Rivet

Note: (B&S)

$

$

Not available

43

MTD 746-0476A

Control Cable-39"
(Superseded to 946-0476A)

Note: (502R, 506R)

$

$

Not available

MTD 746-0479A

Control Cable-49"
(Superseded to 946-0479A)

Note: (508R)

$

$

Not available

44

MTD 17046

22" Deck Ass'y.
(Superseded to 97046)

$197.99

$

Usually ships in 3-6 days

0

45

MTD 710-0654A

Hex Wash. Hd. TT-Tap Scr. 3/8-16 x 1.00" Lg.

$4.49

$

In Stock, only 3 left!

0

46

MTD 710-0796

Truss Mach. "B"-Tap Scr. #12 x 1.50" Lg.

$5.49

$

In Stock, only 1 left!

0

47

MTD 750-0434

Spacer

$6.99

$

Usually ships in 3-6 days

0

48

MTD 731-0817

Control Panel Half

$

$

Not available

49

MTD 731-0524

Control Disc Pin

$

$

Not available

50

MTD 731-0816

Clutch Panel Half

$

$

Not available

51

MTD 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

52

MTD 749-0755

Upper Handle (Painted)
(Superseded to 749-0756A)

$

$

Not available

MTD 749-0754

Upper Handle (Chrome)

$

$

Not available

53

MTD 714-0104

Intern. Cot. Pin 5/16" Dia.

$4.49

$

In Stock, Qty 20+

0

54

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

55

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

56

MTD 710-0842B

Rope Guide Bolt

$

$

Not available

57

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

58

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

59

MTD 710-0429

Hex B-Tap Scr. #10 x .38" Lg.
(Superseded to 910-0429)

Note: (B&S)

$3.99

$

Usually ships in 3-6 days

0

61

MTD 12894A

Cable Clamp

Note: (B&S)

$

$

Not available

62

MTD 777-5776

Instruction Label-Handle

$

$

Currently unavailable

63

MTD 777-5774

Control Label-Throttle

$

$

Currently unavailable

64

MTD 753-0430

Control Housing Comp.

$

$

Not available

65

MTD 748-0147

Flange Bearing

Note: (14" Wheel)

$

$

Not available

MTD 741-0484

Bearing 1/2" I.D.
(Superseded to 941-0484)

Note: (16" Wheel)

$7.49

$

In Stock, only 1 left!

0

66

MTD 751-0369

Cable Clamp

Note: (502R)

$

$

Not available

67

MTD 710-0227

Hex AB-Tap Scr. #8 x .38" Lg.

Note: (502R)

$4.49

$

In Stock, Qty 15

0

68

MTD 751-0463

Casing Clamp

Note: (506R)

$

$

Not available

69

MTD 710-0436

Hex B-Tap Scr. #10 x .62"
(Superseded to 710-0651)

Note: (506R)

$3.99

$

Usually ships in 3-6 days

0

70

MTD 735-0639

Spark Plug Boot

$

$

Not available

71

MTD 741-0267

Ball Bearing 3/8" I.D.

$

$

Not available

72

MTD 738-0507B

Shoulder Bolt .50" Dia.

$4.49

$

In Stock, only 4 left!

0

79

MTD 14832

Spring Lever Ass'y. w/Knob
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

80

Order Rear Height Adj. Ass'y. Comp.

Note: (Ref. 83)

$

$

Not available

81

MTD 15261A

Height Adj. Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

82

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

83

MTD 16900

Rear Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

MTD 16901

Rear Height Adj. Ass'y. Comp.-L.H.

Note: (Not Shown)

$

$

Not available

84

MTD 14578

Front Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

85

MTD 14579

Front Height Adj. Ass'y. Comp.-L.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

86

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 20+

0

87

MTD 710-0599

Hex Wash. Hd. Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

89

MTD 17032

Adapter Plate
(Superseded to 17032A)

$10.99

$

In Stock, only 2 left!

0

90

MTD 732-0593

Torsion Spring
(Superseded to 932-0593)

$4.99

$

In Stock, only 3 left!

0

91

MTD 749-0771

Strut 22.95" Lg.

$

$

Not available

92

MTD 710-0726

Hex Wash. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

93

MTD 731-1034

Chute Deflector Ass'y. Comp.
(Superseded to 931-1034B)

$72.99

$

In Stock, Qty 5

0

94

MTD 738-0767

Rear Axle Ass'y.

$

$

Not available

95

MTD 736-0192

Fl-Wash.

$4.49

$

In Stock, Qty 8

0

99

MTD 710-0253

Hex Bolt 3/8-16 x 1" Lg.
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

100

MTD 710-0169

L-Wash. 3/8 I.D.
(Superseded to 711-0577)

$

$

Not available
