119-434R190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1989) Rotary Mower Parts Diagram

Lawn Boss 21" Walk-Behind Mower

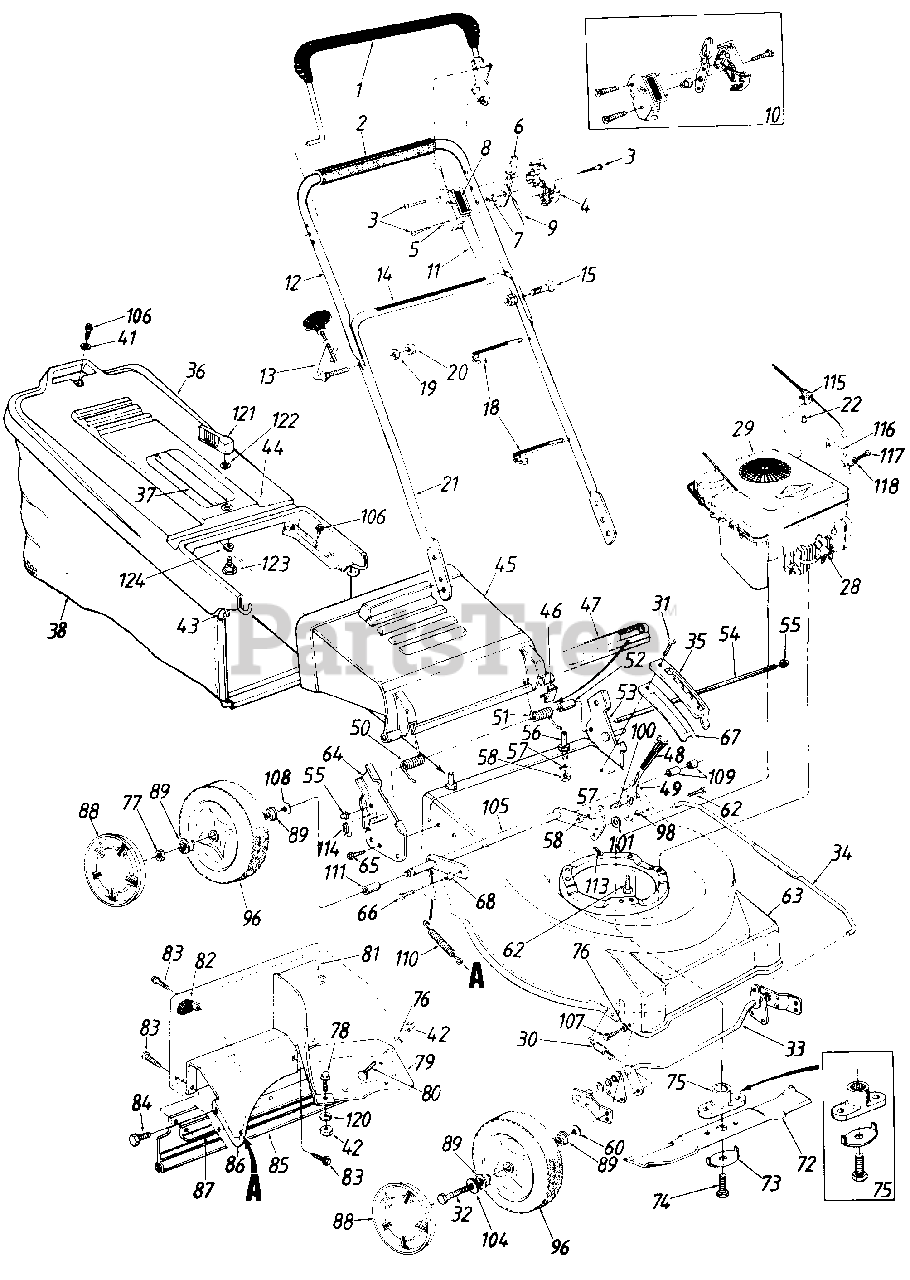

Rotary Mower Parts Diagram

  • Title

1

White Outdoor 731-0609

Control Handle Ass'y.

$

$

Not available

2

White Outdoor 720-0226

Foam Grip
(Superseded to 720-0295)

$33.99

$

Usually ships in 3-6 days

0

3

White Outdoor 710-0796

Truss Mach. B-Tap Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

4

White Outdoor 731-0817

Control Panel Half
(Superseded to 731-0817A)

$

$

Not available

5

White Outdoor 731-0816

Clutch Panel Half

$

$

Not available

6

White Outdoor 731-0972

Throttle Control Lever
(Superseded to 931-0972)

$9.99

$

In Stock, Qty 13

0

7

White Outdoor 731-0524

Control Disc Pin

$

$

Not available

8

777-5774

Control Label-Throttle

$

$

Not available

9

White Outdoor 746-0632

Throttle Wire-53" Lg.
(Superseded to 946-0671A)

$14.99

$

In Stock, only 3 left!

0

10

White Outdoor 753-0430A

Control Housing Comp.

$

$

Not available

11

White Outdoor 746-0480A

Control Cable-46" Lg.
(Superseded to 946-0480A)

$

$

Not available

12

White Outdoor 749-0438A

Upper Handle
(Superseded to 749-0438D-0637)

$

$

Not available

13

White Outdoor 710-0842B

Rope Guide Bolt

$

$

Not available

14

777-5776

Instruction Label-Handle

$

$

Not available

15

White Outdoor 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

$

$

Not available

18

White Outdoor 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

19

White Outdoor 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

20

White Outdoor 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$

$

Not available

21

White Outdoor 749-0504C

Lower Handle
(Superseded to 749-0907B)

$50.99

$

In Stock, only 1 left!

0

22

White Outdoor 728-0171

Pop Rivet .156" Dia. x .379"

$

$

Not available

28

White Outdoor 735-0639

Spark Plug Boot

$

$

Not available

29

Engine

$

$

Not available

30

White Outdoor 732-0589

Extension Spring 2.39" Lg.

$

$

Not available

31

White Outdoor 710-1017

Torx Hd. AB-Tap Scr. 1/4"-.62" Lg.

$8.49

$

In Stock, Qty 9

0

32

White Outdoor 738-0102

Axle Bolt

$9.99

$

In Stock, Qty 10

0

33

White Outdoor 17022

Front Axle Ass'y.
(Superseded to 17022-0637)

Variations

White Outdoor 17022-0637

AXLE ASSEMBLY BLACK - POWDER BLACK (0637)

$136.99

$

Usually ships in 3-6 days

0

$136.99

$

Usually ships in 3-6 days

0

34

White Outdoor 747-0699

Height Adj. Connecting Rod

$

$

Not available

35

White Outdoor 17323

Height Adjustment Plate

$

$

Not available

36

White Outdoor 731-0857A

Hardtop Bag Cover
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

37

White Outdoor 731-0856

Hardtop Handle
(Superseded to 631-0003)

$104.99

$

Usually ships in 3-6 days

0

38

White Outdoor 764-0252

Grass Bag
(Superseded to 964-0252)

$143.99

$

In Stock, only 1 left!

0

41

White Outdoor 736-0463

Fl-Wash. .281" I.D. x .62" O.D.

$4.49

$

In Stock, Qty 20+

0

42

White Outdoor 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

43

White Outdoor 747-0693B

Front Catcher Frame
(Superseded to 764-0411-0637)

$41.99

$

Usually ships in 3-6 days

0

44

White Outdoor 749-0736A

Rear Catcher Frame

$

$

Not available

45

White Outdoor 731-0859

Chute Deflector
(Superseded to 931-0859A)

$120.99

$

Usually ships in 3-6 days

0

46

White Outdoor 731-0970A

Deflector Plug
(Superseded to 731-0970B)

$

$

Not available

47

White Outdoor 731-0858

Seal-Extrusion

$

$

Not available

48

White Outdoor 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

49

White Outdoor 732-0580

Spring Lever

$7.99

$

In Stock, only 1 left!

0

50

White Outdoor 732-0578A

Torsion Spring-R.H.
(Superseded to 732-0578B)

$

$

Not available

51

White Outdoor 732-0577A

Torsion Spring-L.H.
(Superseded to 932-0577B)

$

$

Not available

52

White Outdoor 750-0566

Spacer.255" l.D.
(Superseded to 750-0566A)

$9.99

$

In Stock, only 1 left!

0

53

White Outdoor 12297

Handle Brkt. Ass'y.-L.H.
(Superseded to 12297B-0637)

$

$

Not available

54

White Outdoor 747-0698

Hinge Pin 17.75" Lg.
(Superseded to 747-0698B)

$

$

Not available

55

White Outdoor 726-0106

Cap Speed Nut

$3.99

$

Usually ships in 3-6 days

0

56

White Outdoor 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

57

White Outdoor 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

58

White Outdoor 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

60

White Outdoor 736-0105

Bell-Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

62

White Outdoor 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1 " Lg.

$4.49

$

In Stock, Qty 20+

0

63

16997

21" Deck Ass'y.

$

$

Not available

64

White Outdoor 12296

Handle Brkt. Ass'y.-R.H.
(Superseded to 12296B-0637)

$

$

Not available

65

White Outdoor 710-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.
(Superseded to 910-0892)

$

$

Not available

66

White Outdoor 710-1006

Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg.
(Superseded to 910-1006)

$

$

Not available

67

White Outdoor 721-0216

Height Adjustment Support

$

$

Not available

68

White Outdoor 750-0526

Spacer.385" I.D.

$4.99

$

In Stock, only 1 left!

0

72

White Outdoor 742-0306

21" Blade
(Superseded to 942-0621)

$29.99

$

In Stock, only 1 left!

0

73

White Outdoor 736-0415

Blade Bell-Wash. .44" I.D. x 2.38"
(Superseded to 753-0525)

$

$

Not available

74

White Outdoor 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

75

White Outdoor 753-0463

Blade Adapter Kit
(Superseded to 753-0485)

$46.99

$

Usually ships in 3-6 days

0

76

White Outdoor 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

77

White Outdoor 712-0346

Hex Jam Nut 1/2-20 Thd.

$4.99

$

In Stock, Qty 6

0

78

White Outdoor 710-0252

Hex Bolt 1/4-20 X .85" Lg.
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

79

White Outdoor 17013

Rear Belt Baffle

$

$

Not available

80

White Outdoor 710-0167

Carr. Bolt 1/4-20 X .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

81

White Outdoor 17007

Rear Panel Baffle

Variations

White Outdoor 17007-0637

BAFFLE-RR-PANEL - POWDER BLACK (0637)

$

$

Not available

$

$

82

White Outdoor 731-0931

Corner Plug

$

$

Not available

83

White Outdoor 710-1017

Torx Mach. AB-Tap Scr. 1/4 X .62" Lg.

$8.49

$

In Stock, Qty 9

0

84

White Outdoor 710-0352

Hex B-Tap Scr. 1/4 X .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

85

White Outdoor 731-0669

Rear Flap

$50.99

$

Usually ships in 3-6 days

0

86

White Outdoor 17008

Rear Chute Baffle
(Superseded to 17008-0637)

Variations

White Outdoor 17008-0637

BAFFLE-RR-CHUTE - POWDER BLACK (0637)

$

$

Not available

$

$

87

White Outdoor 14847

Retaining Strip

Variations

White Outdoor 14847-0637

STRIP-RETAINING - POWDER BLACK (0637)

$

$

Not available

$

$

88

White Outdoor 731-0981A

Hub Cap
(Superseded to 731-0981C)

$10.99

$

In Stock, only 2 left!

0

89

White Outdoor 741-0180

Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

96

White Outdoor 734-1513A

Wheel Ass'y. Comp.
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

98

White Outdoor 750-0624

Shld. Spacer .50" Dia.

$

$

Not available

100

White Outdoor 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

101

White Outdoor 736-0258

Fl-Wash. .375" I.D. x 1.0"

$4.49

$

In Stock, only 4 left!

0

104

White Outdoor 736-0160

Fl-Wash. .531" I.D. x .93"

$4.49

$

In Stock, only 2 left!

0

105

White Outdoor 17031

Rear Axle Ass'y.

$

$

Not available

106

White Outdoor 710-0892

Hex L-Wash. AB-Tap Scr. 1/4 x .62" Lg.
(Superseded to 910-0892)

$

$

Not available

107

White Outdoor 710-0352

Hex L-Wash. HD AB-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

108

White Outdoor 736-0108

Fl-Wash. .510" I.D. x .75"

$6.99

$

Usually ships in 3-6 days

0

109

White Outdoor 711-0500

Spacer.526" I.D.
(Superseded to 911-0500)

$

$

Not available

110

White Outdoor 732-0481

Extension Spring 3.8" Lg.
(Superseded to 932-0481)

$

$

Not available

111

White Outdoor 711-0313

Sleeve.526" I.D.
(Superseded to 911-0313)

$

$

Not available

113

White Outdoor 714-0507

Cotter Pin 3132" Dia. x .75"

$4.49

$

In Stock, Qty 12

0

114

White Outdoor 714-0104

Internal Cotter Pin 5/16n Dia.

$4.49

$

In Stock, Qty 20+

0

115

White Outdoor 16703

Cable Mtg. Brkt.

$

$

Not available

116

16704

Mounting Brkt.

$

$

Not available

117

White Outdoor 710-0473

Truss Mach. Scr. #10 x .5ll Lg.

$4.49

$

In Stock, only 2 left!

0

118

White Outdoor 736-0722

L-Wash. #10 I.D.

$6.99

$

Usually ships in 3-6 days

0

120

White Outdoor 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0

121

White Outdoor 720-0224

Grass Catcher Locking Knob
(Superseded to 920-0224)

$

$

Not available

122

White Outdoor 736-0498

Internal L-Wash. 1/4" I.D.

$4.49

$

Usually ships in 3-6 days

0

123

White Outdoor 738-0137

Shld. Bolt .342"

$

$

Not available

124

White Outdoor 736-0286

Wave Washer 3/8" I.D.
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0
