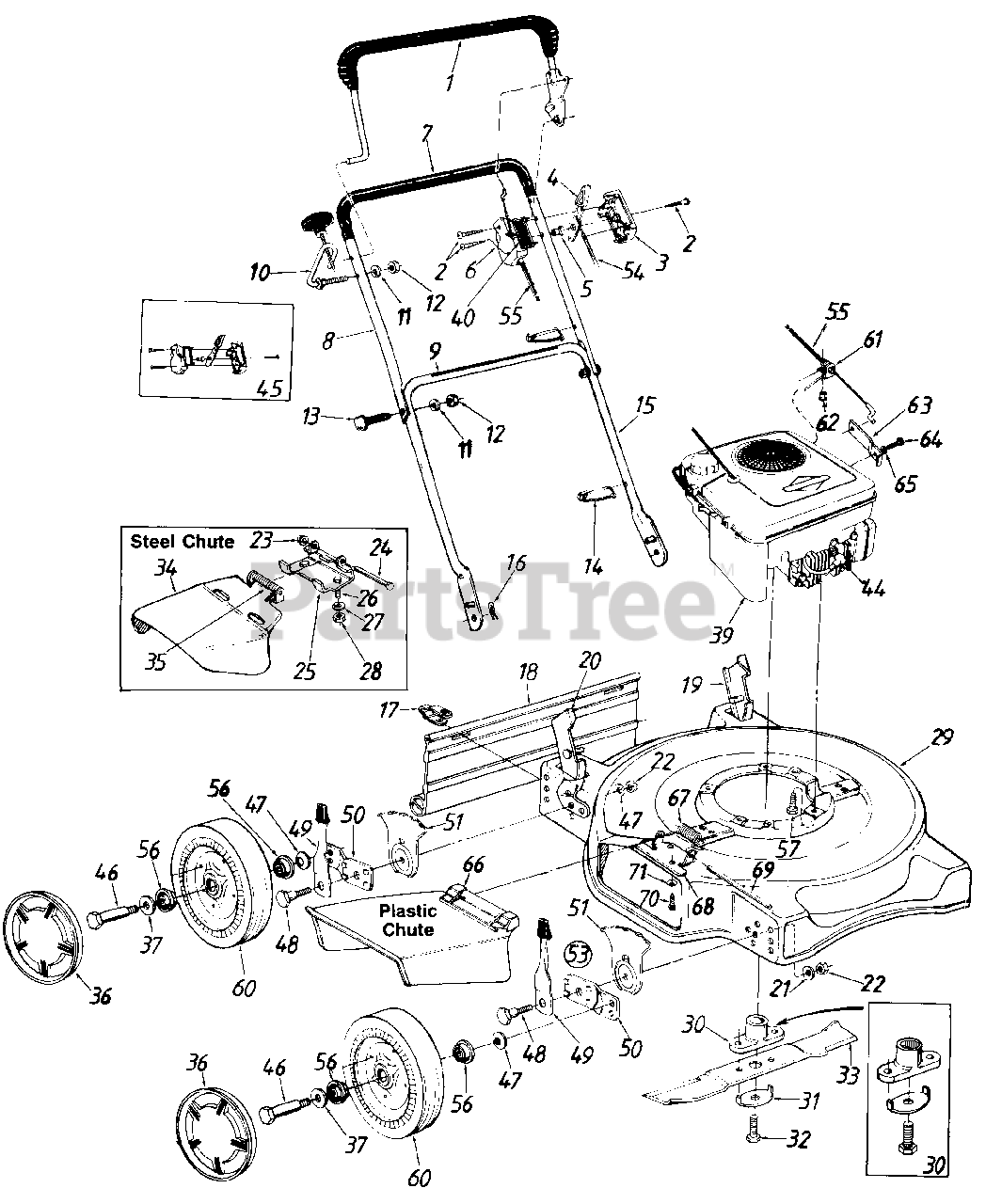

119-074R190 - White Outdoor Lawn Boss 20" Walk-Behind Mower (1989) Rotary Mower Parts Diagram

Lawn Boss 20" Walk-Behind Mower

Rotary Mower Parts Diagram

  • Title

1

MTD 731-0609

Control Handle Ass'y.

Note: NLA

$

$

Not available

2

MTD 710-0796

Truss Mach. Scr. #12 x 1.5" Lg.

$5.49

$

In Stock, only 1 left!

0

3

MTD 731-0817A

Control Panel Half

$

$

Not available

4

MTD 931-0972

Throttle Control Lever

$9.99

$

In Stock, Qty 13

0

5

MTD 731-0524

Control Disc Pin

Note: NLA

$

$

Not available

6

MTD 731-0816

Clutch Panel Half

Note: NLA

$

$

Not available

7

MTD 720-0295

Grip

$33.99

$

Usually ships in 3-6 days

0

8

MTD 749-0756A

Upper Handle

$

$

Not available

9

MTD 777-5776

Instruction Label-Handle

Note: NLA

$

$

Currently unavailable

10

MTD 710-0842B

Rope Guide Bolt

Note: NLA

$

$

Not available

11

MTD 936-0119

L-Wash. 5/16" I.D.*

$4.99

$

In Stock, Qty 20+

0

12

MTD 912-0267

Hex Nut 5/16-18 Thd.*
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

Note: NLA

$

$

Not available

14

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

15

MTD 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

MTD 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

16

MTD 914-0104

Hairpin Cotter
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

17

MTD 17098P

Hinge Clip

$

$

Not available

18

MTD 731-0872B

Rear Flap

$39.99

$

In Stock, Qty 6

0

19

MTD 17189B-0637

Handle Bracket Ass'y.-L.H.

$

$

Not available

20

MTD 17188B-0637

Handle Bracket Ass'y.-R.H.

$

$

Not available

21

MTD 936-0356

Bell-Wash. .39" I.D. x 1.38"

$

$

Not available

22

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, Qty 12

0

23

MTD 926-0106

Push Cap 1/4" Rod
(Superseded to 726-0106)

$

$

Not available

24

MTD 711-0555

Pivot Pint

Note: NLA

$

$

Not available

25

MTD 11130

Adapter Plate

Note: NLA

$

$

Not available

26

MTD 910-0289

Hex Bolt 1/4-20 X .50" Lg.*

$3.99

$

In Stock, only 3 left!

0

27

MTD 936-0329

L-Wash. 1/4" I.D.*

$4.49

$

In Stock, Qty 11

0

28

MTD 912-0287

Hex Nut 1/4-20 Thd.*

$4.99

$

In Stock, only 1 left!

0

29

MTD 17036

20" Deck Ass'y.

Variations

MTD 17036-0480

No Longer Available DECK ASM - BRILLIANT GREEN (0480)

$

$

Not available

MTD 17036-0483

No Longer Available DECK ASSEMBLY-20IN - CHARCOAL GRAY (0483)

$

$

Not available

MTD 17036-0498

No Longer Available DECK ASM - OLD CUB YELLOW (0498)

$

$

Not available

MTD 17036-0629

No Longer Available DECK ASSEMBLY-20IN - SILVER FLAKE (0629)

$

$

Not available

MTD 17036-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 17036-0662

No Longer Available DECK ASM - OYSTER GRAY (0662)

$

$

Not available

$

$

30

MTD 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

31

MTD 753-0525

Blade Bell-Wash. .45" I.D. x 2.38"

$

$

Not available

32

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

33

MTD 942-0620

20" Blade

$

$

Not available

34

MTD 931-1034B

Chute Deflector Ass'y

$72.99

$

In Stock, Qty 5

0

35

MTD 732-0253

Torsion Springt

Note: NLA

$

$

Not available

36

MTD 731-0981C

Hub Cap

$10.99

$

In Stock, only 2 left!

0

37

MTD 936-0160

FL-Wash. .531" I.D.

$4.49

$

In Stock, Qty 9

0

39

Engine

$

$

Not available

40

MTD 777-5774

Control Label-Throttle

Note: NLA

$

$

Currently unavailable

44

MTD 735-0639

Spark Plug Boot

$

$

Not available

45

MTD 753-0430

Kit-Control Housing Comp.

Note: NLA

$

$

Not available

46

MTD 938-0102

Axle Bolt
(Superseded to 738-0102)

$

$

Not available

47

MTD 736-0105

Bell-Wash. .400" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

48

MTD 938-0507B

Shld. Bolt .50" Dia. x .357"
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

49

MTD 94832

Spring Lever Ass'y. w/Knob

$10.99

$

In Stock, only 3 left!

0

50

MTD 15262B

Pivot Bar

Variations

MTD 15262B-0637

Pivot Bar - POWDER BLACK (0637)

$14.99

$

In Stock, only 1 left!

0

$14.99

$

In Stock, only 1 left!

0

51

MTD 787-01290A

Height Adj. Plate

$12.99

$

In Stock, only 2 left!

0

53

MTD 14578

Height Adj. Ass'y. Comp.-R.H.
(Superseded to 753-06761)

$65.99

$

In Stock, Qty 7

0

53

MTD 753-06761

Height Adj. Ass'y. Comp.-L.H.

$65.99

$

In Stock, Qty 7

0

54

MTD 946-1115

Throttle Cable-47"

$28.99

$

In Stock, only 1 left!

0

55

MTD 946-0477A

Control Cable-43"

$

$

Not available

56

MTD 941-0180

Ball Bearing

$18.99

$

Usually ships in 3-6 days

0

57

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, only 4 left!

0

60

MTD 734-2004B

Wheel Ass'y. Comp.
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

61

MTD 16703

Cable Mounting Bracket

Note: NLA

$

$

Not available

62

MTD 728-0171

Pop Rivet

$

$

Not available

63

MTD 16704

Mounting Brkt.

Note: NLA

$

$

Currently unavailable

64

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

65

MTD 936-0722

L-Wash. #10 I.D.
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0

66

MTD 931-1034B

Chute Deflector Ass'y.

$72.99

$

In Stock, Qty 5

0

67

MTD 932-0593

Torsion Spring

$4.99

$

In Stock, only 3 left!

0

68

MTD 17032A

Adapter Plate

$10.99

$

In Stock, only 2 left!

0

69

MTD 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

70

MTD 710-0599

Hex Self-Tap Scr. 1/4-20 X .5" Lg.

$4.49

$

In Stock, Qty 20+

0

71

MTD 736-0270

Bell-Wash. 1/4" I.D.

$3.99

$

In Stock, Qty 20+

0
