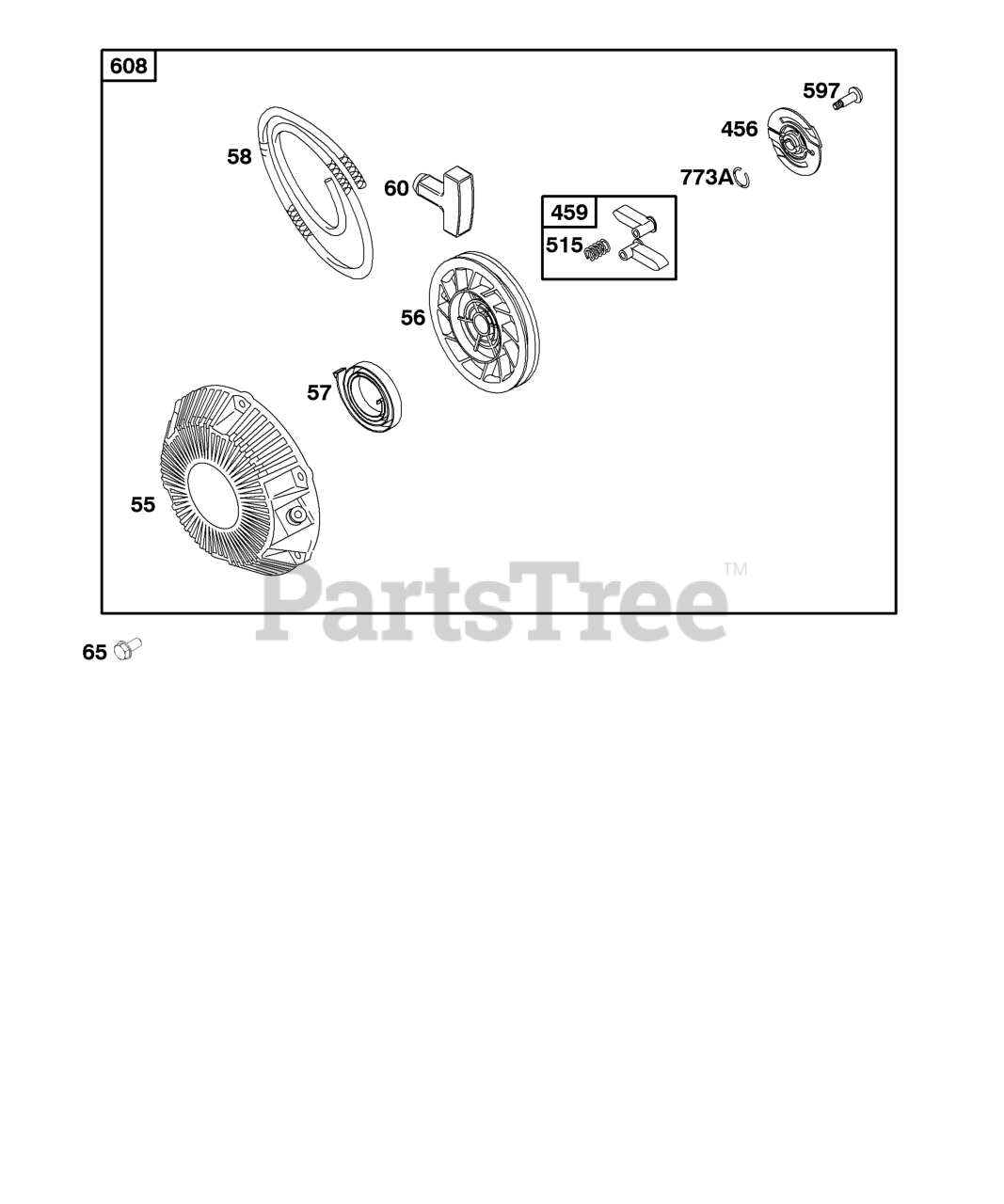

118432-0137-B1 - Briggs & Stratton Horizontal Engine Rewind Starter Parts Diagram

Horizontal Engine

Rewind Starter Parts Diagram

  • Title

55

Briggs & Stratton 711227

Housing-Rewind Starter

$37.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 711231

Pulley-Starter

$20.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 711229

Spring-Rewind Starter

$15.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 711221

Rope-Starter

Note: (Cut To Required Length)

$8.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 490652

HANDLE, Starter Rope

$5.49

$

In Stock, Qty 10

0

65

Briggs & Stratton 711222

Screw

Note: (Rewind Starter)

$4.49

$

Usually ships in 2-12 days

0

456

Briggs & Stratton 711233

Plate-Pawl Friction

$11.99

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 715860

Pawl-Ratchet

$10.99

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 691528

Spring-Pawl

$6.99

$

In Stock, only 1 left!

0

597

Briggs & Stratton 711235

Screw

Note: (Pawl Friction Plate)

$3.99

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 715859

Starter-Rewind

$116.99

$

Usually ships in 2-12 days

0

773A

Briggs & Stratton 711225

Retainer

$5.49

$

Usually ships in 2-12 days

0
