1180 E (1694244) - Simplicity 32" Snow Thrower, 11hp Auger Housing and Chute Group - 32" Parts Diagram

32" Snow Thrower, 11hp

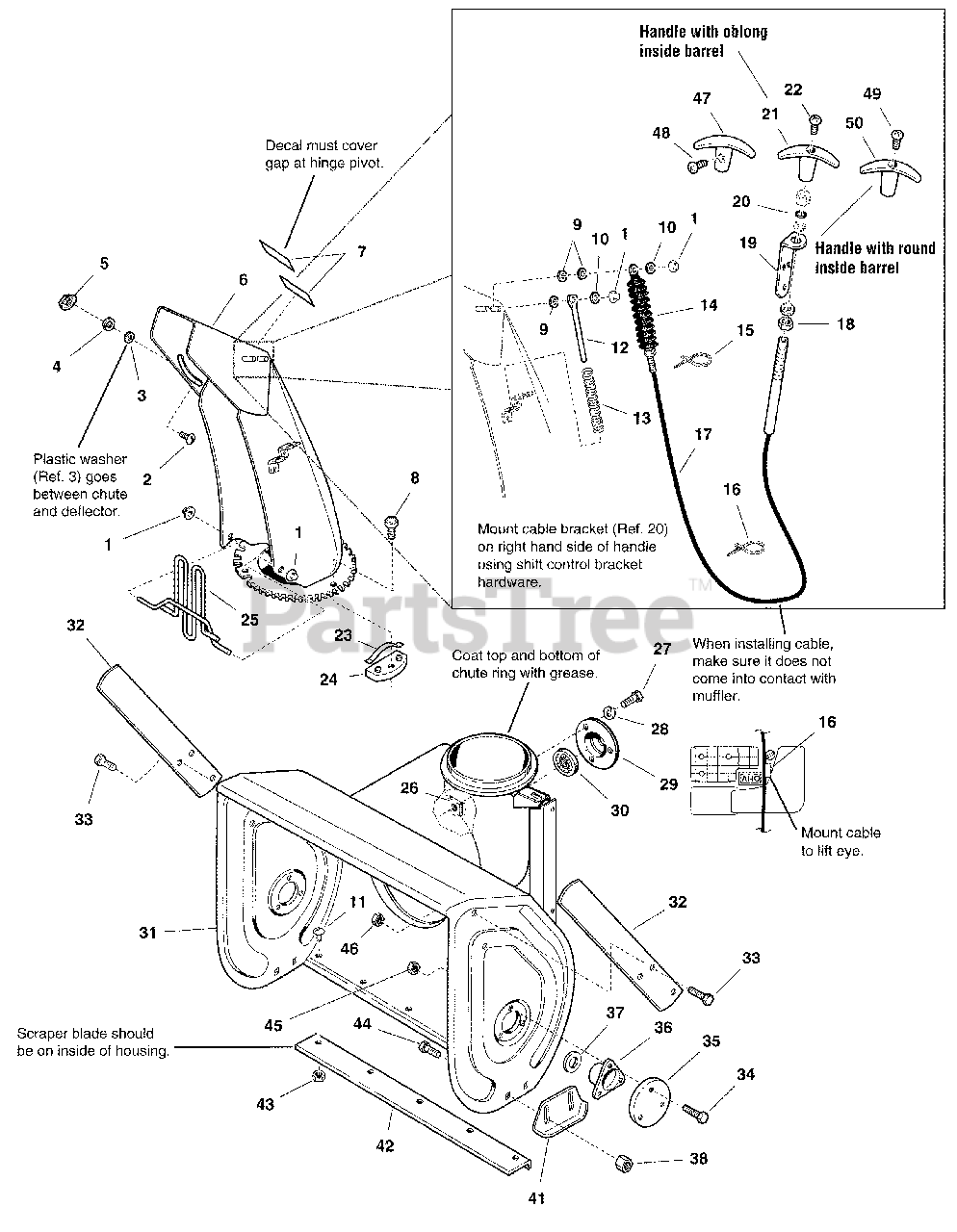

Auger Housing and Chute Group - 32" Parts Diagram

  • Title

1

Simplicity 1960126SM

PUSH NUT, 1/4
(Superseded to 704066)

$4.99

$

In Stock, Qty 14

0

2

Simplicity 1931333SM

CARRIAGE BOLT, 5/16-18 x 3/4
(Superseded to 703185)

$3.49

$

In Stock, Qty 12

0

3

Simplicity 2860210SM

WASHER, Nylon

$4.49

$

In Stock, only 2 left!

0

4

Simplicity 1919326SM

WASHER, Flat, 11/32

$4.49

$

In Stock, Qty 6

0

5

Simplicity 1919438SM

NUT, Hex ESNA 5/16 -18
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

6

Simplicity 1720671CSM

CHUTE & DEFLECTOR ASSEMBLY

$141.99

$

Usually ships in 2-12 days

0

7

Simplicity 1706085SM

SEAL, Hinge Decal

$13.99

$

Usually ships in 2-12 days

0

8

Simplicity 1960001SM

CAPSCREW, Hex, Washer Head, Plastite 10-14 x 5/8
(Superseded to 703062)

$4.49

$

In Stock, only 3 left!

0

9

Simplicity 1702219SM

SPACER,

$8.49

$

Usually ships in 2-12 days

0

10

Simplicity 1921319SM

WASHER, Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

11

Simplicity 1931332SM

CARRIAGE BOLT, 5/16-18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

12

Simplicity 1611945SM

ROD, Spring

$13.99

$

In Stock, only 1 left!

0

13

Simplicity 1611939SM

SPRING

$10.99

$

Usually ships in 2-12 days

0

14

Simplicity 1700048SM

BOOT, Water

$

$

Not available

15

Simplicity 2832747SM

TIE, Self-Locking, Cable Assembly

$3.99

$

Usually ships in 2-12 days

0

16

Simplicity 1701011SM

TIE, Self-Locking

$5.49

$

In Stock, only 2 left!

0

17

Simplicity 1720446SM

CABLE, Assembly, 67" Long (Includes Reference Numbers 14, 21, 20 & 22)

$179.99

$

In Stock, only 4 left!

0

18

Simplicity 1922014SM

NUT, 5/16-18
(Superseded to 703904)

$4.99

$

In Stock, Qty 18

0

19

Simplicity 1726411ASM

BRACKET, Cable

$

$

Not available

20

Simplicity 1719139

SEAL, Rod, Chute Deflector Cable

$

$

Not available

21

Simplicity 1719138SM

HANDLE, Cable

Note: (Handle with oblong inside barrel)

$20.99

$

Usually ships in 2-12 days

0

22

Simplicity 1960600SM

SCREW, Pan Head, #8-32 x 11/16

$4.99

$

Usually ships in 2-12 days

0

23

Simplicity 1667865SM

SPRING

$10.99

$

In Stock, Qty 5

0

24

Simplicity 1666613SM

HOLD DOWN, Chute, Black Nylon

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 1612455SM

GUARD & SUPPORT ASSEMBLY, Chute

$45.99

$

Usually ships in 2-12 days

0

26

Simplicity 1930659SM

NUT, Retainer, 5/16-18

$5.99

$

Usually ships in 2-12 days

0

27

Simplicity 1925205SM

CAPSCREW, Hex Head, 5/16-18 x 17/64
(Superseded to 703822)

$4.49

$

In Stock, only 1 left!

0

29

Simplicity 1665982ASM

RETAINER, Bearing
(Superseded to 1665982SM)

$6.99

$

In Stock, Qty 17

0

30

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

31

Simplicity 1612186C

HOUSING ASSEMBLY, Auger, 32"

$

$

Not available

32

Simplicity 1715787CSM

CUTTER, Drift

$37.99

$

Usually ships in 2-12 days

0

33

Simplicity 1921332SM

CAPSCREW, Hex Head, 5/16-18 x 3/4
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

34

Simplicity 1923325SM

CAPSCREW, Hex Head, 5/16-18 x 7/8
(Superseded to 703408)

$4.99

$

In Stock, Qty 13

0

35

Simplicity 1668639CSM

BEARING, Cap
(Superseded to 1668639BMYP)

$51.99

$

Usually ships in 2-12 days

0

36

Simplicity 1665980SM

BEARING, Auger, Flange

$

$

Not available

37

Simplicity 1663189SM

SPACER

$6.49

$

In Stock, Qty 6

0

38

Simplicity 1960687SM

NUT, Hex ESNA Flange, 3/8-16
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

41

Simplicity 2177434C

SKID

$

$

Not available

42

Simplicity 1709948ASM

BLADE, Scraper, 32"
(Superseded to 1709948BMYP)

$58.99

$

In Stock, only 3 left!

0

43

Simplicity 1935048SM

NUT, Hex Flange, 2-Way Lock, 5/16-18
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

44

Simplicity 1960711SM

CARRIAGE BOLT, Round Head Square Neck, 3/8-16 x 3/4
(Superseded to 703448)

$4.49

$

In Stock, Qty 20+

0

45

Simplicity 1923362SM

NUT, Hex, Center Lock, 5/16-18
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

46

Simplicity 1960684SM

NUT, Hex, KEPS Conical Washer 5/16-18
(Superseded to 703222)

$5.99

$

In Stock, only 2 left!

0

47

Simplicity 1715799SM

HANDLE "T"

$

$

Not available

48

Simplicity 1930547SM

SCREW, Set, Hex #10-24 x 3/8

$4.49

$

Usually ships in 2-12 days

0

49

Simplicity 1706201SM

HANDLE "T"

Note: (Handle with round inside barrel)

$

$

Not available

50

Simplicity 1960399SM

SCREW, Round Head

$3.49

$

Usually ships in 2-12 days

0
