1180 (13AT608H101) - Cub Cadet Lawn Tractor (SN: 1I010H - 999999) (2001) Tractor Body / Fuel Tank / Hood / Electrical Parts Diagram

Lawn Tractor

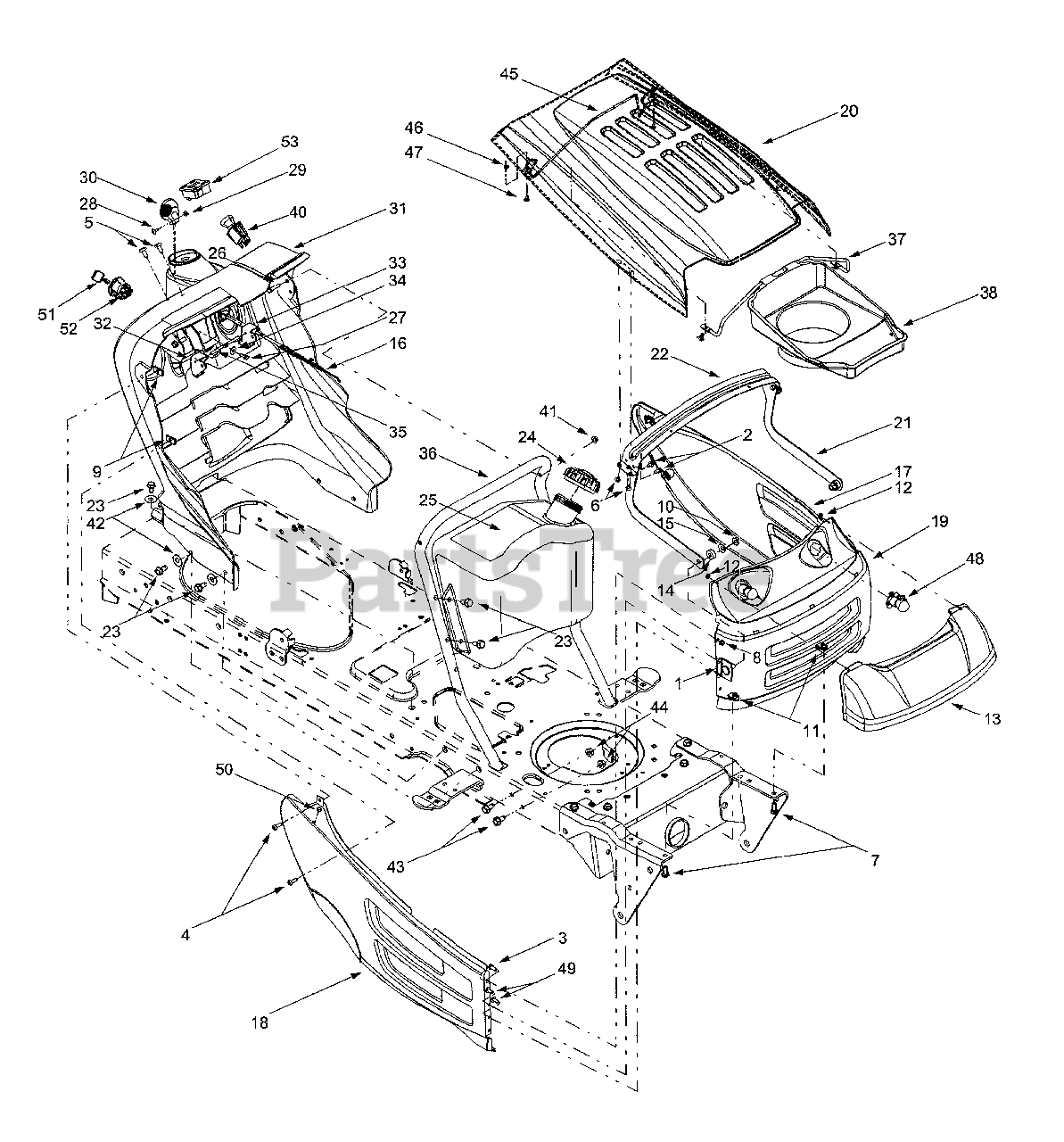

Tractor Body / Fuel Tank / Hood / Electrical Parts Diagram

  • Title

1

Cub Cadet 683-0195

Bracket Assembly (8-style)
(Superseded to 683-0195-0637)

Variations

Cub Cadet 683-0195-0637

BRACKET ASM - POWDER BLACK (0637)

$76.99

$

Usually ships in 3-6 days

0

$76.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0924

Phillips Pan Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-1017

Truss Phillips Screw, 1/4-20 x .625

$8.49

$

In Stock, Qty 9

0

6

Cub Cadet 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0376

Hex Cap Screw, 5/16-18 x 1.0

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 19

0

9

Cub Cadet 712-0292

U-type Speed Nut, 1/4-20

$10.99

$

In Stock, only 2 left!

0

10

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 726-0211

U-nut, 5/16-18

$4.49

$

In Stock, only 1 left!

0

12

Cub Cadet 726-0293

Retainer Nut, 3/8

$

$

Not available

13

Cub Cadet 731-1854A

Headlight Lens (8-style)
(Superseded to 931-1854A)

$82.99

$

In Stock, Qty 5

0

14

Cub Cadet 735-0126

Rubber Washer, .87 x .33
(Superseded to 735-0126A)

$

$

Not available

15

Cub Cadet 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 746-1085

Choke Knob/Cable
(Superseded to 946-1085A)

$30.99

$

In Stock, only 1 left!

0

17

Cub Cadet 783-0475A

LH Side Panel (8-style)
(Superseded to 783-0475C)

Variations

Cub Cadet 783-0475A-0499

USE 783-0475C-0499 PANEL-SIDE - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 783-0475A-0629

SIDE PANEL (LH) 8STY - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 783-0475A-0638

USE 783-0475C-0638 PANEL-SIDE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0475A-0662

USE 783-0475C-0662 PANEL-SIDE - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 783-0475A-0665

USE 783-0475C-0665 PANEL-SIDE - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0475A-0691

USE 783-0475C-0691 PANEL-SIDE - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0475A-0709

USE 783-0475C-0709 PANEL-SIDE - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 783-0475A-0724

USE 783-0475C-0724 PANEL-SIDE - CHAMPAGNE PLUS (0724)

$

$

Not available

$

$

18

Cub Cadet 783-0476B

RH Side Panel (8-style)

Variations

Cub Cadet 783-0476B-0629

PANEL-SIDE RH 8STY - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 783-0476B-0499

SIDE PANEL (RH) 8STY - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 783-0476B-0638

SIDE PANEL (RH) 8STY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0476B-0662

SIDE PANEL (RH) 8STY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 783-0476B-0665

SIDE PANEL (RH) 8STY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0476B-0691

SIDE PANEL (RH) 8STY - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0476B-0709

SIDE PANEL (RH) 8STY - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 783-0476B-0724

SIDE PANEL (RH) 8STY - CHAMPAGNE PLUS (0724)

$

$

Not available

$

$

19

Cub Cadet 783-0477A

Grill (8-style)

Variations

Cub Cadet 783-0477A-0483

GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

Cub Cadet 783-0477A-0499

GRILLE - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 783-0477A-0638

GRILLE - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0477A-0640

GRILLE - CO-OP GREEN (0640)

$

$

Not available

Cub Cadet 783-0477A-0662

GRILLE - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 783-0477A-0665

GRILLE - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0477A-0667

GRILLE - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 783-0477A-0691

GRILLE - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0477A-0709

GRILLE - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 783-0477A-0724

GRILLE - CHAMPAGNE PLUS (0724)

$

$

Not available

Cub Cadet 783-0477A-0732

GRILLE - SPARKLING GRAY (0732)

$

$

Not available

$

$

20

Cub Cadet 783-0478A

Hood (8-style)
(Superseded to 983-0478B)

Variations

Cub Cadet 783-0478A-0499

USE 983-0478B-0499 HOOD-8 STY - CUB BEIGE (0499)

$

$

Not available

Cub Cadet 783-0478A-0629

HOOD-8 STYLE - SILVER FLAKE (0629)

$

$

Not available

Cub Cadet 783-0478A-0638

USE 983-0478B-0638 HOOD-8 STY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 783-0478A-0662

USE 983-0478B-0662 HOOD-8 STY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 783-0478A-0665

USE 983-0478B-0665 HOOD-8 STY - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0478A-0691

USE 983-0478B-0691 HOOD-8 STY - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-0478A-0709

USE 983-0478B-0709 HOOD-8 STY - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 783-0478A-0724

HOOD-8 STYLE - CHAMPAGNE PLUS (0724)

$

$

Not available

Cub Cadet 783-0478A-0732

USE 983-0478B-0732 HOOD-8 STY - SPARKLING GRAY (0732)

$

$

Not available

$295.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 783-1309

Hood Hinge Bracket

Variations

Cub Cadet 783-1309-0637

BRACKET - POWDER BLACK (0637)

$

$

Not available

$

$

22

Cub Cadet 783-0553A

Hood Support Bracket
(Superseded to 783-0553A-0637)

Variations

Cub Cadet 783-0553A-0637

BRACKET-HOOD SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 710-0604A

Self-tapping Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 751-0603

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

In Stock, only 3 left!

0

25

Cub Cadet 751-0658B

Fuel Tank

$

$

Not available

26

Cub Cadet 710-0809

Self-tapping Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

27

Cub Cadet 710-0895

Self-tapping Screw, 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

28

Cub Cadet 710-3217

Truss Phillips Screw, #8-32 x .375

$6.99

$

In Stock, Qty 7

0

29

Cub Cadet 712-0142

Hex Nut, #8-32

$4.49

$

In Stock, Qty 10

0

30

Cub Cadet 731-1857

Throttle Control Knob

$14.99

$

In Stock, only 4 left!

0

31

Cub Cadet 731-2225

Dash Panel, 8-style
(Superseded to 631-04038)

$

$

Not available

32

Cub Cadet 731-2226

Cruise Control Button

$16.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 731-2227

Parking Brake Button

$

$

Not available

34

Cub Cadet 736-0142

Flat Washer, 9/32 x 1/2 x 1/16

$4.99

$

In Stock, Qty 20+

0

35

Cub Cadet 747-1196

Brake/Cruise Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 749-1087A

Dash Support Tube
(Superseded to 749-1087A-0637)

Variations

Cub Cadet 749-1087A-0637

TUBE-DASH SUPPORT - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 747-1184

Heat Shield Support Rod

$

$

Not available

38

Cub Cadet 731-2247A

Heat Shield

Note: (Model 1180)

$

$

Not available

~NA

Heat Shield

Note: (Model 1170

$

$

Not available

?39

Cub Cadet 726-3046

Ratchet Clip

$3.99

$

In Stock, Qty 15

0

40

Cub Cadet 725-1752

Electric PTO Switch
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

41

Cub Cadet 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 736-3078

Flat Washer, .349 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 710-1238

Screw, 5/16-18 x .875 (Grade 5)
(Superseded to 710-1238A)

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 712-3004A

Hex Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

45

Cub Cadet 747-1215A

Hood Latch (8-style)

$

$

Not available

46

Cub Cadet 712-0272

Hex Sems Nut, #10-32

$3.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 710-0473

Machine Screw, #10-24

$4.49

$

In Stock, only 2 left!

0

48

Cub Cadet 625-0051

Headlight Assembly
(Superseded to 925-0051)

$16.99

$

In Stock, only 1 left!

0

49

Cub Cadet 710-0896

Hex Index Washer Screw, 1/4-14 x .0625

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 735-0199A

Rubber Bumper

$7.99

$

In Stock, only 2 left!

0

51

Cub Cadet 725-1745

Ignition Key w/ plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

Cub Cadet 725-1744

Ignition Key w/o plastic cover
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

52

Cub Cadet 725-1741

Ignition Switch
(Superseded to 925-1741)

$45.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 725-1976

Systems Indicator Monitor
(Superseded to 925-1976)

$

$

Not available

Cub Cadet 629-0469A

Headlight Wire Harness
(Superseded to 929-0469B)

Note: (Not Shown)

$55.99

$

Usually ships in 3-6 days

0

Cub Cadet 629-1071

Tractor Wire Harness
(Superseded to 929-1071)

Note: (Not Shown)

$314.99

$

Usually ships in 3-6 days

0
