1180 (13AT608H101) - Cub Cadet Lawn Tractor (SN: 1I010H - 999999) (2001) 46" Cutting Deck Assembly Parts Diagram

Lawn Tractor

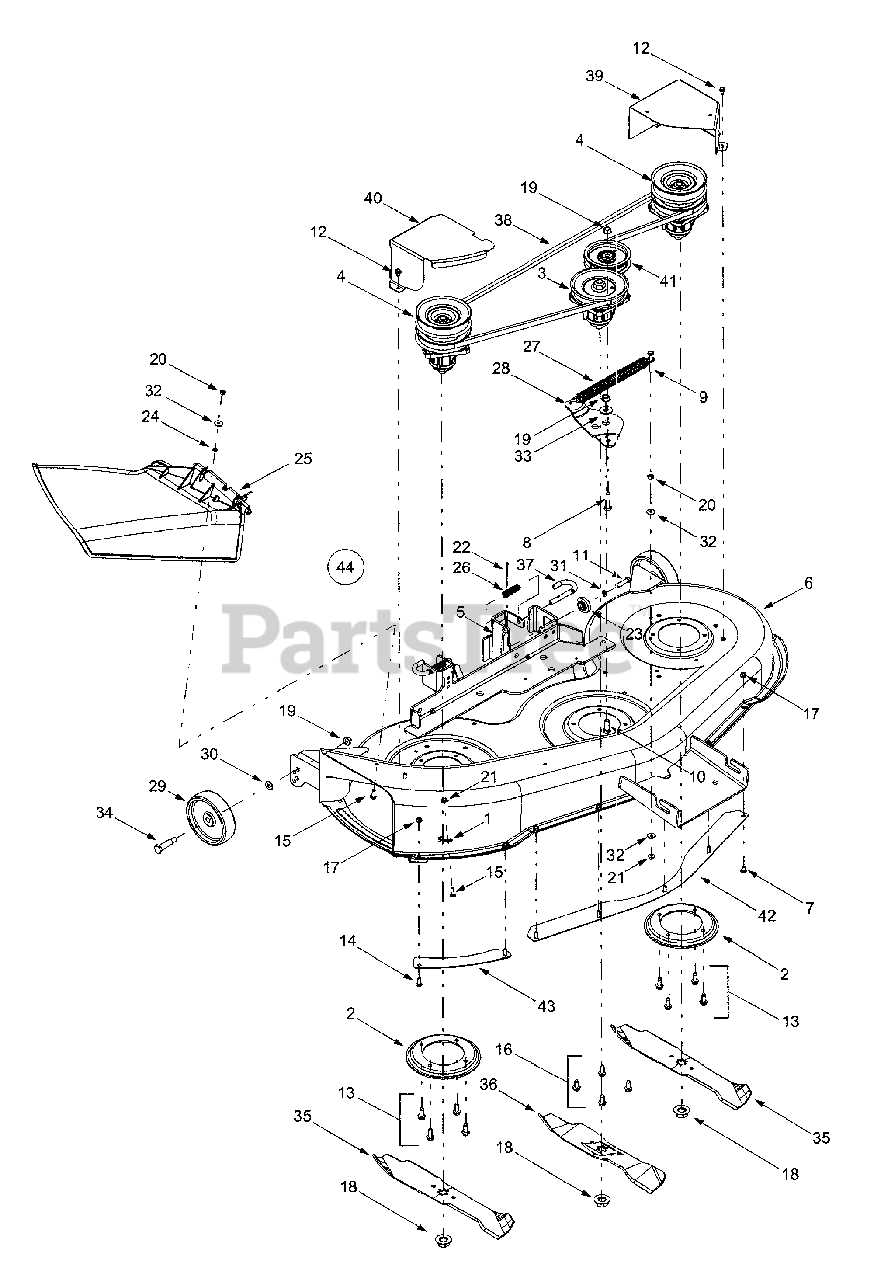

46" Cutting Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 16606

Retainer Hook
(Superseded to 96606)

$7.49

$

In Stock, Qty 7

0

2

Cub Cadet 17982

Spindle Reinforcement Plate
(Superseded to 17982-0637)

Variations

Cub Cadet 17982-0637

Spindle Plate, Black - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 618-0430A

Spindle Assembly, 5.0 Dia. w/ Fitting
(Superseded to 918-0240C)

$136.99

$

In Stock, Qty 5

0

Cub Cadet 756-1187

Pulley Only

$38.99

$

In Stock, only 2 left!

0

4

Cub Cadet 618-0431

Double Pulley Spindle Assembly w/ Fitting
(Superseded to 918-0241B)

$183.99

$

In Stock, only 1 left!

0

Cub Cadet 756-0603

Pulley Only

$119.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 683-0254

Deck Adjustment Bracket w/ Weld Nut
(Superseded to 683-0254B)

Variations

Cub Cadet 683-0254-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$49.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$36.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0650

USE 683-0254B-0650 BRACKET AS - RED METALLIC (0650)

$49.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254-0665

USE 683-0254B-0665 BRACKET AS - YARDMAN GREEN (0665)

$49.99

$

Usually ships in 3-6 days

0

$46.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 683-0265C

46-inch Deck Shell

Variations

Cub Cadet 683-0265C-0606

46" DECK ASSEMBLY - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 683-0265C-0637

46" DECK ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 683-0265C-0667

46" DECK ASSEMBLY - MIDNIGHT BLUE (0667)

$

$

Not available

Cub Cadet 683-0265C-0709

46" DECK ASSEMBLY - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 683-0265C-0498

46" DECK ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 683-0265C-0638

46" DECK ASSEMBLY - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 683-0265C-0650

DECK ASM-46" LT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 683-0265C-0665

46" DECK ASSEMBLY (YARD-MAN GREEN) - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 683-0265C-0691

46" DECK ASSEMBLY (BLACK JACK) - BLACK JACK (0691)

$

$

Not available

Cub Cadet 683-0265C-0708

46" DECK ASSEMBLY (MELLON YELLOW) - MELLON YELLOW (0708)

$

$

Not available

Cub Cadet 683-0265C-0716

46" DECK ASSEMBLY (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

$

$

7

Cub Cadet 710-0167

Carriage Screw, 1/4-20 x .50
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0344

Hex Cap Screw, 3/8-16 x 1.5

$5.99

$

In Stock, Qty 11

0

9

Cub Cadet 710-0501

Hex Cap Screw, 1/4-20 x 2.0

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0528

Hex Cap Screw, 5/8-18 x 1.25

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0599

Self-tapping Screw, 1/4-20 x.5

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0650

Self-tapping Screw, 15/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0703

Hex Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

15

Cub Cadet 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-0271

Hex Sems Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0417A

Hex Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-3006

Hex Nut, 1/4-20

$4.99

$

In Stock, Qty 19

0

21

Cub Cadet 712-3027

Hex Flange Lock Nut, 1/4-20
(Superseded to 912-3027)

$4.49

$

In Stock, Qty 17

0

22

Cub Cadet 714-0470

Cotter Pin, 1/8 x 1.25

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 717-1553A

Deck Adjustment Gear
(Superseded to 917-04074)

$13.99

$

In Stock, Qty 16

0

24

Cub Cadet 726-0233

Push Nut. .25 x .5

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 731-1032B

Side Discharge Chute Assembly
(Superseded to 631-05229)

$81.99

$

In Stock, Qty 6

0

26

Cub Cadet 732-0306

Compression Spring, .406 x .531 x 1.75
(Superseded to 932-0306A)

$8.49

$

In Stock, only 4 left!

0

27

Cub Cadet 732-0594A

Extension Spring, .91 x 7.3
(Superseded to 932-0594A)

$14.99

$

In Stock, Qty 20+

0

28

Cub Cadet 783-0139A

Idler Bracket
(Superseded to 783-0139B-0637)

Variations

Cub Cadet 783-0139A-0637

Idler Bracket, Black - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 734-0973

Deck Wheel, 5 x 1.38

$12.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0105

Bell Washer, .401 x .87 x .063

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 736-0119

Lock Washer, 5/16
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 738-0347

Shoulder Spacer, .625 x 1.16
(Superseded to 938-0347)

$10.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 738-0373

Shoulder Screw
(Superseded to 938-0373)

$9.49

$

In Stock, Qty 20+

0

35

Cub Cadet 742-0611

Three-in-one Blade, Star Center, 16.28"
(Superseded to 942-0611A)

$29.99

$

In Stock, Qty 20+

0

36

Cub Cadet 742-0612

Three-in-one Blade, Star Center, 14.88"
(Superseded to 942-0612A)

$29.99

$

In Stock, Qty 15

0

37

Cub Cadet 747-1116

Deck Release Pin

$12.99

$

In Stock, Qty 6

0

38

Cub Cadet 754-0349

Deck Belt, Poly
(Superseded to 954-0349)

$40.99

$

In Stock, Qty 20+

0

39

Cub Cadet 783-0747

LH Belt Cover
(Superseded to 783-0747B)

Variations

Cub Cadet 783-0747-0498

Belt Cover, LH 46" Yellow - OLD CUB YELLOW (0498)

$58.99

$

In Stock, only 1 left!

0

Cub Cadet 783-0747-0637

Belt Cover, LH 46" Black - POWDER BLACK (0637)

$58.99

$

In Stock, only 1 left!

0

Cub Cadet 783-0747-0691

Belt Cover, LH 46" Black - BLACK JACK (0691)

$58.99

$

In Stock, only 1 left!

0

Cub Cadet 783-0747-0716

Belt Cover, LH 46" Yellow - CUB YELLOW-99 (0716)

$58.99

$

In Stock, only 1 left!

0

Cub Cadet 783-0747-0650

Belt Cover, LH 46" Red - RED METALLIC (0650)

$58.99

$

In Stock, only 1 left!

0

Cub Cadet 783-0747-0665

Belt Cover, LH 46" - YARDMAN GREEN (0665)

$58.99

$

In Stock, only 1 left!

0

$54.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 783-0805A

RH Belt Cover
(Superseded to 783-0805C)

Variations

Cub Cadet 783-0805A-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 783-0805A-0650

USE 783-0805C-0650 COVER-BELT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 783-0805A-0716

Belt Cover, RH Yellow - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-0805A-0665

USE 783-0805C-0665 COVER-BELT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 783-0805A-0691

USE 783-0805C-0691 COVER-BELT - BLACK JACK (0691)

$

$

Not available

$

$

41

Cub Cadet 756-0627B

Idler Pulley, 3.5
(Superseded to 756-0627D)

$30.99

$

In Stock, Qty 20+

0

42

Cub Cadet 783-0141

Center Deck Skirt

Variations

Cub Cadet 783-0141-0637

Center Deck Skirt, Powder Black - POWDER BLACK (0637)

$65.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0141-4008

Center Skirt for Deck, Red - WINE RED (4008)

$60.99

$

In Stock, only 1 left!

0

$60.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 783-0142

RH Deck Skirt
(Superseded to 783-0142-0637)

Variations

Cub Cadet 783-0142-0637

Deck Skirt, RH Powder Black - POWDER BLACK (0637)

$48.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-0142-4008

Deck Skirt, RH Powder Black - WINE RED (4008)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 753-0874

46-inch Deck Assembly Complete
(Superseded to 953-0874)

Variations

Cub Cadet 753-0874-0637

DECK ASSEMBLY KIT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 753-0874-0650

DECK ASSEMBLY KIT - RED METALLIC (0650)

$

$

Not available

Cub Cadet 753-0874-0665

DECK ASSEMBLY KIT - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 753-0874-0691

DECK ASSEMBLY KIT - BLACK JACK (0691)

$

$

Not available

Cub Cadet 753-0874-0716

DECK ASSEMBLY KIT - CUB YELLOW-99 (0716)

$

$

Not available

$

$
