118 R (121-118R100) - Cub Cadet Walk-Behind Mower Engine (1991) B&S 5 HP 124702-3167-01 Part 2 Parts Diagram

Walk-Behind Mower Engine

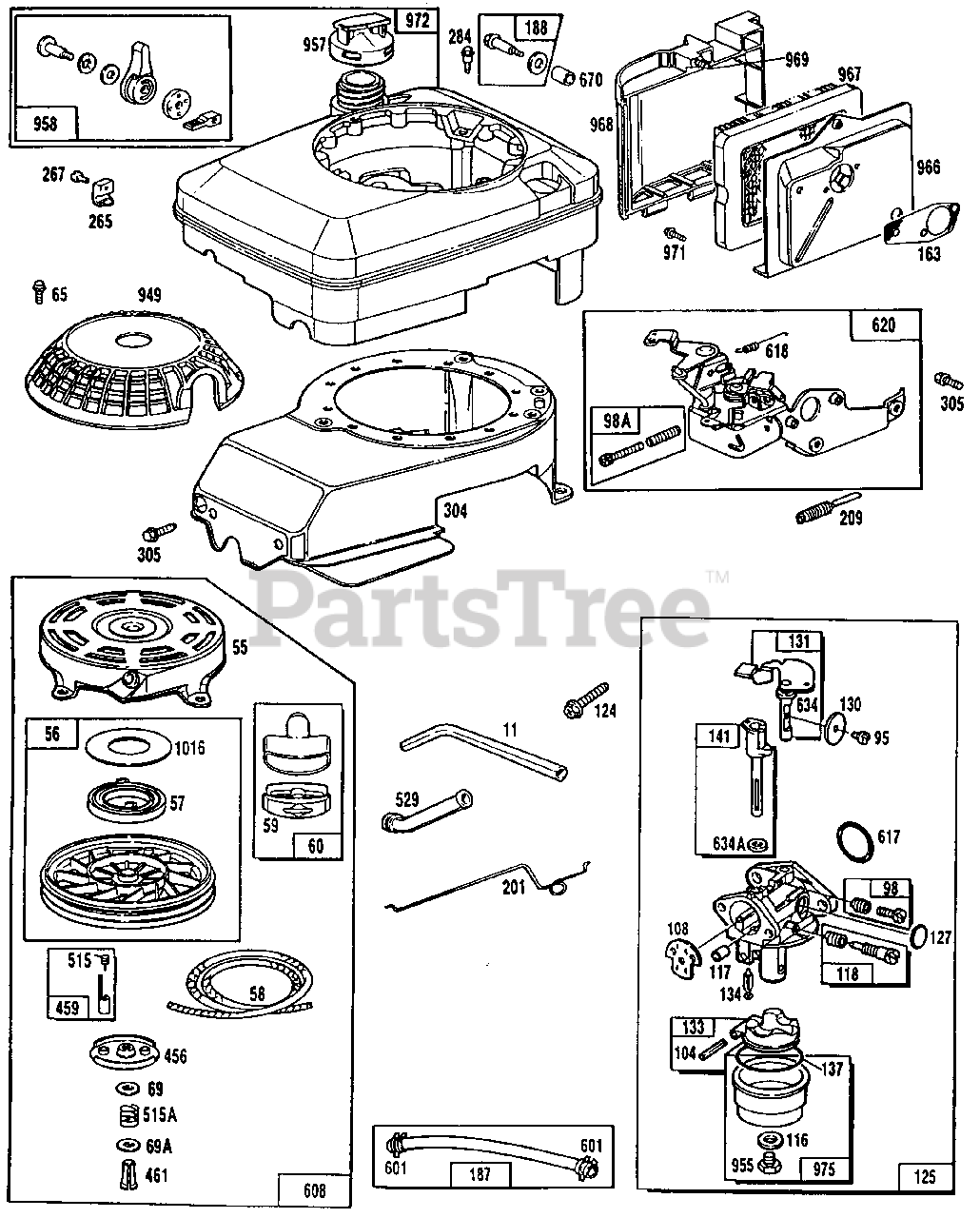

B&S 5 HP 124702-3167-01 Part 2 Parts Diagram

  • Title

11

Cub Cadet BS-231685

Tube-Breather
(Superseded to BS-691781)

$10.99

$

Usually ships in 2-12 days

0

55

Cub Cadet BS-492831

Housing-Rewind Starter

$74.99

$

In Stock, only 1 left!

0

56

Cub Cadet BS-492832

Pulley-Rewind Starter
(Superseded to BS-493824)

$

$

Not available

57

Cub Cadet BS-262594

Spring-Rewind Starter
(Superseded to BS-493824)

$

$

Not available

58

Cub Cadet BS-280399

Rope-Rewind Starter
(Superseded to BS-280399S)

Note: (Cut to 88-5/8")

$5.99

$

In Stock, Qty 8

0

59

Cub Cadet BS-396892

Insert-Handle

$5.49

$

In Stock, only 1 left!

0

60

Cub Cadet BS-393152

Handle-Rewind Starter

$4.99

$

Usually ships in 2-12 days

0

65

Cub Cadet BS-94058

Screw-Guard Mounting

$3.99

$

Usually ships in 2-12 days

0

69

Cub Cadet BS-280973

Washer-Rewind Starter

$5.49

$

Usually ships in 2-12 days

0

69A

Cub Cadet BS-224322

Washer-Rewind Starter

$5.49

$

Usually ships in 2-12 days

0

95

Cub Cadet BS-94098

Screw-Throttle Valve Mounting Sem
(Superseded to BS-691636)

$3.99

$

In Stock, only 2 left!

0

98

Cub Cadet BS-398185

Screw-Idle Adjustment

$7.99

$

Usually ships in 2-12 days

0

98A

Cub Cadet BS-493280

Screw Ass'y.-Speed Adj.

$8.99

$

Usually ships in 2-12 days

0

104

Cub Cadet BS-231371

Pin-Float Hinge
(Superseded to BS-797622)

$3.99

$

In Stock, Qty 10

0

108

Cub Cadet BS-223471

Valve-Choke
(Superseded to BS-691182)

$9.49

$

Usually ships in 2-12 days

0

116

Gasket-Sealing

$

$

Not available

117

Jet

$

$

Not available

118

Cub Cadet BS-492945

Valve and Spring-Needle

$

$

Not available

124

Cub Cadet BS-94525

Screw-Carburetor Mtg.
(Superseded to BS-692524)

$

$

Not available

125

Cub Cadet BS-493265

Carburetor Assembly
(Superseded to BS-494217)

$

$

Not available

127

Plug-Welch

$

$

Not available

130

Cub Cadet BS-223470

Valve-Throttle

$

$

Not available

131

Cub Cadet BS-493267

Shaft and Lever-Throttle

$16.99

$

In Stock, only 4 left!

0

133

Cub Cadet BS-398187

Float Ass'y.-Carburetor

$9.99

$

In Stock, Qty 20+

0

134

Cub Cadet BS-398188

Valve-Inlet

Note: (Includes Seat)

$6.49

$

In Stock, Qty 20+

0

137

Gasket-Bowl

$

$

Not available

141

Cub Cadet BS-493266

Shaft-Choke

$

$

Not available

163

Cub Cadet BS-272257

Gasket-Air Cleaner

$

$

Not available

187

Cub Cadet BS-492790

Hose-Fuel
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

188

Cub Cadet BS-398540

Screw-Tank Mounting
(Superseded to BS-692311)

Note: (Includes Washer)

$7.49

$

In Stock, only 1 left!

0

201

Cub Cadet BS-262579

Link-Governor
(Superseded to BS-691829)

$8.49

$

Usually ships in 2-12 days

0

209

Cub Cadet BS-262659

Spring-Governor

$10.99

$

Usually ships in 2-12 days

0

265

Cub Cadet BS-213146

Clamp-Casing
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

267

Cub Cadet BS-94204

Screw-Clamp Mtg.

$

$

Not available

284

Cub Cadet BS-94511

Screw-Hex Head
(Superseded to BS-690940)

$3.99

$

In Stock, Qty 5

0

304

Cub Cadet BS-493293

Housing-Blower
(Superseded to BS-795071)

$102.99

$

In Stock, only 2 left!

0

305

Cub Cadet BS-94513

Screw-Hex Head Sem
(Superseded to BS-692198)

$5.99

$

In Stock, Qty 11

0

456

Cub Cadet BS-224321

Retainer-Rewind Starter

$8.99

$

In Stock, only 2 left!

0

459

Cub Cadet BS-492833

Pawl-Starter

$4.99

$

Usually ships in 2-12 days

0

461

Cub Cadet BS-262626

Pin-Starter

$4.49

$

Usually ships in 2-12 days

0

515

Cub Cadet BS-262556

Spring-Pawl
(Superseded to BS-492833)

$4.99

$

Usually ships in 2-12 days

0

515A

Cub Cadet BS-262625

Spring-Torsion

$6.49

$

Usually ships in 2-12 days

0

529

Cub Cadet BS-280943

Grommet-Breather

$8.49

$

In Stock, only 1 left!

0

601

Cub Cadet BS-93053

Clamp-Hose (Green)
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

608

Cub Cadet BS-493295

Starter Ass'y.-Rewind
(Superseded to BS-497598)

$75.99

$

In Stock, only 2 left!

0

617

Cub Cadet BS-270344

Seal-Fuel Intake Tube
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

618

Cub Cadet BS-260870

Spring-Choke Return

$2.99

$

In Stock, Qty 8

0

620

Cub Cadet BS-492978

Bracket Assembly-Carburetor Control

$

$

Not available

634

Washer-Throttle Shaft

$

$

Not available

634A

UNKNOWN

$

$

Not available

670

Cub Cadet BS-280512

Spacer-Fuel Tank
(Superseded to BS-692294)

$4.99

$

In Stock, Qty 5

0

949

Cub Cadet BS-280946

Guard-Finger

$23.99

$

Usually ships in 2-12 days

0

955

Cub Cadet BS-231373

Screw-Bowl Mtg.

$

$

Currently unavailable

957

Cub Cadet BS-493017

Cap Assembly-Fuel
(Superseded to BS-796577)

$16.99

$

In Stock, only 1 left!

0

958

Cub Cadet BS-493277

Valve-Fuel Shut-Off

$

$

Currently unavailable

966

Cub Cadet BS-492363

Base-Air Cleaner

$

$

Not available

967

Cub Cadet BS-491588

Filter-Air
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-280937

Cover-Air Cleaner
(Superseded to BS-692298)

$27.99

$

In Stock, only 1 left!

0

969

Cub Cadet BS-94120

Screw-Cover Mtg.
(Superseded to BS-690670)

$5.99

$

In Stock, Qty 5

0

971

Cub Cadet BS-94269

Screw-Air Cleaner

$

$

Not available

972

Cub Cadet BS-492858

Tank Assembly-Fuel
(Superseded to BS-699392)

$

$

Not available

975

Cub Cadet BS-398191

Bowl Assembly-Carburetor

$

$

Not available

1016

Cub Cadet BS-224278

Cover-Rewind Starter

$3.49

$

Usually ships in 2-12 days

0
