118-434R190 - White Outdoor Lawn Boss 21" Walk-Behind Mower (1988) Rotary Mower Parts Diagram

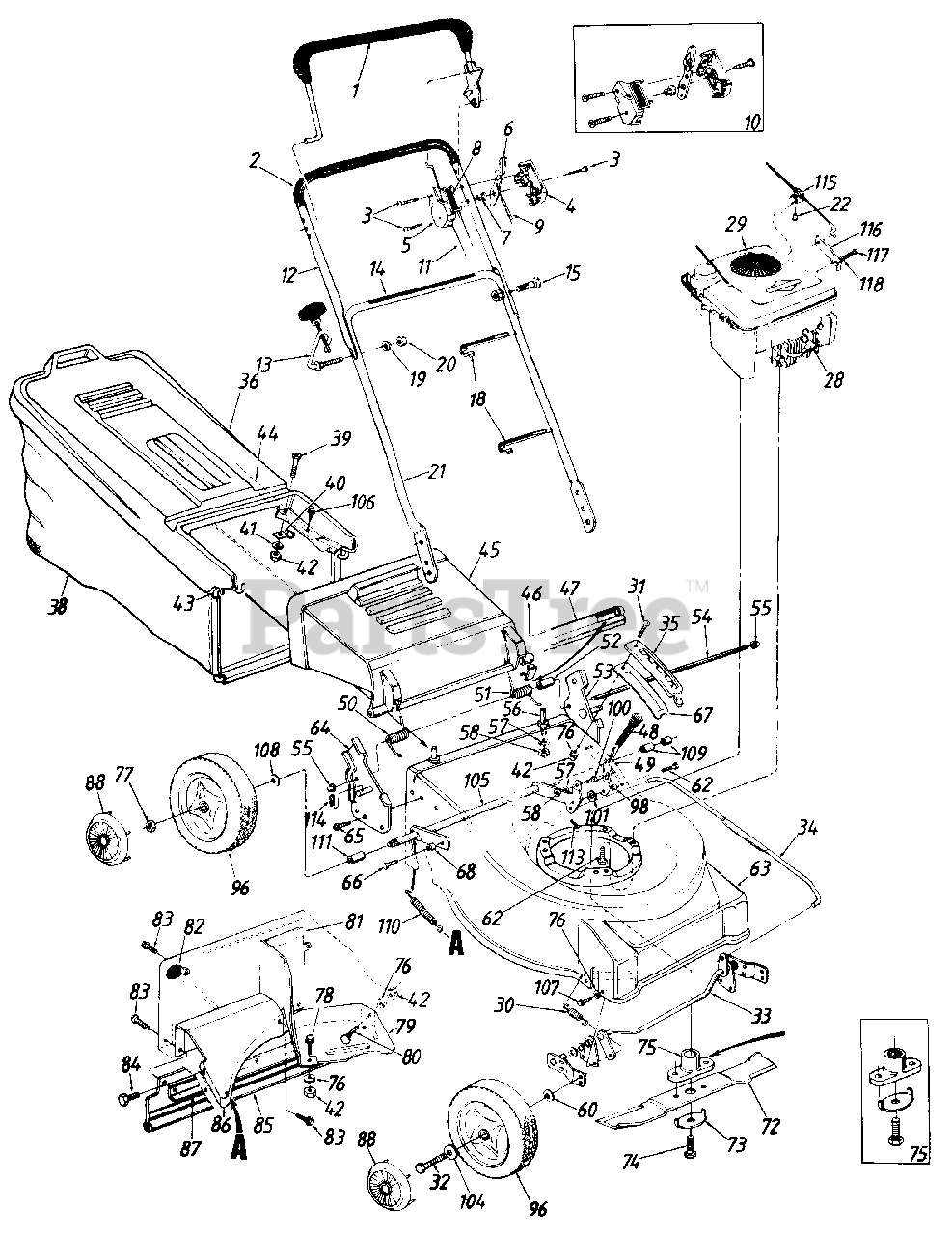

Lawn Boss 21" Walk-Behind Mower

Rotary Mower Parts Diagram

  • Title

1

MTD 731-0609

Control Handle Ass'y.

Note: NLA

$

$

Not available

2

MTD 720-0295

Grip

$33.99

$

Usually ships in 3-6 days

0

3

MTD 710-0796

Truss Mach. B-Tap Scr. #12 x 1.5" Lg.

$5.49

$

Usually ships in 3-6 days

0

4

MTD 731-0817A

Control Panel Half

$

$

Not available

5

MTD 731-0816

Clutch Panel Half

Note: NLA

$

$

Not available

6

MTD 931-0972

Throttle Control Lever

$9.99

$

In Stock, Qty 13

0

7

MTD 731-0524

Control Disc Pin

Note: NLA

$

$

Not available

8

MTD 777-5774

Control Label-Throttle

Note: NLA

$

$

Currently unavailable

9

MTD 946-0671A

Throttle Wire-53" Lg.

$14.99

$

In Stock, only 3 left!

0

10

MTD 753-0430

Control Housing Comp.

Note: NLA

$

$

Not available

11

MTD 946-0478A

Control Cable-46" Lg.

$

$

Not available

12

MTD 749-0438D-0637

Upper Handle

$

$

Not available

13

MTD 710-0842

Rope Guide Bolt

Note: NLA

$

$

Not available

14

MTD 777-5776

Instruction Label-Handle

Note: NLA

$

$

Currently unavailable

15

MTD 710-0671

Curved Carriage Bolt 5/16-18 x 1.38" Lg.

Note: NLA

$

$

Not available

18

MTD 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

19

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

20

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

MTD 749-0907B

Lower Handle

Variations

MTD 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

22

MTD 728-0171

POP Rivet 156" Dia. x .379"

$

$

Not available

28

MTD 735-0639

Spark Plug Boot

$

$

Not available

29

Engine

$

$

Not available

30

MTD 732-0589

Extension Spring 2.39" Lg.

Note: NLA

$

$

Not available

31

MTD 710-0946

Truss Mach. Scr. 1/4-20 x .62" Lg.

$3.99

$

Usually ships in 3-6 days

0

32

MTD 938-0102

Axle Bolt
(Superseded to 738-0102)

$

$

Not available

33

MTD 17022-0637

Front Axle Ass'y.

$136.99

$

Usually ships in 3-6 days

0

34

MTD 747-0699

Height Adj. Connecting Rod

Note: NLA

$

$

Not available

35

MTD 17323

Height Adjustment Plate

Note: NLA

$

$

Not available

36

MTD 631-0003

Hardtop Bag Cover

$104.99

$

Usually ships in 3-6 days

0

38

MTD 964-0252

Grass Bag

$143.99

$

In Stock, only 1 left!

0

39

MTD 710-0166A

Truss Mach. Scr. 1/4-20 x 1.0" Lg.

$7.49

$

In Stock, only 1 left!

0

40

MTD 12894

Hardtop Mounting Clip

Note: NLA

$

$

Not available

41

MTD 936-0463

Fl-Wash. .281" l.D. x .62' O.D.
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 20+

0

42

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

43

MTD 764-0411-0637

Front Catcher Frame

$41.99

$

Usually ships in 3-6 days

0

44

MTD 749-0736

Rear Catcher Frame

Note: NLA

$

$

Not available

45

MTD 931-0859A

Chute Deflector

$120.99

$

Usually ships in 3-6 days

0

46

MTD 731-0970B

Deflector Plug

$

$

Not available

47

MTD 731-0858

Seal-Extrusion

$

$

Not available

48

MTD 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

49

MTD 732-0580

Spring Lever

$7.99

$

In Stock, only 1 left!

0

50

MTD 732-0578B

Torsion Spring-R.H.

$

$

Not available

51

MTD 932-0577B

Torsion Spring-L.H.

$

$

Not available

52

MTD 750-0566A

Spacer .255" I.D.

$9.99

$

In Stock, only 1 left!

0

53

MTD 12297B-0637

Handle Brkt. Ass'y.-L.H.

$

$

Not available

54

MTD 747-0698B

Hinge Pin 17.75" Lg.

$

$

Not available

55

MTD 926-0106

Cap Speed Nut
(Superseded to 726-0106)

$

$

Not available

56

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

57

MTD 936-0169

L-Wash. 3/8" I.D.
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

58

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

60

MTD 736-0105

Bell-Wash. .38" l.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

62

MTD 710-0654A

Hex L-Wash. Hd. Scr. 3/8-16 x l" Lg.

$4.49

$

In Stock, Qty 20+

0

63

MTD 16997

21" Deck Ass'y.

Note: NLA

$

$

Currently unavailable

64

MTD 12296B-0637

Handle Brkt. Ass'y.-R.H.

$

$

Not available

65

MTD 910-0892

Hex L-Wash. Hd. AB-Tap Scr. 1/4 x.62" Lg.

$

$

Not available

66

MTD 910-1006

Hex Wash. Hd. Tap Scr. 3/8-16 x .75" Lg.

$

$

Not available

67

MTD 721-0216

Height Adjustment Support

Note: NLA

$

$

Not available

68

MTD 750-0526

Spacer .385" I.D.

$4.99

$

In Stock, only 1 left!

0

72

MTD 942-0621

21" Blade

$29.99

$

In Stock, only 1 left!

0

73

MTD 753-0525

Blade Bell-Wash. .44" I.D. x 2.38"

$

$

Not available

74

MTD 710-0757

Hex Bolt 7/16-20 x 1.5" Lg.

$9.99

$

In Stock, only 1 left!

0

75

MTD 753-0485

Blade Adapter Kit

$46.99

$

Usually ships in 3-6 days

0

76

MTD 936-0329

L-Wash. 1/4" l.D.

$4.49

$

In Stock, Qty 9

0

77

MTD 912-0346

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-0346)

$4.99

$

In Stock, Qty 6

0

78

MTD 710-3015

Hex Bolt 1/4-20 x .85" Lg.

$3.99

$

In Stock, Qty 20+

0

79

MTD 17013

Rear Belt Baffle

Note: NLA

$

$

Not available

80

MTD 710-0167

Carr. Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

81

MTD 17007-0637

Rear Panel Baffle

$

$

Not available

82

MTD 731-0931

Corner Plug

Note: NLA

$

$

Not available

83

MTD 710-1017

Torx Mach. AB-Tap Scr. 1/4 x .62" Lg.

$8.49

$

In Stock, Qty 9

0

84

MTD 710-0352

Hex B-Tap Scr. 1/4 x .38" Lg.

$4.99

$

Usually ships in 3-6 days

0

85

MTD 731-0669

Rear Flap

$50.99

$

Usually ships in 3-6 days

0

86

MTD 17008-0637

Rear Chute Baffle

$

$

Not available

87

MTD 14847-0637

Retaining Strip

$

$

Not available

88

MTD 731-0124

Hub Cap (8 x 1.75)

Note: NLA

$

$

Not available

88

MTD 731-0981C

Hub Cap (8 x 2)

$10.99

$

In Stock, only 2 left!

0

96

MTD 734-1260

Wheel Ass'y. (8 x 1.75)

Note: NLA

$

$

Not available

96

MTD 734-2004B

Wheel Ass'y. (8 x 2)
(Superseded to 753-08093)

$45.99

$

In Stock, Qty 5

0

98

MTD 750-0624

Shld. Spacer .50" Dia.

$

$

Not available

100

MTD 711-0805

Shld. Pin 3/8-24 x 1.43" Lg.

$

$

Not available

101

MTD 736-0258

Fl-Wash. .375" l.D. x 1.0"

$4.49

$

In Stock, only 4 left!

0

104

MTD 936-0160

Fl-Wash. .531" l.D. x .93"

$4.49

$

In Stock, only 1 left!

0

105

MTD 17031

Rear Axle Ass'y.

$

$

Not available

106

MTD 710-0896

Hex AB-Tap Scr. 1/4" x .62 Lg.

$4.49

$

In Stock, Qty 20+

0

107

MTD 710-0352

Hex L-Wash. HD AB-Tap Scr. 1/4 x.38" Lg.

$4.99

$

Usually ships in 3-6 days

0

108

MTD 936-0108

Fl-Wash. .510" l.D. x .75" O.D.

$6.99

$

In Stock, only 4 left!

0

109

MTD 911-0500

Spacer.526" l.D.

$

$

Not available

110

MTD 932-0481

Extension Spring 3.8" Lg.

$

$

Not available

111

MTD 911-0313

Sleeve.526n l.D.

$

$

Not available

113

MTD 914-0507

Cotter Pin 3/32" Dia. x .75"

$4.49

$

In Stock, Qty 17

0

114

MTD 914-0104

Internal Cotter Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

115

MTD 16703

Cable Mtg. Brkt.

Note: NLA

$

$

Not available

116

MTD 16704

Mounting Brkt.

Note: NLA

$

$

Currently unavailable

117

MTD 710-0473

Truss Mach. Scr. #10 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

118

MTD 936-0722

L-Wash. #10 I.D.
(Superseded to 736-0722)

$6.99

$

Usually ships in 3-6 days

0
